Quick Details
-
Nature:
-
IP Audio Video Streaming Encode
-
WiFi Module:
-
Optional
-
Encoder Decoder:
-
for Real Time IPTV
-
Compression:
-
H.264 Main Profile / H.264 High Profile and AAC audio
-
Protocol:
-
HLS/RTMP / RTSP / HTTP / UDP protocol
-
Input:
-
(SDI in/loopout+3.5mm)
-
Output:
-
TS over IP output
-
Audio Compression:
-
AAC , MP3
-
Resolution:
-
Support up to 720P, 1080P HD video input
-
Bitrate:
-
VBR/CBR
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
DIGICAST
-
Model Number:
-
DMB-8800N Classic (SDI IN )
-
Nature:
-
IP Audio Video Streaming Encode
-
WiFi Module:
-
Optional
-
Encoder Decoder:
-
for Real Time IPTV
-
Compression:
-
H.264 Main Profile / H.264 High Profile and AAC audio
-
Protocol:
-
HLS/RTMP / RTSP / HTTP / UDP protocol
-
Input:
-
(SDI in/loopout+3.5mm)
-
Output:
-
TS over IP output
-
Audio Compression:
-
AAC , MP3
-
Resolution:
-
Support up to 720P, 1080P HD video input
-
Bitrate:
-
VBR/CBR
OVERVIEW

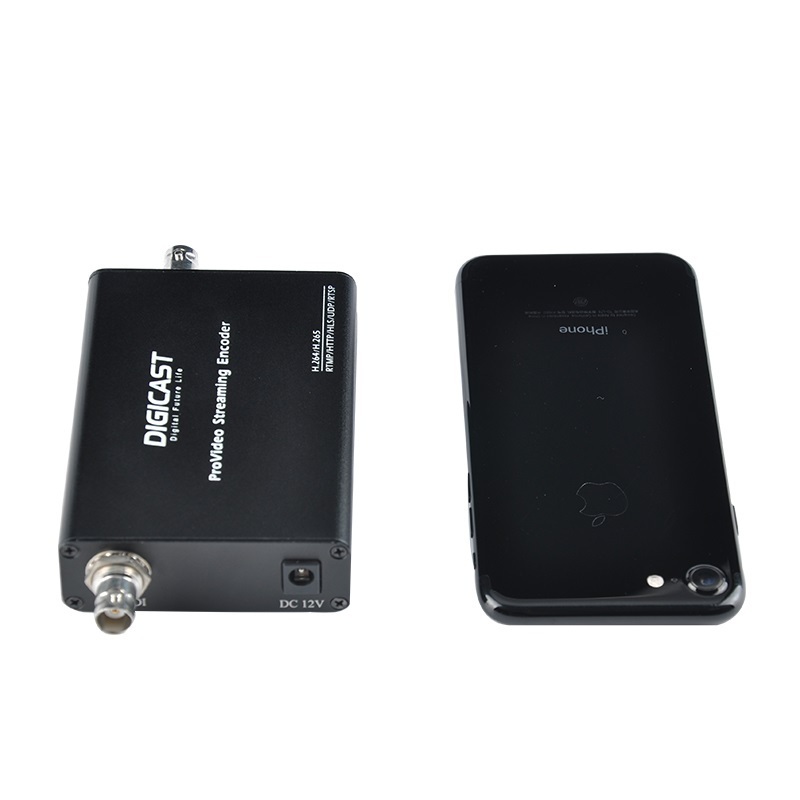

DMB-8800N/8900N Nano Real-Time IPTV Streaming Encoder (with built-in chargeable battery & WIFI as option) features high performance, low latency and low bit rates for IPTV/OTT systems, realized Video & Audio real-time transmission via internet, and adopts state-of-the-art compression technology of H.264/AVC and H.265/HEVC (Option), which realizes its resolution to be up to 1080P.
With powerful video pre-compression and efficient adaptive video compression algorithm, it is able to provide clear-delicate, high quality video even at lower bit rate which can efficiently save the cost of bandwidth.
Moreover, providing username, password matching function which required from destination server, in order to avoid the streaming which do not authorized. It can be applied to education, health care, IPTV & OTT,conference, remote education, news interview, court, public security, banking, transportation and other industry applications.
FEATURES
◇Abundant inputs for option:SDI,HD MI,CVBS,YPbPr,VGA
◆Up to 1080P@50/60fps with 4 TS over IP stream out
◇Support up to H.265 Main Profile/ High Profile and MP3 & AAC audio compression
◆Bitrate mode: CBR / VBR
◇Capable of image parameter settings
◆Switchable of audio output mode: Left, right and Stereo
◇Configurable of Multi-rate, Multi-resolution, Multi-protocol
◆Providing RTSP / HTTP / UDP,RTMP and HLS(m3u8) protocol
◇Support HDCP protocol
◆Any iOS browsers(iphone, ipad, MacBook etc) are able to have
streams from IPTV Streaming Encoder in Anytime, Anywhere by HLS
protocol without install any software players.
◇IPTV Streaming Server IP Video Cable TV Digital Encoder HD MI Encoder H.264 IPTV Encoder IPTV
Streaming Encoder directly by RTMP protocol with software players( such as VLC)
◆Support ONVIF Network Video Protocol
◇Providing user name, password matching function which required
from destination server
◆Support multiple equipments display at the same time on a computer
◇System supports WINDOWS XP / VISTA / SERVER2003 /
SERVER2008 / WIN7 32 and WIN7 64, LINUX
◆Web-based management
◇Full-duplex mode 1000M
◆Insertable of logo and Scroll Caption; Adjustable of audio gain
◇Support WIFI function with built-in chargeable battery for running up to
5 hours.
(The specific working time would be depended by the settings).
|
Specification
|
|
|
|
VIDEO SPECIFICATIONS
|
Video compression: H.264/AVC High Profile Level 4.0
Video inputs: 1*HD MI 1.3a version (support HDCP protocol)/CVBS/VGA/YPbPr Analog video input mode: PAL, NTSC |
|
|
|
Audio compression: AAC, MP3
Sampling rate: Adaptive, selectable of re-sample. Sampling accuracy: 24-bit Bit Rate:48000,64000,96000,128000,160000,192000,256000 Re-sample:32000,44100 |
|
|
OUTPUTS(IP output)
|
Transport protocol: TS over IP output, RTSP/HTTP/UDP or RTMP protocol
For HD MI to IP output, 4*TS over IP stream out(HTTP/RTSP/UDP or RTMP protocol) 2 Channels with higher resolution(up to 1080P) for large screen application, 2 channels with lower resolution(up to 720P) for small screen application) Connector: RJ45, 1000M |
|
|
Resolution
|
HD MI main stream:
1920x1080,1680x1056,1280x720,1024x576,850x480, 720x576,720x540,720x480,720x404,704x576,640x480, 640x360,auto HD MI sub-stream: 1280x720,800X450,720x576,720x540,720x480,720x404, 704x576,640x480,640x300,352X288,320X240,320X180, auto Bit-rate: 16kbps ~ 12Mbps, CBR/VBR Video pre-processing: Noise reduction, Sharpen, Filtering |
|
|
GENERAL OPTIONS
|
SYSTEM
Configuration Interface: Web-based management. Upgraded: via network
Connector: RJ45, 1000M Ethernet interface.
PHYSICAL AND POWER Voltage: AC220V±10%, 50/60 Hz Consumption: 80W Operating temperature: -20~80°C
Dimensions: 250mm(W)*250mm(D)*80mm(H)
Weight: 0.8kg/pc |
|
IPTV Streaming Server IP Video Cable TV Digital Encoder HD MI Encoder H.264 IPTV Encoder IPTV For WOWZA/FLASH/Youtube/Ustream
|
