Quick Details
-
Application:
-
Villa
-
Type:
-
Swing
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SINOMATIC
-
Model Number:
-
SW200DC
-
Power supply:
-
AC220V/110V±10% 50/60Hz
-
Max loading weight:
-
200kg/leaf
-
Motor power:
-
DC24V/30W
-
Max single left length:
-
2M
-
Remote control range:
-
≥30 m
-
Recording of up remotes:
-
32
-
Remote frequency:
-
433.92 Mhz
-
Work duty:
-
S2 30 min
-
Working Temperature:
-
-20℃~70℃
-
Gate moving speed:
-
18~22s/ 90°
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support, Free spare parts
-
Project Solution Capability:
-
graphic design, 3D model design, total solution for projects
-
Application:
-
Villa
-
Type:
-
Swing
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SINOMATIC
-
Model Number:
-
SW200DC
-
Power supply:
-
AC220V/110V±10% 50/60Hz
-
Max loading weight:
-
200kg/leaf
-
Motor power:
-
DC24V/30W
-
Max single left length:
-
2M
-
Remote control range:
-
≥30 m
-
Recording of up remotes:
-
32
-
Remote frequency:
-
433.92 Mhz
-
Work duty:
-
S2 30 min
-
Working Temperature:
-
-20℃~70℃
-
Gate moving speed:
-
18~22s/ 90°
Products Description

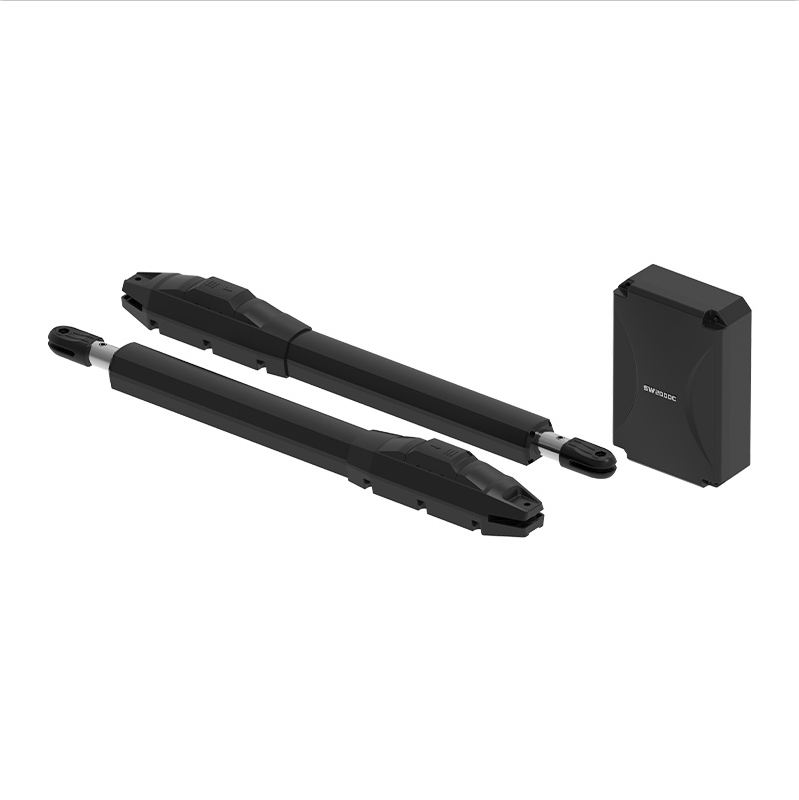

The SW200DC gate opener designed for residential courtyard swing gate use, gate leaf weight up to 200 Kg and width up to 2m, DC motor, compact structure, smooth operation and low noise.
Functions & Features
*DC Motor,support backup battery DC24V(4.5AH/9.0AH)
*Optional single/double gate mode
*No limit switch，stop in obstacle ,need gate block
**Automatic closing function with adjustable time(0~99S)
*Slow start and stop, smooth operation, no inertia
*Manual release design for emergency purpose
*Alarm lamp,photo beam&safety beam interface
*Support access control system to realize automatic identification and access control
*Optional single/double gate mode
*No limit switch，stop in obstacle ,need gate block
**Automatic closing function with adjustable time(0~99S)
*Slow start and stop, smooth operation, no inertia
*Manual release design for emergency purpose
*Alarm lamp,photo beam&safety beam interface
*Support access control system to realize automatic identification and access control
Product Specs
|
Model
|
SW200DC
|
|
Motor Power
|
DC 24V, 40W
|
|
Max. Single-leaf Weight
|
200KG
|
|
Max. Single-leaf Length
|
2M
|
|
Driving Method
|
Screw driving piston type
|
|
Limit Switch
|
Stop block
|
|
Working Temperature
|
-20ºC~70ºC
|
|
Gate Moving Speed
|
2cm/s
|
|
Power Supply
|
AC 110V/220V, 60Hz/50Hz
|
|
Gross Weight
|
14.5KG
|
|
Standard Configuration
|
2 motor, 1 control box with board, 2 remote transmitters, 1 release bar
|
|
Optional Accessories
|
Photocell, alarm wall lamp(20V/220V/110V), wireless keypad, wireless wall button, 20W solar panel, 9AH battery box with solar charger
|
Installation Instructions
Our Company
SHENZHEN SINOMATIC TECHNOLOGY CO, LIMITED, locates in Shenzhen China, is a high-tech enterprise integrating R&D, production and sales.
Main product lines include: Pedestrian access control turnstile, Vehicle barrier gate, hydraulic road bollard and blocker, Automatic gate operator etc.
Our products are widely used in places wherever access control is needed, such as government organs,
army, schools, hospital, airports, terminals, tourist attractions, parking lot.
So far, company products have been exported to more than 100 countries, like Italy, Germany, UK, Spain, Russia, Canada, Mexico, Brazil, UAE, India, Malaysia, Singapore, Thailand, South Africa, Nigeria, Kenya etc. Stable function and excellent performance is the product R&D purposes.
Offering most affordable price to customers is the product design concept. Our goal is to establish a win-win situation and long-term cooperation relationship with all our customers and partners.
