Quick Details
-
Brand Name:
-
Jiangxi Hengchang Mobile Diesel Gold Crusher
-
Dimension(L*W*H):
-
1320*820*1000mm
-
Weight:
-
380 KG
-
Marketing Type:
-
2023 Hot products
-
Name:
-
1-2 Tons Per Hour Mobile Diesel Gold Crusher
-
Max. Feeding size:
-
≤50mm
-
Output size:
-
0.1-12mm
-
Color:
-
Blue or as your request
-
Function:
-
Mining Crusher Equipment,Gold Ore Crusher,Stone Crusher
-
Driven:
-
Electric motor or diesel engine
-
Installation:
-
Engineer Guide
-
Factory visit:
-
Warmly Welcomed
-
Keyword:
-
Hammer Crusher Mill,Hammer Mill,Stone Crusher
-
Price:
-
Negotiation before order
Quick Details
-
Application:
-
Gold, mineral, stone, limestone, coal, gypsum etc
-
Capacity(t/h):
-
1-2 tph
-
Place of Origin:
-
Jiangxi, China
-
Brand Name:
-
Jiangxi Hengchang Mobile Diesel Gold Crusher
-
Dimension(L*W*H):
-
1320*820*1000mm
-
Weight:
-
380 KG
-
Marketing Type:
-
2023 Hot products
-
Name:
-
1-2 Tons Per Hour Mobile Diesel Gold Crusher
-
Max. Feeding size:
-
≤50mm
-
Output size:
-
0.1-12mm
-
Color:
-
Blue or as your request
-
Function:
-
Mining Crusher Equipment,Gold Ore Crusher,Stone Crusher
-
Driven:
-
Electric motor or diesel engine
-
Installation:
-
Engineer Guide
-
Factory visit:
-
Warmly Welcomed
-
Keyword:
-
Hammer Crusher Mill,Hammer Mill,Stone Crusher
-
Price:
-
Negotiation before order

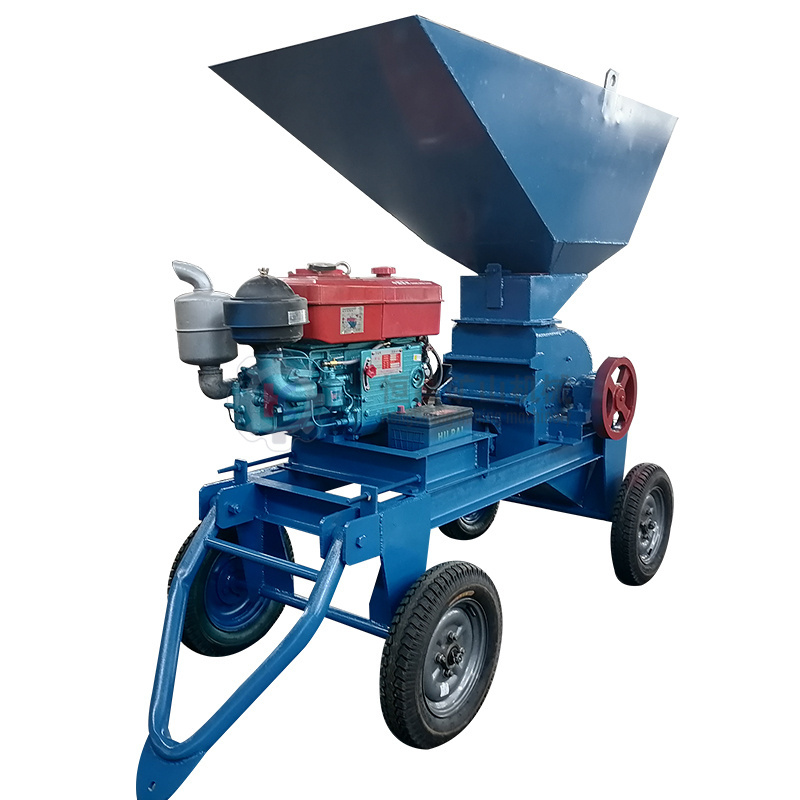

Low Price Coal Hammer Mill Machine Sand Hammer Crusher Quartz Quarry Crushing Plant 1-2 Tons Per Hour Mobile Diesel Gold Crusher
Jiangxi Hengchang Hammer mill is also called hammer crusher, hammer crusher mill, hammer grinder, stone crusher, It can be used for many minerals fine crushing,such as stone, rock, gold, copper, iron and zinc ore etc.
The hot sale models are 200×500, 300×500, 500×600 and 600×600 etc.
When you find us, you have find the best mining machinery manufacturers.
Products Description
Hammer mill
as one famous of gold ore crushing equipment, is able to crush the ores below 50mm or tailings and middlings that are not released completely.
it can crush the mineral particles to 0.1-3 mm (Discharge size: 0.1-3mm),
output materials could be concentrated by shaking table in the next process.
If the working site is short of electricity, It can also drive by diesel engine.
Widely Applications
Hammer mill is mainly used for crushing various soft and medium-hard ore, whose compression strength is not higher than 320 Mpa, such as coal, salt, chalk, gypsum, blocks, limestone, glasses, and phosphate etc.
Prodcut Working Principle
Hammer mill crusher is essentially a steel drum containing a vertical or horizontal rotating shaft or drum on which hammers are mounted. The hammers are free to swing on the ends of the cross, or fixed to the central rotor. The rotor is spun at a high speed inside the drum while material is fed into a feed hopper. The material is impacted by the hammer bars and is thereby shredded and expelled through screens in the drum of a selected size.
Product Features
1).
Easy to operate, no training required.
2). No-board connection; The blow bar with high chrome (high chromed blow bar).
3). Impact plate with a special shape.
4). Crushed product with cubical shape.
5). Low Investment and easy maintenance .
6). High reduction ratio and crushing efficiency.
2). No-board connection; The blow bar with high chrome (high chromed blow bar).
3). Impact plate with a special shape.
4). Crushed product with cubical shape.
5). Low Investment and easy maintenance .
6). High reduction ratio and crushing efficiency.
Product Paramenters
|
Model
|
Capacity
(t/h)
|
Max Feeding Size
(mm)
|
Output Size
(mm)
|
Hammers
(pcs)
|
Motor
(kw)
|
|
200×500
|
1-2
|
≤50
|
0.1-12
|
6
|
5.5
|
|
300×500
|
1.5-3
|
≤50
|
0.1-12
|
8
|
11
|
|
400×500
|
3-6
|
≤60
|
0.1-12
|
10
|
15
|
|
400×600
|
4-8
|
≤80
|
0.1-12
|
10
|
22
|
|
500×600
|
5-10
|
≤100
|
0.1-12
|
12
|
30
|
|
600×600
|
12-20
|
≤150
|
0.1-12
|
20
|
37
|
Packing & Delivery
