Quick Details
-
Resistance:
-
1K ohm-100K ohm, 50Ω~2MΩ
-
Resistance Tolerance:
-
±5%, ±10%
-
Rated Power:
-
2W, 0.25W
-
Max. Operating Voltage:
-
450V, DC315V
-
Operating Temperature:
-
55 ~+125, -10°C~+85°C
-
Color:
-
-
product:
-

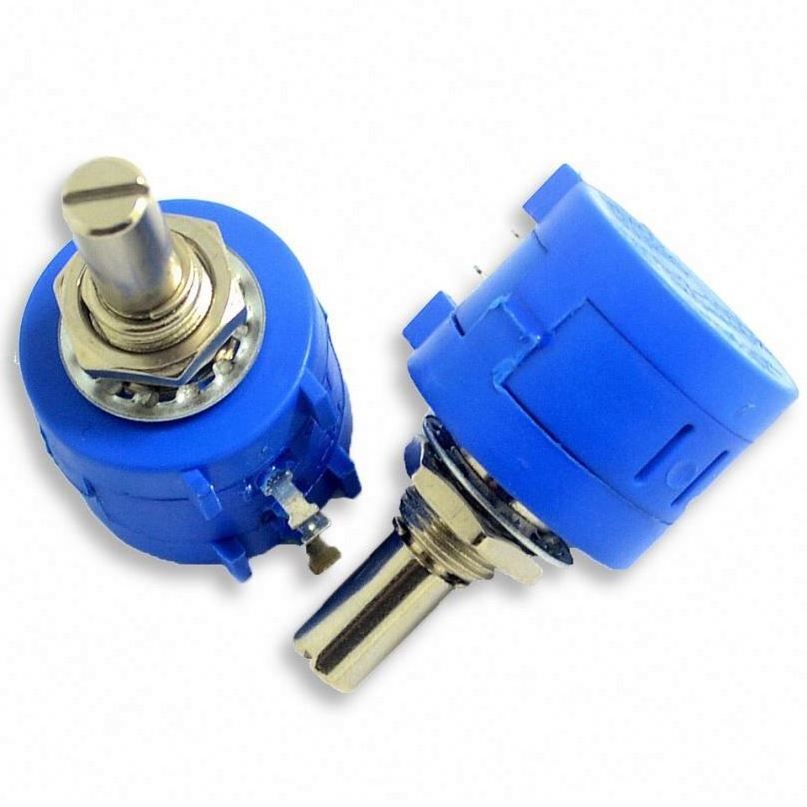

Potentiometer 3590S
-
Description:
-
trimpot
-
Power (Watts):
-
0.5W
-
Mounting Type:
-
PCB Mounting
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
original brand
-
Model Number:
-
3590S 1K
-
Resistance:
-
1K ohm-100K ohm, 50Ω~2MΩ
-
Resistance Tolerance:
-
±5%, ±10%
-
Rated Power:
-
2W, 0.25W
-
Max. Operating Voltage:
-
450V, DC315V
-
Operating Temperature:
-
55 ~+125, -10°C~+85°C
-
Color:
-
-
product:
-
Potentiometer 3590S
-
Description:
-
trimpot
-
Power (Watts):
-
0.5W
-
Mounting Type:
-
PCB Mounting
Product Description
Description:
Shaft diameter: 6.35mm
Open hold size: 9.35mm
Type: 1K 2K 5K 10K 20K 50K 100K (Optional)
Quantity: 1pc
Type: 1K 2K 5K 10K 20K 50K 100K (Optional)
Quantity: 1pc
Parameter:
Ohms: 100~100K
Resistance deviation: ±5%
Resistance change characteristics: B
Insulation resistance: 1GΩ
Withstanding voltage: 101.3Kpa 710V, 8.5Kpa 470V
Termination resistance: ≤0.2%R or 5Ω
Change in contact resistance: ≤2%R or 5Ω
Effective electrical stroke: 3600°± 10°
Rotational life: 1,000,000 times
Environmental characteristics:
Rated power (maximum operating voltage 300V): 2W (70°C)
Operating temperature range: -55°C ~+125°C
Noise: 100mv Max
Collision: 390m/s2, 4000uqw, R≤±1%R
Temperature coefficient: ≤±50X 10-6/°C (-55°C~+125°C)
Vibration: 10~500Hz, 0.75mm, 6h R≤±(1%R+0.1Ω)
Climatic sequence: R≤±3%R, R1≥100MΩ 70°C
Electrical durability: R≤±(3%R+0.5Ω)
Physical characteristics:
Starting torque: ≤36mN•m
Stop torque: ≥300 mN•m
Package Included:
1 x Potentiometer
1 x Potentiometer
