Quick Details
-
Place of Origin:
-
Jiangsu, China
-
product name:
-

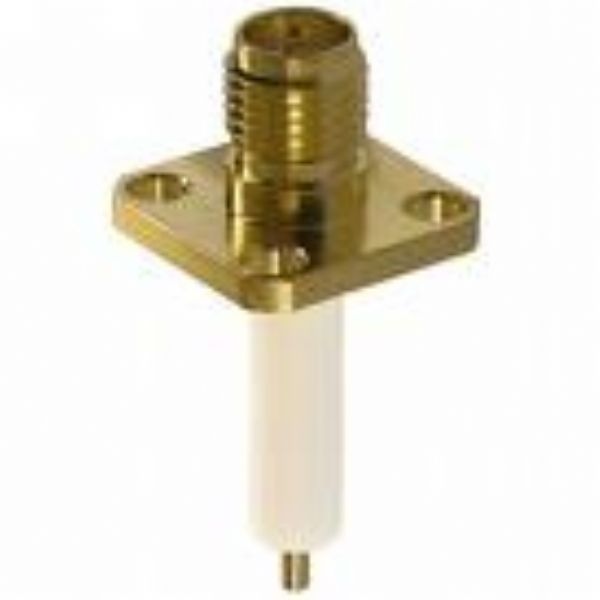

SMA RF cable connector
-
Temperature Range:
-
-55℃~+155℃PE Cable -40℃~+85℃
-
Frequency Range:
-
DC ~12.4 GHz
-
Impedance:
-
50 Ω
-
Working Voltage:
-
335 V r.m.s , at sea level
-
Vibration:
-
100 m/S2 (10-~500Hz), 10g
-
Salt spray teste:
-
5% NaCl solution; test time≥48h
-
Waterproof Sealing:
-
IP67
-
Withstanding Voltage:
-
1000 V r.m.s,at level sea
-
Insertion Loss:
-
≥0.15dB/6GHz
Quick Details
-
Type:
-
Sma
-
Application:
-
RF
-
Gender:
-
Female
-
Place of Origin:
-
Jiangsu, China
-
product name:
-
SMA RF cable connector
-
Temperature Range:
-
-55℃~+155℃PE Cable -40℃~+85℃
-
Frequency Range:
-
DC ~12.4 GHz
-
Impedance:
-
50 Ω
-
Working Voltage:
-
335 V r.m.s , at sea level
-
Vibration:
-
100 m/S2 (10-~500Hz), 10g
-
Salt spray teste:
-
5% NaCl solution; test time≥48h
-
Waterproof Sealing:
-
IP67
-
Withstanding Voltage:
-
1000 V r.m.s,at level sea
-
Insertion Loss:
-
≥0.15dB/6GHz
SMA series are popular 50 ohms RF connectors, using a threaded interface, providing reliable and excellent electrical performance in high frequencies. They are widely used in aero and aero space, military weapons, wireless network, and microwave devices or data communication. They also attach semi-flex or semi-rigid cables working up to 18GHz.
ENVIRONMENTAL CONDITIONS
| Temperature Range |
-55℃~+155℃ PE Cable -40 ℃ ~ +85 ℃ |
| Frequency Range | DC ~ 12.4 GHz ( semi-rigid cable to 18 GHz ) idi-language:AR-SA'>℃ ~ +85 ℃ |
| Impedance | 50 Ω |
| Working Voltage | 335 V r.m.s , at sea level |
| Vibration | 100 m /S2 (10- ~ 500Hz), 10g |
| Salt spray test e | 5% NaCl solution; test time ≥ 48h |
| Waterproof Sealing | IP67 |
TECHNICAL CHARACTERISTICS
| Withstanding Voltage | 1000 V r.m.s,at level sea |
| Contact Resistance | |
| Center contact | ≤3.0 MΩ |
| Outer contact |
≤2.5 MΩ
|
| Insulation Resistance | ≥5000 MΩ |
| Center Conductor Retention Force | ≥0.28 N |
| Coupling nut retention Force | ≥180 N |
| Insertion Loss | ≥0.15dB/6GHz |
| V.S.W.R | |
| Straight |
Flexible cable≤1.10+0.02f Semi-rigid cable≤1.07+0.01f |
| Right angle |
Flexible cable≤1.20+0.03f
Semi-rigid cable≤1.17+0.02f |
| Shielding power | ≥100dB/3GHz |
| Average power | =0.3KW/3GHz |
| Durability(matings) | ≥500 |
TDRF product will be re-inspection in the factory line before packed.
Every TDRF product is carefully packed by palastic bag and carton outside.
- 1. Item will be shipped within 1-5 business days .
- 2. Delivery Time:
- ----Via Express: Generally 3-7 working days.
- ----Via Air Mail: Generally 1-3 working days.
- 3. We accept the mode of payment :Paypal ,West Union and T/T.
- 4.If you have not received your shipment within 30 days from payment,Please contact with us,We will track the shipment and get back to you as soon as possible with a reply .
1.7 days returns,365 days replace
2.Not satisfied can return
3.We undertake any quality problem
4.We undertake any risk problem
5.Order amount above $10000,you can get free samples of new products in our company
