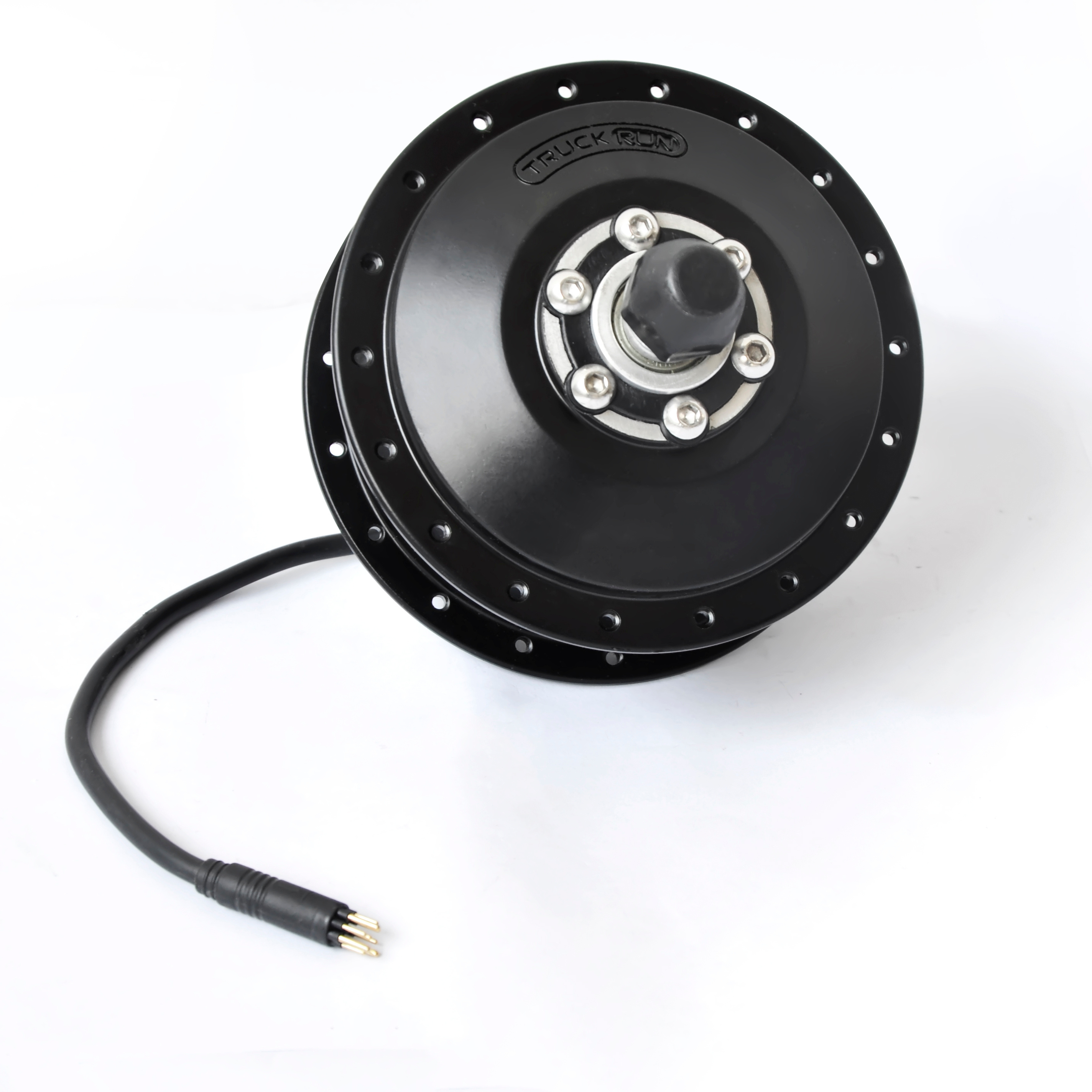

250-500W 24-48V Brushless Direct Drive Hub Motor 48v 500w For Hub Motor E Bike
250-500W 24-48V Brushless Direct Drive Hub Motor 48v 500w For Hub Motor E Bike
250-500W 24-48V Brushless Direct Drive Hub Motor 48v 500w For Hub Motor E Bike
250-500W 24-48V Brushless Direct Drive Hub Motor 48v 500w For Hub Motor E Bike
250-500W 24-48V Brushless Direct Drive Hub Motor 48v 500w For Hub Motor E Bike
250-500W 24-48V Brushless Direct Drive Hub Motor 48v 500w For Hub Motor E Bike
250-500W 24-48V Brushless Direct Drive Hub Motor 48v 500w For Hub Motor E Bike
250-500W 24-48V Brushless Direct Drive Hub Motor 48v 500w For Hub Motor E Bike

250-500W 24-48V Brushless Direct Drive Hub Motor 48v 500w For Hub Motor E Bike

FOB Reference Price: Get Latest Price
≥1 Sets
US $54
≥50 Sets
US $46
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Model Number:
RW12
Brand Name:
Truckrun
Product name:
RW12
Rated Power:
250-500W
Max Rotational Speed(RPM):
300
Rated Efficiency(%):
>79%
Magnet Poles:
20
Raduction Ratio:
1:5
Weight:
3.4KG
OLD:
142-160mm
Cabling Route:
Shaft End

Quick Details

Voltage:
24-48V
Style:
ebike
Place of Origin:
China
Model Number:
RW12
Brand Name:
Truckrun
Product name:
RW12
Rated Power:
250-500W
Max Rotational Speed(RPM):
300
Rated Efficiency(%):
>79%
Magnet Poles:
20
Raduction Ratio:
1:5
Weight:
3.4KG
OLD:
142-160mm
Cabling Route:
Shaft End
Products Description
Product Superiority
1. Simple and convenient maintenance and long maintenance period; 2. There is no mechanical commutator inside to prevent dust from
entering the motor and the reliability is high;
3. The overload capability is strong, which satisfies the need of the vehicle's protruding blockage, and the motor rotor has a
high permanent magnetic field;
4. Excellent starting performance, no hysteresis damping consumption kinetic energy, strong torque climbing ability;
5. High work efficiency, low power consumption and long mileage;
6. Excellent waterproof performance;
7. There are many driving methods to meet most loading requirements in the market;
8. Low cost and good economy;
9. Low noise and reliable operation.
Electric bicycle accessories
Trunkrun, with research and development and innovation as its vitality, was born to help change cycling.
specification
Model
ALL
General Para
type of display
LCD-TFT
Adapltive Voltage
24V/36V/48V
Protocal
UART
support gear
0~3/0~5/0~9
Color
Black
cables
5Pin
Test and certification
Ingress protection
IP65
certification
CE、ROHS、EN15194
Main Features
1. Brushless, long life (bearing life), maintenance free;
2. The motor has no mechanical commutator to prevent dust from entering
the motor and has high reliability;
3. Large power and simple structure;
4. Excellent starting performance, no hysteresis damping
consumption kinetic energy, strong torque climbing ability;
5. High efficiency, low power consumption, and relatively long mileage;
6. High performance price ratio;
7. Excellent waterproof performance.
Parameter of Rear Motor RW12
Model
RW12
Spoke Size
12G/13G
Installation Position
Rear
Internal Speed-sensor
Optional
Voltage(V )
24-48
Hall-sensor
Optional
Rated Power(W)
250-500
Connector
Optional
Max Ratation Speed(rpm)
300
Freewheel
Thread on Freewheel
Rated Efficiency(%)
>80%
Max Outside Diameter
Φ158.8
Magnet Poles
20
Surface Treatment
Optional
Reduction Ratio
1:5
Noice-grade(dB)
<55
Weight(Kg)
3.4
Salt Spary(h)
96
Install Location Width(mm)
142-160
Ingress Protection
IP54
Cabling Route
Shaft End
Certification
CE、ROHS
