Quick Details
-
Mechanical Life:
-
50000 Cycles
-
Function:
-
On-off/ON-ON/ON-OFF-ON
-
Rating:
-
16A 250VAC / 20A 125VAC/6A 250VAC
-
Application:
-
Electric Equipment
-
Color:
-
Red Yellow Green Blue White
-
Led color:
-
Red Indicator Light White Backlight
-
Housing color:
-
Black\White\Customized
-
Material:
-
PA66
-
Voltage:
-
125VAC/250VAC
-
Terminal type:
-
Pin Terminals
-
Operating temperature:
-
25 ~+85
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ANHEDA
-
Model Number:
-
ROCKER SWITCH SSS
-
Mechanical Life:
-
50000 Cycles
-
Function:
-
On-off/ON-ON/ON-OFF-ON
-
Rating:
-
16A 250VAC / 20A 125VAC/6A 250VAC
-
Application:
-
Electric Equipment
-
Color:
-
Red Yellow Green Blue White
-
Led color:
-
Red Indicator Light White Backlight
-
Housing color:
-
Black\White\Customized
-
Material:
-
PA66
-
Voltage:
-
125VAC/250VAC
-
Terminal type:
-
Pin Terminals
-
Operating temperature:
-
25 ~+85

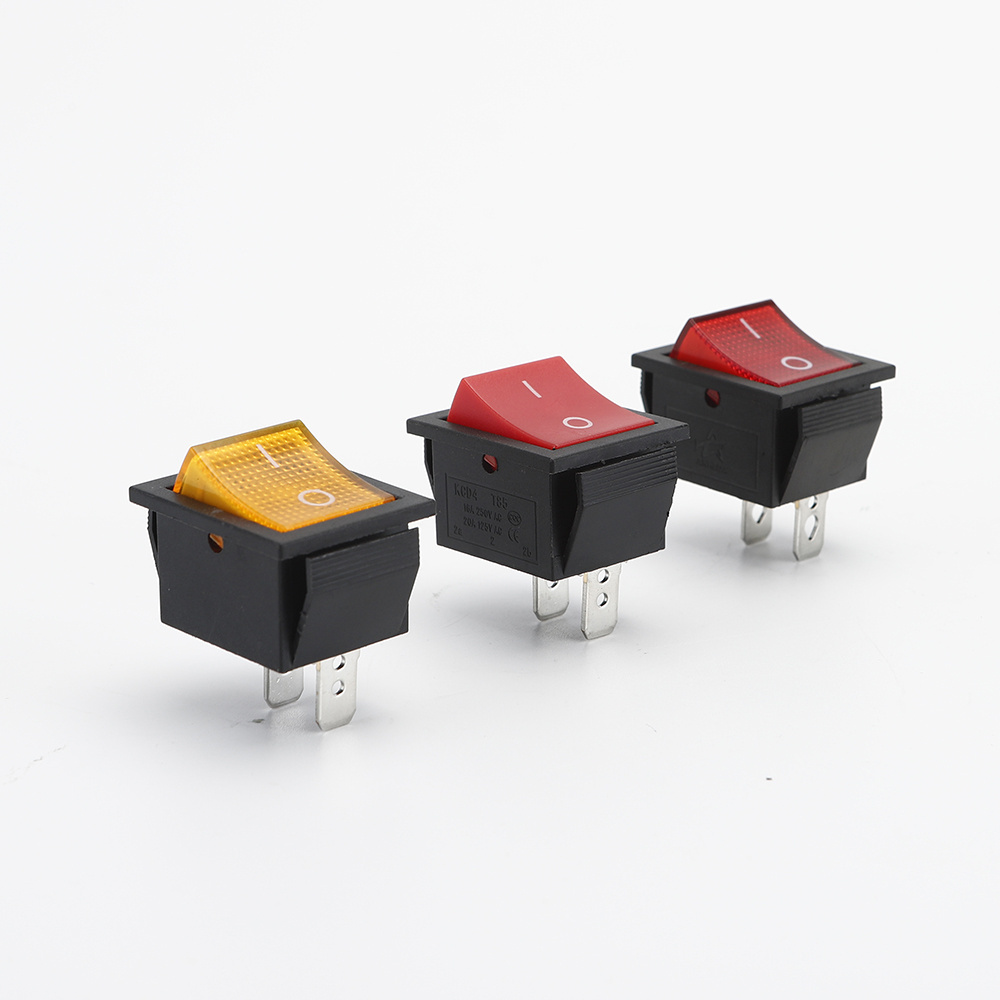

Factory Direct NO Rocker Switch Panel For Marine Boat Car, 10A 125VAC
Product details
| Product type | electric rocker switch |
| Function | ON OFF, ON ON, ON OFF ON |
| Certificate | CQC. Rohs. CE |
| Lamp color | Red,Yellow, Blue, Orange |
| Material | PA66/PC |
| Housing color | Black, White, Gary, Red,Yellow |
| Rating | 6A 250VAC / 10A 125VAC;16A 250VAC / 20A 125VAC |
| Led color | Red, Green, Yellow, Orange |
| Pins | 2,3,4,6 |
| Life | ≥10,000 cycles |
| Product Keywords | rocker switch elcom,rocker switch edmonton,rocker switch ebay |
Features:
1) We have CE,RoHS,CQC for rocker switch.
2) Switch electrical lifetime above 10,000 cycles.
3) R & D team for Automation, mould & new product.
4) Automation systems.
5) Mould developing systerms.
6) New item developing according to your samples or drawings.
Quality assurance:
IQC, IPQC, PQC, OQC. Inspect for supplied material, production process and final product, including withstand voltage, insulating resistance, conductor, dimension, external appearance, etc. All elated raw materials are inspected as Rohs requires.
| Specification of Rocker Switch | |||
| Rating | 6A/250V AC, 10A/125V AC; 16A/250V AC, 20A/125V AC | ||
| Rated Load | 2/8A 250V AC | ||
| Contact Resistance | ≤50MΩ | ||
| Dielectric Intensity | ≥1500V AC/min | ||
| Withstand Voltage | 1500V AC/min | ||
| Temperature | -25~85°C | ||
| Insulation Resistance | ≥100MΩ | ||
| Life | ≥10,000 cycles | ||
| Pins | 2/3/4/6 | ||
| Function | ON-OFF/ON-ON/ON-OFF-ON | ||
| Illumniated | 220V Neon Lamp | ||
| APPROVALS | |||
| CE | CQC | Rohs | |
Detailed Images
| Part | Material |
| Base Plastic | Nylon |
| Button Plastic | PA66/ PC |
| Terminal | Brass(tin plated) |
| Contact | Compound silver/ Copper |
| Spring | Tungsten steel |
| Waterproof Cap | PVC ( If you required) |
| Mount | Snap in |
Application:Small household products, communication equipment, energy generator, electric tools, table lamp, electric motor, electric motor car, electric toy, UPS, medical facilities, socket, etc |
|
| Terminal Type | ||||||||
| A | 4.8*0.8 |
|
G | 6.3*0.8 |
|
M | 2.5*0.5 | |
| B | 4.8*0.8 | H | 6*0.8 | N | 5.6*0.5 | |||
| C | 3*0.8 | I | 3.8*0.8 | P | 2.8*0.5 | |||
| D | PC | J | 2.7*0.5 | |||||
| E | PC | K | 6.3*0.8 | |||||
| F | 6.3*0.8 | L | ||||||
