- Product Details
- {{item.text}}
Quick Details
-
Ink Type:
-
environmentally friendly water-based
-
Place of Origin:
-
China
-
Brand Name:
-
Faith
-
Voltage:
-
AC110/AC220V,50HZ/60HZ
-
Dimensions(L*W*H):
-
200*80*150cm
-
Weight:
-
230 KG
-
Marketing Type:
-
New Product 2023
-
Printing precision:
-
1200*300 DPI/1200*600 DPI/1200*1200 DPI
-
Print Head Type:
-
Industrial grade thermal foaming print head
-
print mode:
-
Sketch/HD/Ultra HD
-
Maximum medium thickness:
-
0- 110mm
-
Print media:
-
Water absorbing material
-
Ink color:
-
C/M/Y/K
-
Image format:
-
JPG,BMP,TIFF
-
operating system:
-
Win7/Win10/Win11
-
Language interface:
-
Chinese/English (any other language can be customized)
-
Printing speed:
-
0-48m/min adjustable/0-24m/min adjustable/0-12m/min adjustable
Quick Details
-
Print Dimension:
-
customizable, 218-2970mm
-
Condition:
-
New
-
Color & Page:
-
Multicolor
-
Ink Type:
-
environmentally friendly water-based
-
Place of Origin:
-
China
-
Brand Name:
-
Faith
-
Voltage:
-
AC110/AC220V,50HZ/60HZ
-
Dimensions(L*W*H):
-
200*80*150cm
-
Weight:
-
230 KG
-
Marketing Type:
-
New Product 2023
-
Printing precision:
-
1200*300 DPI/1200*600 DPI/1200*1200 DPI
-
Print Head Type:
-
Industrial grade thermal foaming print head
-
print mode:
-
Sketch/HD/Ultra HD
-
Maximum medium thickness:
-
0- 110mm
-
Print media:
-
Water absorbing material
-
Ink color:
-
C/M/Y/K
-
Image format:
-
JPG,BMP,TIFF
-
operating system:
-
Win7/Win10/Win11
-
Language interface:
-
Chinese/English (any other language can be customized)
-
Printing speed:
-
0-48m/min adjustable/0-24m/min adjustable/0-12m/min adjustable
Hot Selling Products
Product Description

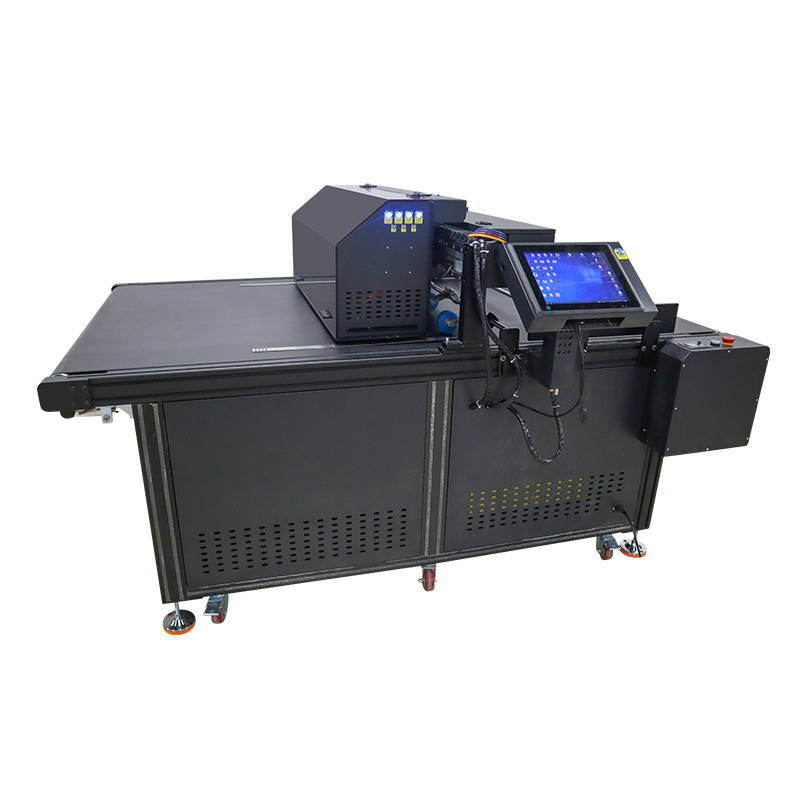

Onepass Carton machine
Super high speed printing
High intelligent positioning
Low cost consumables
Smart Feather Mode
Rich software for printing edge feathering,
automatic correction of step errors, skip white
, and more Function; Intelligent feathering mode, providing three reset modes and custom modes to choose from.
Print directly to thick media
Not only on paper media, but also on thick media for direct printing. Being able to print directly on media with a thickness of up to
10cm
can expand various printing businesses.
Application
Water-based ink is used on water absorbing material, such as on carton, corrugated box, pizza box, non-woven fabric, sack, handbag, canvas bag, cotton bag, wood board, paper, disposable paper cup, egg box, etc.
Ink type
There are two kinds of water-based ink, one is water-based pigment ink, the other is Water-based dye ink. The two are very different.
Water-based pigment ink
Waterborne pigment ink, with certain waterproof functions,
UV resistant, not easily fading, and stored for a long time.
UV resistant, not easily fading, and stored for a long time.
Water Dye ink
Water-based dyes are not UV resistant, waterproof, and will fade over time.
These two inks are selected according to different your needs.
If you require the ink to be waterproof, and want to keep it for a long time, then choose water-based pigment ink.
If you do not require the ink to be waterproof, and just want to keep it a short time,then choose water-based dye ink.
If you do not require the ink to be waterproof, and just want to keep it a short time,then choose water-based dye ink.
One liter ink can print 60,000 pieces of A4 paper with 5% coverage
Product Details
|
Core hardware configuration
|
|
|
|
Printing system control circuit board
|
Core processor：Adopting the internationally renowned American brand
Xilinx
industrial grade processor chip;
Core storage module：Adopting internationally renowned brand American Micron DDR4 memory chip; Data transmission module：Adopting internationally renowned American microchip MICROCHIP gigabit network industrial grade chips; |
|
|
Power module
|
Adopting internationally renowned brand Taiwan
Mingwei
power module
|
|
|
Signal transmission module
|
Using
gigabit network cables
to transmit and print, ensuring the
stability and timeliness
of big data signal transmission;
|
|
|
Machine frame structure
|
Adopting internationally recognized European standard industrial grade,
high-strength alloy profiles
to ensure the stability of the machine architecture;
|
|
|
Fasteners for various parts of the machine
|
Adopting
12.9
grade high-strength and industrial grade accessories to ensure the stability of various connecting parts of the machine
|
|
Core software configuration
Independently developed with stable performance
Exclusive customized color
management software
management software
Thickness of Print Medium
0-110 mm. The print head can move upward and downward to meet different printing thickness
Product packaging
Packaging size and weight
Different equipment models come in different sizes and weights. Taking a machine with a conveyor belt width of 800mm and a conveyor belt length of 2000mm as an example, the packaging size is 215 * 115 * 105 centimeters. The weight is approximately 350 kilograms.
