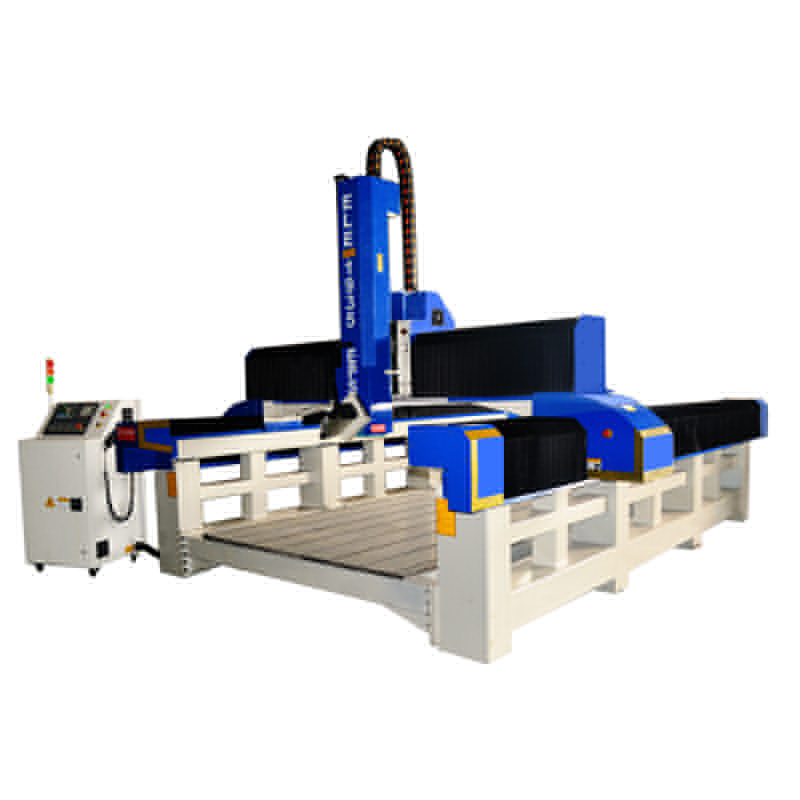

1935 Styrofoam 4 Axis Cnc Wood Router Metal Mould Cnc Router for Sale

1935 Styrofoam 4 Axis Cnc Wood Router Metal Mould Cnc Router for Sale

FOB Reference Price: Get Latest Price

≥1 Sets

US $7000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Travel (X Axis)(mm):: 1900 mm

Travel (Y Axis)(mm):: 3500 mm

Repeatability (X/Y/Z) (mm):: 0.05 mm

Place of Origin:: Shandong, China

Brand Name:: BLUE ELEPHANT

Voltage:: AC380V,3 ph/50HZ(option:220v)

Dimension(L*W*H):: 1900x3500x800 mm*±100°

Weight (KG):: 1500

After Warranty Service:: Video technical support

Spindle:: Italy HSD air cooling spindle

Spindle speed:: 0-18000RPM

Driver:: Yaskawa Driver

Inverter:: 5.5 kw Taiwan Delta Inverter

Reducer:: Japan Shimpo reducer

orbit:: Taiwan HIWIN linear guide

Collet:: ER30

Quick Details

Working Table Size(mm):: 1900*3500

Machine Type:: CNC Router

Positioning Accuracy (mm):: 0.05 mm

Travel (X Axis)(mm):: 1900 mm

Travel (Y Axis)(mm):: 3500 mm

Repeatability (X/Y/Z) (mm):: 0.05 mm

Place of Origin:: Shandong, China

Brand Name:: BLUE ELEPHANT

Voltage:: AC380V,3 ph/50HZ(option:220v)

Dimension(L*W*H):: 1900x3500x800 mm*±100°

Weight (KG):: 1500

After Warranty Service:: Video technical support

Spindle:: Italy HSD air cooling spindle

Spindle speed:: 0-18000RPM

Driver:: Yaskawa Driver

Inverter:: 5.5 kw Taiwan Delta Inverter

Reducer:: Japan Shimpo reducer

orbit:: Taiwan HIWIN linear guide

Collet:: ER30

Hot Sale Cnc Router

1935 Styrofoam 4 Axis Cnc Wood Router Metal Mould Cnc Router for Sale

Video on youtube : https://www.youtube.com/watch?v=zKaDRKbTGdQ

Product Description

Advantages

Self-lubricating, life-long maintenance-free Taiwan guide rail.

Italian high-speed spindle, with top speed of 18000rpm, guaranteering maximum processing efficiency and productivity.

Whole working table cast by resin sand. The annealing and other heat treatment methods ensure that the whole structure is tested to the limit for sturdiness and reliability.

Taiwan controller reads the codes in an efficient manner. Online simulation and monitoring function are available. Processing efficiency and safety are guaranteed.

Product Details

Parameters

Description	Parameter
X,Y,Z Working Area	1900x3500x800 mm*±100°
Effective working area	2860x3500x1450 mm
X,Y,Z Traveling Positioning Accuracy	±0.01/300mm
X,Y,Z Repositioning Accuracy:	±0.01mm
Table Surface	T-slot Table
Frame	Divided structure bed structure ,Fixing with screws
X,Y Structure	Helical rack gear , 4pcs HIWIN #35 Linear guide
Z Structure	TBI ball screw,4 pcs slider
Max. Power Consumption	(Without Spindle) 6Kw
Max. Rapid Travel Rate	40000mm/min
Max. Working Speed	30000mm/min
Spindle Power	HSD spindle 4.5kw
Spindle Speed	0-18000RPM
Drive Motors	Japan 850W YASKAWA servo
Working Voltage	AC380V/50/60Hz,3PH (Option: 220V))
Command Language	G Code
Operating System	SYNTEC Control System 6MB
Computer Interface	USB
Flash Memory	512M
Collet	ER30
X,Y Resolution	<0.01mm
Software Compatibility	UG , Power mill
Running Environment Temperature	0 - 45 Centigrade
Relative Humidity	30% - 75%

PS: All the working area and specifications can be customized according to your requests.

Application

1. Wood Furniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.

2. Advertising Industry: Advertising identification, sigh making, Acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.

3. Die Industry : A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.

Packaging & Delivery

Packaging Details:

1. Outside package: Standard marine export plywood case.

2. inner package: Stretchy film and plastic film for humidity.

3. We can package according to your requests.

Delivery Detail: Shipped in 25-30 working days after payment.
