Quick Details
-
Package / Case:
-
METAL
-
Model:
-
R121S4-D1B500K-L1.2
-
Material:
-
Carbon film+metal
-
Total rotational angle:
-
300°±5°
-
Rated power:
-
B:0.125W other than B:0.06w
-
Max. Operating Voltage:
-
B:200V AC Other than B:150V AC, B:200V AC;other than B :150V AC
-
Actuator Type:
-
Round, Knurled and Slotted
-
Resistance taper::
-
A,B
-
Insulation resistance::
-
More than100MΩ at DC500V
-
Rotational life::
-
15000 Cycels
-
Lead time:
-
7-15 work days
-
Resistance:
-
5K-2M
-
Resistance Tolerance:
-
±10%
-
Rated Power:
-
B:0.125W other than B:0.06w
-
Operating Temperature:
-
-20℃~+70℃
-
Description:
-
12mm rotary carbon film potentiometer
-
Power (Watts):
-
0.125
-
Diameter:
-
12MM
-
Mounting Type:
-
Insert
-
Termination:
-
PCB pin
-
Rotation:
-
300°±5°
-
Actuator Length:
-
1.2mm
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Tianqian
-
Model Number:
-
R121S4-D1B500K-L1.2
-
Package / Case:
-
METAL
-
Model:
-
R121S4-D1B500K-L1.2
-
Material:
-
Carbon film+metal
-
Total rotational angle:
-
300°±5°
-
Rated power:
-
B:0.125W other than B:0.06w
-
Max. Operating Voltage:
-
B:200V AC Other than B:150V AC, B:200V AC;other than B :150V AC
-
Actuator Type:
-
Round, Knurled and Slotted
-
Resistance taper::
-
A,B
-
Insulation resistance::
-
More than100MΩ at DC500V
-
Rotational life::
-
15000 Cycels
-
Lead time:
-
7-15 work days
-
Resistance:
-
5K-2M
-
Resistance Tolerance:
-
±10%
-
Rated Power:
-
B:0.125W other than B:0.06w
-
Operating Temperature:
-
-20℃~+70℃
-
Description:
-
12mm rotary carbon film potentiometer
-
Power (Watts):
-
0.125
-
Diameter:
-
12MM
-
Mounting Type:
-
Insert
-
Termination:
-
PCB pin
-
Rotation:
-
300°±5°
-
Actuator Length:
-
1.2mm
Product Description&Specification

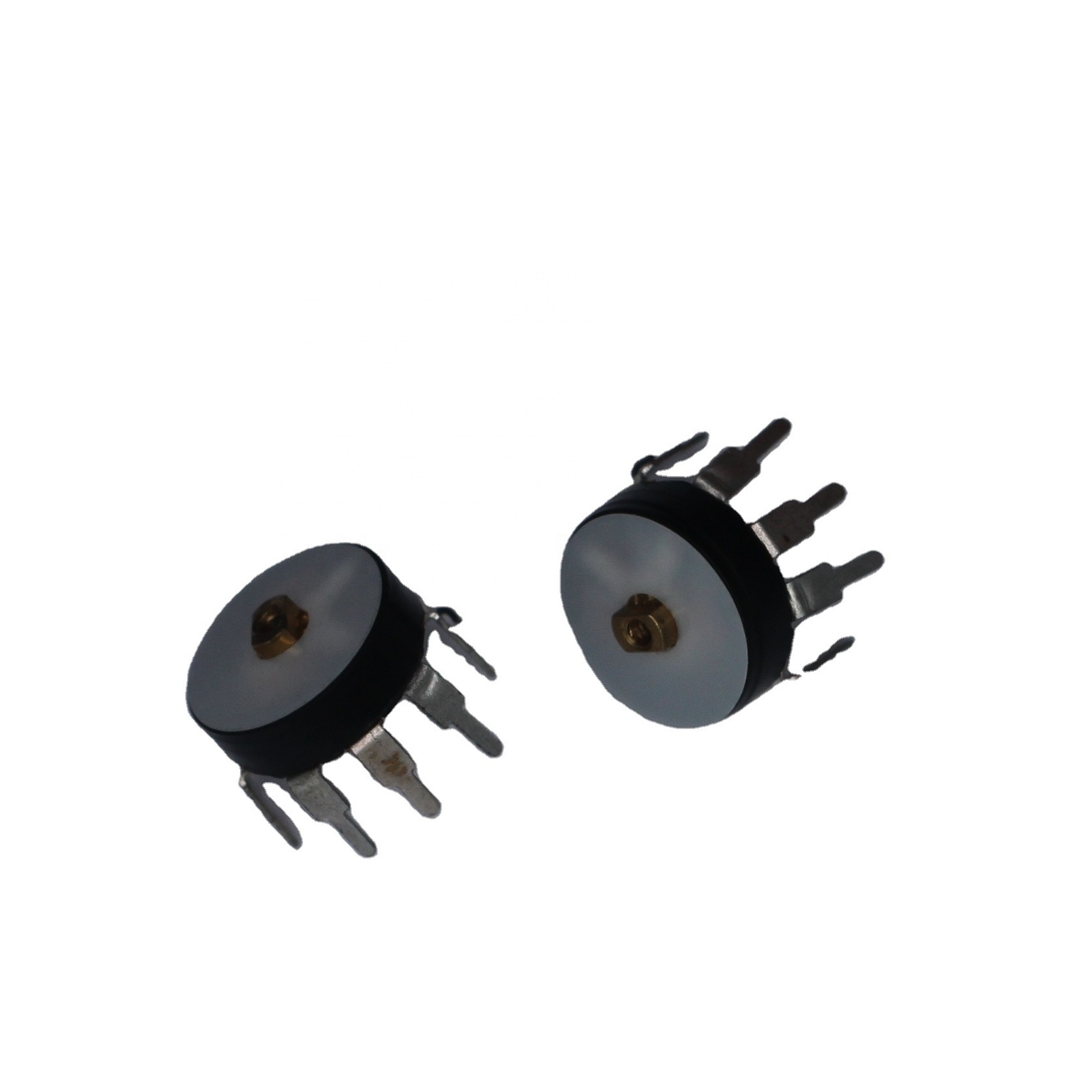

R121S4-D1B500K-L1.2 12mm 1K 2K 5K 10K 50K 100K 200K 500K Thumbwheel Rotary Trimmer Potentiometer with Switch
|
Mechanical Specification
|
|
|
|
|
||||
|
Total rotation angle
|
300°±5°
|
|
|
|
||||
|
Rotation stopper strength
|
2-20m N.m(20-200gf.cm)
|
|
|
|
||||
|
Rotation stopper strength
|
0.7N.m(7kgf.cm)
|
|
|
|
||||
|
Push Pull Strength
|
80N(8kgf)
|
|
|
|
||||
|
Bushing nut tighting strength
|
0.4N.m(4kgf.cm)
|
|
|
|
||||
|
Electrical specification
|
|
|
|
|
||||
|
Total resistance
|
1K-2M
|
|
|
|
||||
|
Total resistance tolerance
|
±20%（more than 1M Ω±30%）
|
|
|
|
||||
|
Rated Power
|
B:0.125W
|
|
|
|
||||
|
Max. operating voltage
|
B:200V AC other than B：150V AC
|
|
|
|
||||
|
Resistance taper
|
A,B
|
|
|
|
||||
|
Insulation resistance
|
more than 100M Ω at DC 500V
|
|
|
|
||||
|
Withstand voltage
|
for 1 minute or more at DC 500V
|
|
|
|
||||
|
Rotational life
|
15000 cycles
|
|
|
|
||||
