- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Fujian, China
-
Dimension(Long * Breadth * High):
-
7200x2250x3220mm
-
Warranty:
-
1 Year or 2000 working hours
-
Marketing Type:
-
Hot Product 2021
-
After-sales Service Provided:
-
Overseas third-party support available
-
Color:
-
Yellow and customized
-
Max.dumping height:
-
3200mm
-
Bucket capacity:
-
2 m3
-
Wheel base:
-
2750mm
-
Cycling time:
-
12.55s
-
Engine:
-
Weichai
-
Rated Power:
-
92kw
-
Name:
-
mini dumper loader
-
Model:
-
936 loader
-
After Warranty Service:
-
Online support
-
Local Service Location:
-
Brazil, India, Japan
-
Certification:
-
ISO9001/CE
Quick Details
-
Engine Brand:
-
optional
-
Power:
-
Other
-
Brand Name:
-
TIDER
-
Place of Origin:
-
Fujian, China
-
Dimension(Long * Breadth * High):
-
7200x2250x3220mm
-
Warranty:
-
1 Year or 2000 working hours
-
Marketing Type:
-
Hot Product 2021
-
After-sales Service Provided:
-
Overseas third-party support available
-
Color:
-
Yellow and customized
-
Max.dumping height:
-
3200mm
-
Bucket capacity:
-
2 m3
-
Wheel base:
-
2750mm
-
Cycling time:
-
12.55s
-
Engine:
-
Weichai
-
Rated Power:
-
92kw
-
Name:
-
mini dumper loader
-
Model:
-
936 loader
-
After Warranty Service:
-
Online support
-
Local Service Location:
-
Brazil, India, Japan
-
Certification:
-
ISO9001/CE
High performance 936 mini dumper loader 3 ton wheel loader with snow plow blade attachment
Product Characteristics of High performance 936 mini dumper loader 3 ton wheel loader:
Powerful performance:
1. Famous and powerful Weichai engine with global warranty and parts service provides strong power, energy conservation and environmental protection. Import engine is optional.
2. Confluence of double pumps device promotes rational use of engine power and reduces energy consumption effectively.
3. Torque converter and counter-shaft transmission with multiple unique technologies offer higher reliability and easier maintenance. Planetary transmission is optional.
4. Adopting longer lift arm and larger bucket, suitable for grasping the light weight material.
5. Using Heavy-duty frame structure with strong and thick steel in order to handle tough working condition.
6. Equipped new luxury cabin with big space and excellent visibility. Low vibration suspending seat with shock-absorber offers operator wide view and a comfortable drive.
7. Integral operation platform with adjustable instrument panel and humanized operation layout makes a comfortable operation environment.
Various equipments are optional.
1. Comfort function: ROPS/FOPS cab, Joystick control system, Air conditioner, Rearview camera
2. Engine: Import engine and others
3. Transmission: Hangchi transmission and others
4. Attachment: Rock bucket, Flat sand bucket, Log grapple, Grass grapple, Snow blade, Side dump bucket, Quick hitch device and so on.
Product Photos

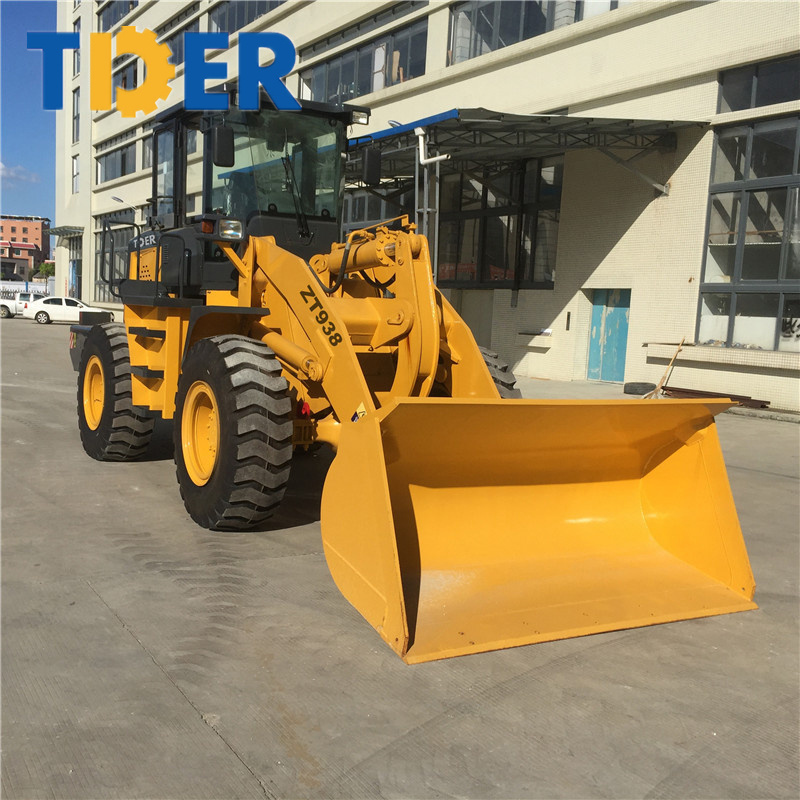

High performance 936 mini dumper loader 3 ton wheel loader with snow plow blade
Product details of High performance 936 mini dumper loader 3 ton wheel loader
Click for More Information!!!
High performance 936 mini dumper loader 3 ton wheel loader with snow plow blade
Procut specifications of High performance mini dumper loader 3 ton wheel loader:
| Model | ZT938 | |
| Performance | Operating weight | 10400KGS |
| Bucket capacity | 2.0m3 | |
| Rated loading capacity | 3000KGS | |
| Max. Climbing Gradient | 28 o | |
| Turning angle | 35 o ±1 o | |
| Turning radius | 5674mm | |
| Max.breakout force | 98±5kN | |
| Lifting time | 6.8s | |
| Total cylinder time | 12.55s | |
| Overall dimensions | Overall length | 7200mm |
| Overall width | 2250mm | |
| Overall height | 3220mm | |
| Bucket width | 2360mm | |
| Dumping height | 3200mm | |
| Dumping reach | 1020mm | |
| Specification of tires | 17.5-25 | |
| Wheel base | 2750mm | |
| Tire width | 1800mm | |
| Engine | Engine model | TD226B-6G |
| Rated power | 92kw | |
| Rated speed | 2300r/min | |
| Max. torque | 500N.m | |
| Travel speed | Forward gear Ⅰ | 8km/h |
| Forward gear Ⅱ | 13.5km/h | |
| Forward gear Ⅲ | 25km/h | |
| Forward gear IV | 36km/h | |
| Reverse gear Ⅰ | 9.5km/h | |
| Reverse gear Ⅱ | 30km/h | |
After-services:
Tider industrial is committed to offer not only products with high quality and performance and competitive price, but also in-time delivery and comprehensive after-services.
All the products purchased from Tider enjoy one year or 2000 hours (which occurs first) warranty. During the warranty period, if there is any part broken because of quality problem (except easy-damaged parts), the defective parts will be repaired or replaced free of charges.
