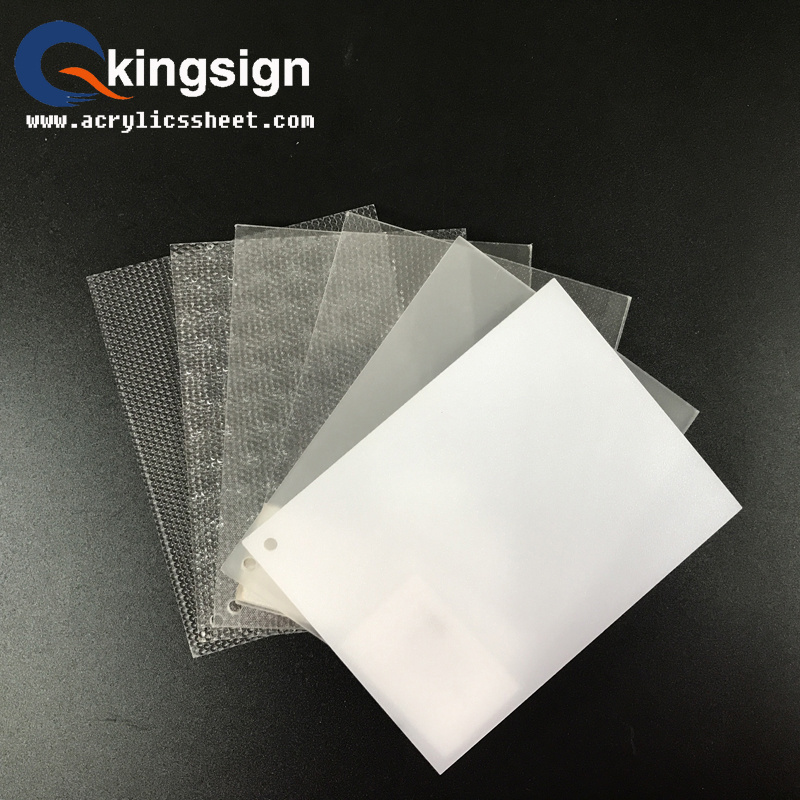

3mm thick acrylic light guide panel/ lgp sheet

3mm thick acrylic light guide panel/ lgp sheet

FOB Reference Price: Get Latest Price

≥50 Kilograms

US $10

≥500 Kilograms

US $8

≥10000 Kilograms

US $5.5

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Model Number:: KS-LGP

Thickness:: 2-30mm

Size:: 1220*2440,600*600mm,1000*1000mm,1200*1200mm

Color:: transparent, white, opal, blue, red,yellow and etc.

Raw material:: 100% Virgin Mitsubishi /Lucite

Density:: 1.2g/cm3

Packing:: PE film or Craft paper on both side, Wooden Pallet

light transmission:: 92%

surface:: high surface hardness & glossy

Sample:: Free

Certificate:: ISO9001/SGS

Name:: 3mm thick acrylic light guide panel/ lgp sheet

Quick Details

Processing Service:: Cutting

Place of Origin:: Shanghai, China

Brand Name:: Kingsign

Model Number:: KS-LGP

Thickness:: 2-30mm

Size:: 1220*2440,600*600mm,1000*1000mm,1200*1200mm

Color:: transparent, white, opal, blue, red,yellow and etc.

Raw material:: 100% Virgin Mitsubishi /Lucite

Density:: 1.2g/cm3

Packing:: PE film or Craft paper on both side, Wooden Pallet

light transmission:: 92%

surface:: high surface hardness & glossy

Sample:: Free

Certificate:: ISO9001/SGS

Name:: 3mm thick acrylic light guide panel/ lgp sheet

Specification

LGP Acrylic PMMA Sheet
Quality	100% virgin Lucite or Mitsubishi PMMA
HS code	39205100
Density	1.2g/cm3
Thickness (mm)	1.8-20mm
Capacity	The capacity is 2000 tons/month.
Main Size (mm)	1220×2440,1220×1830mm(Special sizes can be customized), the max width is 2100mm
Colors	white
Features & Benefits	1. Transmittance 60-85% ASTM D1003 2. Haze 97% ASTM D1003 3. One side skin lines, one side dull polish 4. Excellent superior weather resistance 5. High rate of light penetration 6. Strong and durable, 100% recyclable, non-toxic 7. Impervious to moisture, insects, salts 8. Excellent in insulating the electricity 9. Perfect transparency and the light transmittance with 93%.
Applications	1. LED Panel Light 2. Office Lighting 3. Consumer Luminaries 4. Landscape Lighting Luminaries 5. Industrial Lighting Luminaries 6. Street Lighting
Packing Detail	PE film on both sides of sheet, wood pallets will be packed in the container.
Certification	Plastic Inspection and SGS

Introduction of diffuser acrylic sheet
Specific gravity	1.19-1.20
Hardness	M-100
Water Absorbtion - 24 hours	0.30%
Tension
Coefficient of rupture	700kg/cm2
Coefficient of elasticity	2800kg/cm2
Bending
Coefficient of rupture	1.5kg/cm2
Coefficient of elasticity	2800kg/cm2
Transmission of Light
Transmission(parallel rays)	92%
Transmission(full rays)	93%
Other
Heat distortion temperature	100°C
Coefficient of linear expansion	6*10-5cm/cm°C
Temperature of continuous operation	80°C
Thermoforming Temperature range	140-180°C
Insulating strength	20kv/mm

Sign samples

Art light

It is amzing the sheet could provide such good effecient.

Decoration

We can provide many different shape light diffuser sheet.

Light box

You can meet the light box in anywhere, such as advertiing box in street.

Nano lgp PMMA application

Laser dots lgp PMMA application

Details

Our workshop.

This is our diffuser acrylic sheet produce line, welcome to visit our factory at anytime.

Adequate inventory.

Our warehouse have adequate inventory, you can place the order at anytime you like, and the delivery time will be as soon as you need.

Packing & Delivery

1. PE film or Kraft paper

PE film/kraft paper will be packed on the acrylic tube.

2. Cartons

A certain number of lgp acrylic sheet are packed in a cardboard box

3. Wooden pallets

A certain number of cardboard box are packed on wooden pallets.

General Explaination

WHO AM I ? WHAT DO WE DO ?

KINGSING ACRYLIC is the Kingsign International (China) Limited investment in Shanghai, the establishment of an export-oriented and domestic sales, supplemented by a comprehensive sales company, exporting a variety of acrylic sheet, tube, pipe, and undertake various international large-scale aquarium and swimming pool projects.

After the company engaged in aquarium, swimming pool and landscape engineering, it independently developed acrylic adhesives, which were applied to plate bonding, super-thick plates and maintenance, thus pushing the products to a new level. The newly created seamless splicing acrylic tunnel, high-altitude swimming pool (transparent), and proficient in the splicing of circular and arc-shaped seams, the docking of super-thick plates.

We supply flat panels, forming & bending of curved panels, bonding, annealing & local, as well as international installation.
KINGSIGN currently offers one of the largest monolithic (unbonded) cast acrylic block sizes, being“11500mm x 3000mm and 8100 x 3700mm”.

KINGSIGN have an extensive technical support with over 30 years of KINGSIGN acrylic block fabrication & installation. KINGSIGN have a very strict permissible level of inclusions/defects where KINGSIGN has a KPI of supplying the highest optical finish.
Thickness tolerances / planarity are according to the ISO standard.
KINGSIGN have less than 1% content residual monomer, resulting from our raw material (MMA) curing process . Residual monomer at higher levels can in a reasonably short time, discolour the panel in the ultra-violets (UV).

Our product: Thick acrylic sheets for swimming pool/aquarium/furniture, acrylic mirror sheet, glitter acrylic sheet, marble acrylic sheet, clear & color acrylic sheet, frosted acrylic sheet, pattern acrylic sheet,...customized acrylic plate products;

Acrylic tube, clear & color acrylic tube, cast & extruded acrylic tube, thread acrylic tube,..customized acrylic tube products;

Acrylic rod, clear & color acrylic rod, cast & extruded acrylic rod, thread/twist acrylic rod, bubble acrylic rod, swirl / pattern acrylic rod,...customized acrylic products;

Our service: sampling color and prototype, customized sizes, cutting, polish, cutomized products as CAD.
