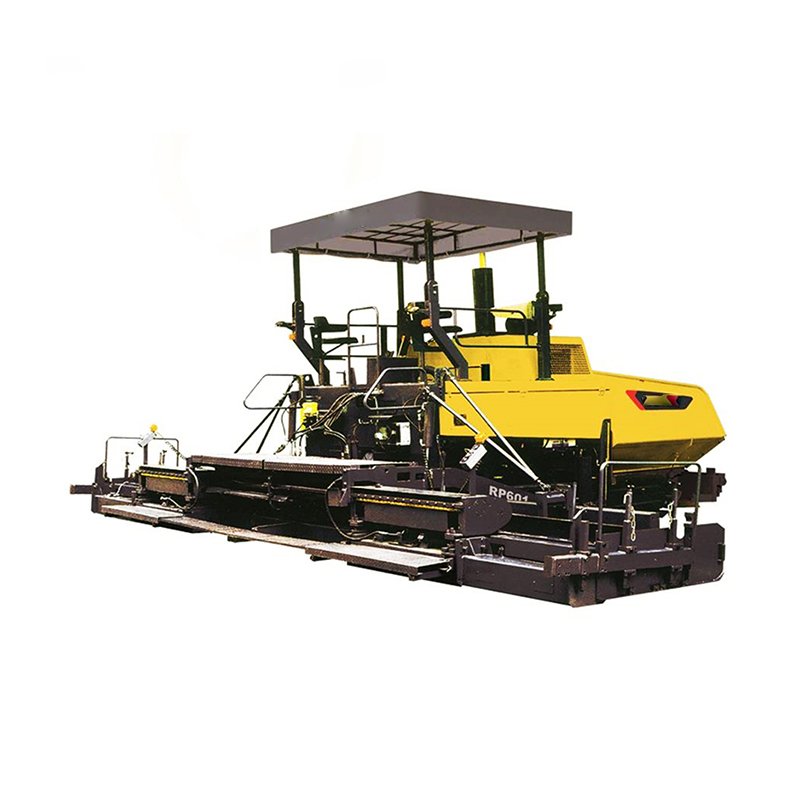

Road Construction Machinery 300t/h Asphalt Concrete Paver RP601
Road Construction Machinery 300t/h Asphalt Concrete Paver RP601
Road Construction Machinery 300t/h Asphalt Concrete Paver RP601
Road Construction Machinery 300t/h Asphalt Concrete Paver RP601
Road Construction Machinery 300t/h Asphalt Concrete Paver RP601
Road Construction Machinery 300t/h Asphalt Concrete Paver RP601
Road Construction Machinery 300t/h Asphalt Concrete Paver RP601
Road Construction Machinery 300t/h Asphalt Concrete Paver RP601

Road Construction Machinery 300t/h Asphalt Concrete Paver RP601

FOB Reference Price: Get Latest Price
≥1 Pieces
US $60000
≥5 Pieces
US $50000
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Marketing Type:
New Product 2023, Ordinary Product
Production Capacity:
300t/h
Power:
100kw
Place of Origin:
China
Brand Name:
Top Brand
Dimension(L*W*H):
6400*2580*3830mm, 6400*2580*3830mm
Paving speed:
0~10m/min
Travel speed:
0~3.3Km/h
Theoretical productivity:
300t/h

Quick Details

Max. Paving Thickness:
150mm
Weight:
17400 kg
Engine Brand:
Top Brand
Marketing Type:
New Product 2023, Ordinary Product
Production Capacity:
300t/h
Power:
100kw
Place of Origin:
China
Brand Name:
Top Brand
Dimension(L*W*H):
6400*2580*3830mm, 6400*2580*3830mm
Paving speed:
0~10m/min
Travel speed:
0~3.3Km/h
Theoretical productivity:
300t/h

Product Description

RP601 asphalt paver is the independent research and development of famous machinery company in China, intelligent fleet of joint operations, remote monitoring, and a number of international advanced technology such as high precision high-performance paving control of major road construction machinery, leading the paver high technical performance, high reliability and high adaptability
of technology development trend, is integrated with the world's advanced machine, electricity, liquid, information and communication technology in the integration of high-tech products. The launch of this product improves the quality of paving and work efficiency, saves raw materials and energy consumption, and it becomes the best solution-provider for the implementation of intelligent cluster joint operation mode.

Product Parameters

project
unit
parameter
Theoretical productivity
t/h
300
Maximum paving width
m
6
Maximum paving thickness
mm
150
Maximum paving speed
m/min
11
Flatness
mm
3
Density
%
≥85
Density unevenness
%
<5
Maximum travel speed
km/h
3.6
Gradeability
%
20
Crawler tension (crawler type)
Butter tension
structure type
Feed and distribution linkage
Drive way
Bridge hydraulic drive
Scraper conveying speed
m/min
0~24
Spiral feeding speed
r/min
0~55
Assembled form
Hydraulic telescopic
Basic width
m
2.5
heating method
Gas heating
Vibration stroke
mm
4
Vibration speed
r/min
0~1500
Arch adjustment range
%
0~+3
Host quality (including basic screed)
kg
14,300
Maximum quality (working state)
kg
17,400
Grounding area ( type)
mm
2900×300
Hopper density
t
13
Hopper width
mm
3333
Hopper length
mm
2015
model
Yu--chai YC4A125Z
Power/speed
kW/r/min
92/2200
emission
Non-road, country Ⅱ
Fuel tank capacity
L
185
