Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
Shizhou
-
Model Number:
-
M8 S PLUS DVB t2 s905x2 2g16g
-
Features:
-
DVB T2+Android
Quick Details
-
Processor Core:
-
Quad Core
-
Support Resolution:
-
4k
-
WiFi:
-
802.11n 2.4G/5GHz
-
Place of Origin:
-
China
-
Brand Name:
-
Shizhou
-
Model Number:
-
M8 S PLUS DVB t2 s905x2 2g16g
-
Features:
-
DVB T2+Android
Product Description
Shizhou Tech dvb t2 amlogic s905x2 2gb 16gb android 9.0 set top box satellite tv receiver
| M8S PLUS DVB | ||||
| Hardware Specifications | ||||
| CPU | Amlogic S905D Quad-Croe 64-bit Cortex-A53 | |||
| GPU | Penta Mali-450 | |||
| RAM | 1GB | |||
| ROM | 8GB | |||
| WiFi | Built in 2.4G WiFi | |||
| IR | Infra Remote control | |||
| LAN Ethernet | 10/100M | |||
| LED Indicator | Power ON :blue; Standby :Red | |||
| I/O | HDTV 2.0 | 4K/2K HDTV2.0 | ||
| 2*USB HOST | 2* High speed USB 2.0,support U DISK and USB HDD | |||
| 1*AV | CVBS&L/R output | |||
| 1*RJ45 | 10/100M BaseT | |||
| 1*DC IN | DC Adapter 5V/2A | |||
| DVB-T2/T | DVB-T2 system standard:ETSIEN 302 755 | |||
| Support MPLP | ||||
| Demodulation: QPSK,16QAM,64QAM or 256QAM | ||||
| Forward error correction rate 1/2,2/3,3/4,3/5,5/6 | ||||
| Guard interval :1/4,19/256,1/8,19/128,1/16,1/32,1/128 | ||||
| Bandwith: 6/7/8MHz | ||||
| Input Frange range:54--860MHz Input Impedance:75 Ω | ||||
| Input Signal level: -84 dBm to 0 dBm (average power) | ||||
| ANT. Connector:IEC TYPE, female | ||||
| Main Features | ||||
| OS | android 7.1.2 | |||
| Video decorder | H.265 4K @30fps 10btis, VP9 Profile 2, H.264 4K @30fps, AVS+ 1080P @60fps | |||
| Video encorder | H.264 1080P @60fps | |||
| HDR | HDR10 & HLG | |||
| Decoder format | HD MPEG1/2/4,H.265/HEVC , HD AVC/VC-1,RM/RMVB,Xvid,RealVideo8/9/10 | |||
| Media format | Avi/Rm/Rmvb/Ts/Vob/Mkv/Mov/ISO/wmv/asf/flv/dat/mpg/mpeg | |||
| Music format | WMA/AAC/WAV/OGG/DDP/TrueHD/HD/FLAC/APE | |||
| Photo format | HD JPEG/BMP/GIF/PNG/TIFF | |||
| Network Function | Miracast,,Airplay,Skype chatting,Picasa,Youtube,Flicker,Facebook,Online movies,etc. | |||
| Language | Chinese , English ,Germany ,Japanese, Korea etc. 24 languages | |||
| Accessories | ||||
| Accessories | 1*Adapter | |||
| 1*Gift Box | ||||
| 1*IR remote control | ||||
| 1*HDTV Cable | ||||
| 1*User Manual | ||||
| Loading | ||||
| Loading | machine size | 130x98.5x20.8mm | Packaged size | 200x135x54mm |
| machine weight | 180g | Packaged weight | 450g | |
| PCS/CTN | 20 | Carton Size | 415x285x290mm | |

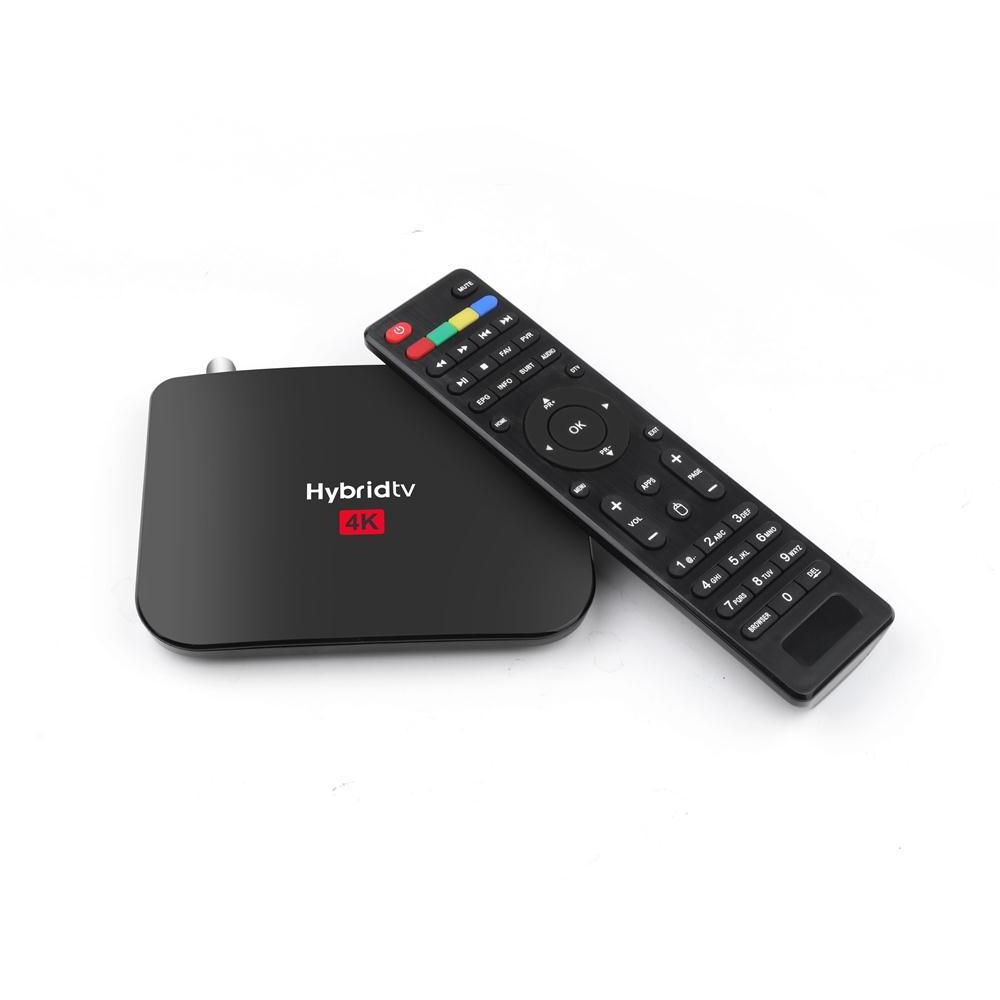

Detail Image
