Quick Details
-
Mounting Type:
-
/
-
Description:
-
/, /
-
Manufacturing Date Code:
-
/
-
Model Number:
-
Other
-
Place of Origin:
-
China, Zhejiang, China (Mainland)
-
Brand Name:
-
Other
-
Theory:
-
/, Capacitance Sensor
-
Output:
-
/, Switching Transducer
-
Application:
-
Industrial Automation
-
Product name:
-
Capacitive Proximity Sensor
-
Shell Material:
-
Metal/IP67
-
Usage:
-
Position Sensor
Quick Details
-
Use:
-
/
-
Series:
-
/
-
Features:
-
/
-
Mounting Type:
-
/
-
Description:
-
/, /
-
Manufacturing Date Code:
-
/
-
Model Number:
-
Other
-
Place of Origin:
-
China, Zhejiang, China (Mainland)
-
Brand Name:
-
Other
-
Theory:
-
/, Capacitance Sensor
-
Output:
-
/, Switching Transducer
-
Application:
-
Industrial Automation
-
Product name:
-
Capacitive Proximity Sensor
-
Shell Material:
-
Metal/IP67
-
Usage:
-
Position Sensor
Quick Details
Place of Origin:Zhejiang,China(Mainland)
Usage:Position sensor
Application:Industrial Automation
Certificate:CE
Output Form:2wires
Detection distance:4mm
Brand Name:Trihero
Theory:Capacitance Sensor

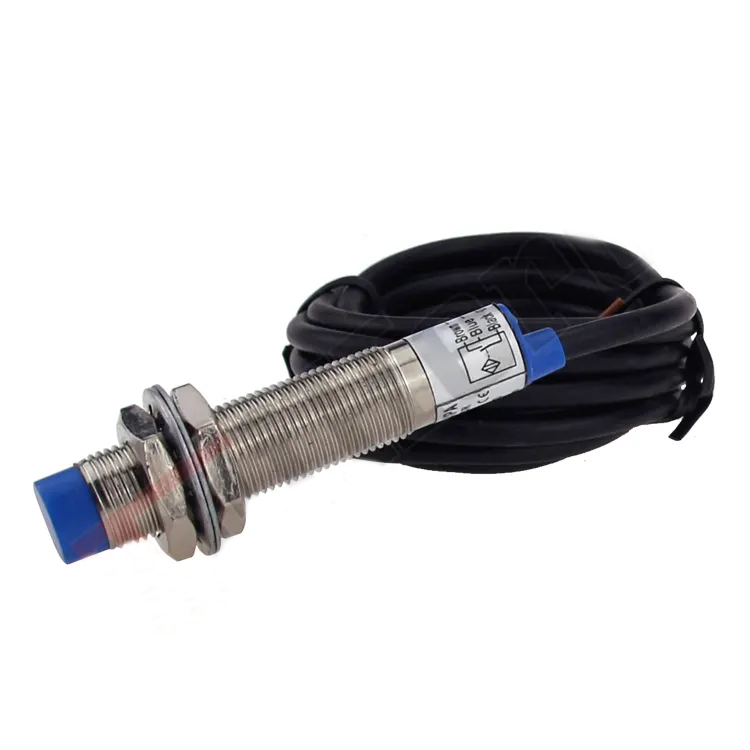

Product name:Capacitive Proximity Sensor
Technical Data
Compact volume
Wide voltage range
Long service life
Diversified exterior structures
high precision of repeated location
Good performance of anti-interference.
Dust proof,vibration proof,waterproof and Oil-proof.
| Non-flush | Detection distance | 0-4mm | ||
| DC10-30V | NPN | NO | CM12-3004NA | |
| NC | CM12-3004NB | |||
| NO+NC | CM12-3004NC | |||
| PNP | NO | CM12-3004PA | ||
| NC | CM12-3004PB | |||
| NO+NC | CM12-3004PC | |||
| AC90~250V | two wire system | NO | CM12-3004LA | |
| NC | CM12-3004LB | |||
| SCR Control label silicon | NO | CM12-3004A | ||
| NC | CM12-3004B | |||
| NO+NC | CM12-3004C | |||
| Control output | DC | 200mA | ||
| SCR/Relay | 300mA | |||
| Output voltage drop DC/AC | DC<3V AC<10V | |||
| Consumption current | DC<15mA AC<10mA | |||
| Detected object | Conductor and Directric Body | |||
| Repeated precision | 0.05 | |||
| DC/AC Response frequency | 200Hz/25Hz | |||
| Working environment temperature | –25℃~75℃ | |||
| Insulation resistance | 50MΩ | |||
| Shell material | Metal | |||
| Protection grade | IEC standard IP65 | |||
| Altemative model at home and abroad | ||||
Dimension
Application
Product Display
FAQ
Q1. What advantages do you have?
A1. Trihero are the direct Manufacturer in Wenzhou China, we have professional
developing, marketing & production team to offer you the most competitive price and best service.
Q2. What's your main product?
A2. We have two product project,low voltage electrical and automation control items.
Q3. Could you print our own logo?
A3. Yes, Our company are available for Retail & Wholesale & OEM & ODM.
Q4. How long is the quality guarantee?
A4. 18 month warranty, our products are 100% inspection.
Q5. How long is the deliver time?
A5. It usually takes about 3 - 5 working days for sample order and 10 - 25 days for big order.
Q6. What is your payment terms?
A6. Our Payment term is T/T, Aliexpress, Western Union, PayPal, Money Gram, L/C at sight.
Q7. Any certification of your company or product?
A7.We have ISO 9001, CE, CB, SEMKO, SAA, TUV, CCC.
