Expanded Copper Mesh/Expanded Brass Mesh/Expanded Phosphor Mesh

Expanded Copper Mesh/Expanded Brass Mesh/Expanded Phosphor Mesh

FOB Reference Price: Get Latest Price

≥1 Square meters

US $15

≥100 Square meters

US $10

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Model Number:: CC2568

Quick Details

Material:: Brass Wire

Place of Origin:: Hebei, China

Brand Name:: Chaochuang

Model Number:: CC2568

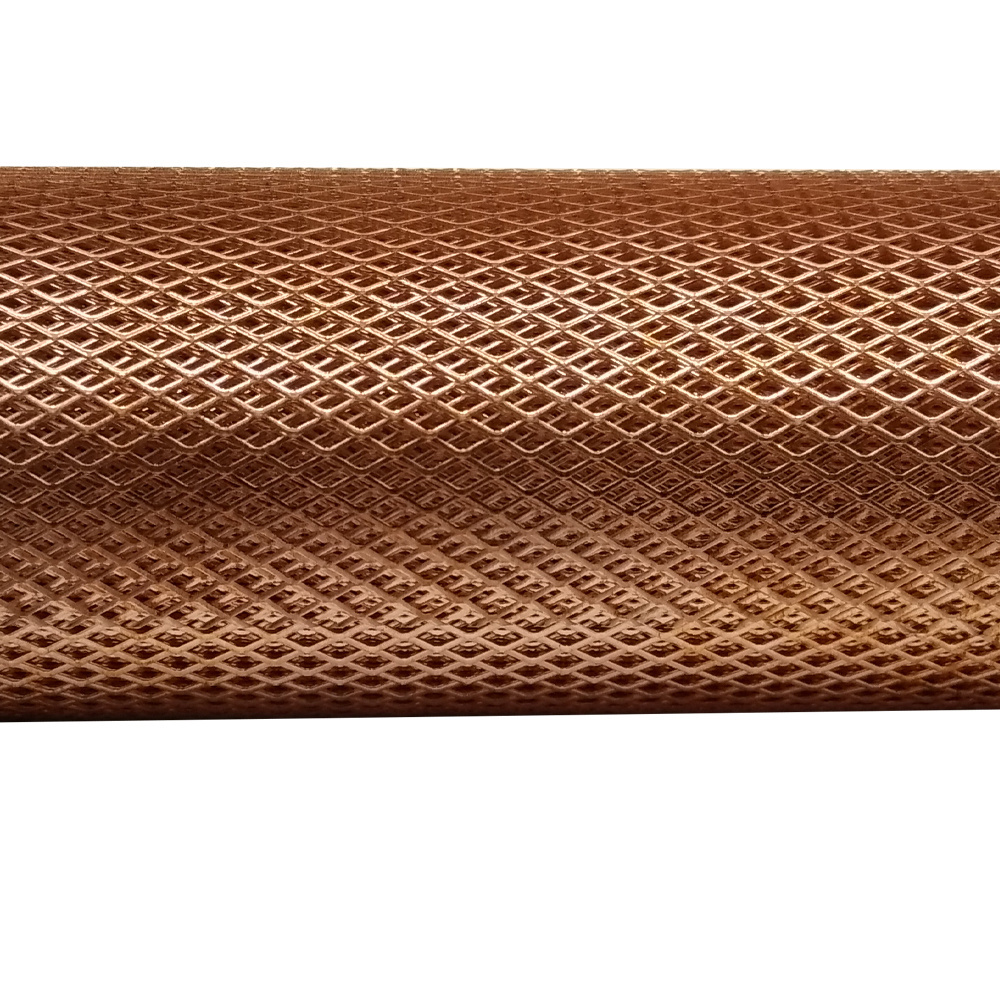

Expanded Copper Mesh/Expanded Brass Mesh/Expanded Phosphor Mesh

Product Description

Expanded copper mesh provides an economical way to assure strength and non-skip surface. It is easily cut into irregular shapes and quickly installed by welding or bolting. Hence, it is wildly used in construction, architectural applications, EMI shielding room, high Voltage test lab, concrete reinforcement, non-skid stair treads, filtration, chimney caps and handcrafts.

Expanded Copper Mesh Used in Construction, No-skid Stairs

Raised Expanded Copper Mesh
Just the expanded copper mesh comes from the press, providing a anti-skidding surface

Item	Sheet Size	Bond	OPENING SIZE	STRAND SIZE	Open Area %	Sheet Thickness
SWD	LWD	SWD	LWD	SWO	LWO	Width	Thickness
feet	m	feet	m	inch	mm	inch	mm	inch	mm	inch	mm	inch	mm	inch	mm	inch	mm
BG-RECM-01	4, 8	1.22, 2.44	8, 4	2.44, 1.22	0.500	12.70	1.20	30.48	0.438	11.13	0.938	23.83	0.072	1.83	0.036	0.91	80	0.140	3.56
BG-RECM-02	4, 8	1.22, 2.44	8, 4	2.44, 1.22	0.500	12.70	1.20	30.48	0.440	11.18	0.938	23.83	0.088	2.24	0.048	1.22	72	0.172	4.37
BG-RECM-03	4, 8	1.22, 2.44	8, 4	2.44, 1.22	0.500	12.70	1.20	30.48	0.375	9.53	0.938	23.83	0.086	2.18	0.060	1.52	65	0.175	4.45
BG-RECM-04	4, 8	1.22, 2.44	8, 10, 4	2.44, 3, 1.22	0.500	12.70	1.20	30.48	0.312	7.92	0.938	23.83	0.096	2.44	0.092	2.34	57	0.204	5.18
BG-RECM-05	4, 8	1.22, 2.44	8, 4	2.44, 1.22	0.500	12.70	1.20	30.48	0.250	6.35	0.800	20.32	0.188	4.78	0.092	2.34	25	0.275	6.99
BG-RECM-06	4, 8	1.22, 2.44	8, 4	2.44, 1.22	0.923	23.40	2.00	50.80	0.813	20.65	1.750	44.45	0.099	2.51	0.060	1.52	78	0.210	5.33
BG-RECM-07	4, 8	1.22, 2.44	8, 4	2.44, 1.22	0.923	23.40	2.00	50.80	0.750	19.05	1.688	42.88	0.096	2.44	0.092	2.34	76	0.205	5.21
BG-RECM-08	4, 8	1.22, 2.44	8, 4	2.44, 1.22	0.923	23.40	2.00	50.80	0.750	19.05	1.625	41.28	0.144	3.66	0.092	2.34	72	0.290	7.37
BG-RECM-09	4, 8	1.22, 2.44	8, 4	2.44, 1.22	0.923	23.40	2.00	50.80	0.688	17.48	1.563	39.70	0.148	3.76	0.134	3.40	68	0.312	7.92
BG-RECM-10	4, 8	1.22, 2.44	8, 4	2.44, 1.22	1.000	25.40	2.25	57.15	1.000	25.40	2.063	52.40	0.096	2.44	0.060	1.52	82	0.192	4.88
BG-RECM-11	4, 8	1.22, 2.44	8, 4	2.44, 1.22	1.000	25.40	2.25	57.15	0.875	22.23	1.563	39.70	0.125	3.18	0.074	1.88	75	0.225	5.72
BG-RECM-12	4, 8	1.22, 2.44	8, 4	2.44, 1.22	1.000	25.40	2.25	57.15	0.907	23.04	1.563	39.70	0.109	2.77	0.105	2.67	78	0.225	5.72
BG-RECM-13	4, 8	1.22, 2.44	8, 10, 4	2.44, 3, 1.22	1.000	25.40	2.25	57.15	0.750	19.05	1.563	39.70	0.155	3.94	0.135	3.43	62	0.375	9.53
BG-RECM-14	4, 8	1.22, 2.44	8, 10, 4	2.44, 3, 1.22	1.000	25.40	2.25	57.15	0.725	18.42	1.563	39.70	0.180	4.57	0.135	3.43	60	0.390	9.91
BG-RECM-15	8	2.44	4	1.22	1.000	25.40	2.25	57.15	0.576	14.63	1.563	39.70	0.275	6.99	0.183	4.65	45	0.550	13.97
BG-RECM-16	4, 8	1.22, 2.44	8, 4	2.44, 1.22	1.330	33.78	3.00	76.20	1.313	33.35	2.625	66.68	0.067	1.70	0.048	1.22	90	0.140	3.56
BG-RECM-17	4, 8	1.22, 2.44	8, 4	2.44, 1.22	1.330	33.78	3.00	76.20	1.250	31.75	2.625	66.68	0.107	2.72	0.060	1.52	85	0.230	5.84
BG-RECM-18	4, 8	1.22, 2.44	8, 4	2.44, 1.22	1.330	33.78	3.00	76.20	1.188	30.18	2.500	63.50	0.104	2.64	0.092	2.34	85	0.242	6.15
BG-RECM-19	4, 8	1.22, 2.44	8, 4	2.44, 1.22	1.330	33.78	3.00	76.20	1.188	30.18	2.500	63.50	0.137	3.48	0.092	2.34	80	0.284	7.21
BG-RECM-20	4, 8	1.22, 2.44	8, 4	2.44, 1.22	1.330	33.78	3.00	76.20	1.000	25.40	2.375	60.33	0.200	5.08	0.135	3.43	74	0.350	8.89
BG-RECM-21	4, 8	1.22, 2.44	8, 4	2.44, 1.22	1.330	33.78	3.00	76.20	0.830	21.08	2.375	60.33	0.240	6.10	0.135	3.43	72	0.460	11.68
BG-RECM-22	4, 8	1.22, 2.44	8, 4	2.44, 1.22	1.330	33.78	3.00	76.20	1.125	28.58	2.375	60.33	0.142	3.61	0.134	3.40	76	0.312	7.92
BG-RECM-23	8	2.44	4	1.22	1.330	33.78	3.00	76.20	1.000	25.40	2.313	58.75	0.201	5.11	0.198	5.03	69	0.433	11.00
BG-RECM-24	8, 10	2.44, 3	3, 4	0.914, 1.22	1.330	33.78	5.33	135.38	0.940	23.88	3.440	87.38	0.264	6.71	0.183	4.65	60	0.540	13.72
BG-RECM-25	8	2.44	4, 3	1.22, 0.914	1.330	33.78	5.33	135.38	0.940	23.88	3.440	87.38	0.300	7.62	0.215	5.46	55	0.618	15.70
NOTE: SWD - Short Way of Design; LWD - Long Wat of Design. Usually SWD is before the LWD, eg. 4 × 8 sheet dimensions means 4' in SWD direction and 8' in LWD direction. SWO - Short Way of Opening; LWO - Long Way of Opening. STRAND THICKNESS - Gauge thickness of the base panel.

Flattened Expanded Copper Mesh
Cold-rolled expanded copper mesh, providing a smooth and flat surface.

Item	Sheet Size	Bond	OPENING SIZE	STRAND SIZE	Open Area %	Sheet Thickness
SWD	LWD	SWD	LWD	SWO	LWO	Width	Thickness
feet	m	feet	m	inch	mm	inch	mm	inch	mm	inch	mm	inch	mm	inch	mm	inch	mm
BG-FECM-01	4, 8	1.22, 2.44	8, 4	2.44, 1.22	0.500	12.70	1.25	31.75	0.375	9.53	1.000	25.40	0.079	2.01	0.029	0.74	65	0.029	0.74
BG-FECM-02	4, 8	1.22, 2.44	8, 4	2.44, 1.22	0.500	12.70	1.25	31.75	0.312	7.92	1.000	25.40	0.097	2.46	0.039	0.99	60	0.039	0.99
BG-FECM-03	4, 8	1.22, 2.44	8, 4	2.44, 1.22	0.500	12.70	1.25	31.75	0.312	7.92	1.000	25.40	0.096	2.44	0.050	1.27	63	0.050	1.27
BG-FECM-04	4, 8	1.22, 2.44	8, 4	2.44, 1.22	0.500	12.70	1.25	31.75	0.265	6.73	1.000	25.40	0.107	2.72	0.070	1.78	52	0.070	1.78
BG-FECM-05	4, 8	1.22, 2.44	8, 4	2.44, 1.22	0.923	23.44	2.10	53.34	0.750	19.05	1.750	44.45	0.111	2.82	0.048	1.22	74	0.048	1.22
BG-FECM-06	4, 8	1.22, 2.44	8, 4	2.44, 1.22	0.923	23.44	2.10	53.34	0.688	17.48	1.781	45.24	0.106	2.69	0.070	1.78	74	0.070	1.78
BG-FECM-07	4, 8	1.22, 2.44	8, 4	2.44, 1.22	0.923	23.44	2.10	53.34	0.637	16.18	1.755	44.58	0.160	4.06	0.070	1.78	68	0.070	1.78
BG-FECM-08	4, 8	1.22, 2.44	8, 4	2.44, 1.22	0.923	23.44	2.10	53.34	0.563	14.30	1.688	42.88	0.165	4.19	0.120	3.05	63	0.120	3.05
BG-FECM-09	4, 8	1.22, 2.44	8, 4	2.44, 1.22	1.000	25.40	2.30	58.42	0.813	20.65	2.250	57.15	0.098	2.49	0.050	1.27	78	0.050	1.27
BG-FECM-10	4, 8	1.22, 2.44	8, 4	2.44, 1.22	1.000	25.40	2.30	58.42	0.790	20.07	2.000	50.80	0.125	3.18	0.070	1.78	80	0.070	1.78
BG-FECM-11	4, 8	1.22, 2.44	8, 4	2.44, 1.22	1.000	25.40	2.30	58.42	0.785	19.94	2.000	50.80	0.156	3.96	0.085	2.16	74	0.085	2.16
BG-FECM-12	4, 8	1.22, 2.44	8, 4	2.44, 1.22	1.000	25.40	2.30	58.42	0.750	19.05	1.900	48.26	0.160	4.06	0.110	2.79	58	0.110	2.79
BG-FECM-13	4, 8	1.22, 2.44	8, 4	2.44, 1.22	1.330	33.78	3.20	81.28	1.062	26.97	2.750	69.85	0.119	3.02	0.048	1.22	83	0.048	1.22
BG-FECM-14	4, 8	1.22, 2.44	8, 4	2.44, 1.22	1.330	33.78	3.20	81.28	1.062	26.97	2.750	69.85	0.116	2.95	0.070	1.78	80	0.070	1.78
BG-FECM-15	4, 8	1.22, 2.44	8, 4	2.44, 1.22	1.330	33.78	3.20	81.28	0.900	22.86	2.560	65.02	0.188	4.78	0.110	2.79	63	0.110	2.79
BG-FECM-16	4, 8	1.22, 2.44	8, 4	2.44, 1.22	1.330	33.78	3.20	81.28	1.000	25.40	2.563	65.10	0.158	4.01	0.110	2.79	75	0.110	2.79
NOTE: SWD - Short Way of Design; LWD - Long Wat of Design. Usually SWD is before the LWD, eg. 4 × 8 sheet dimensions means 4' in SWD direction and 8' in LWD direction. SWO - Short Way of Opening; LWO - Long Way of Opening. STRAND THICKNESS - Gauge thickness of the base panel.
