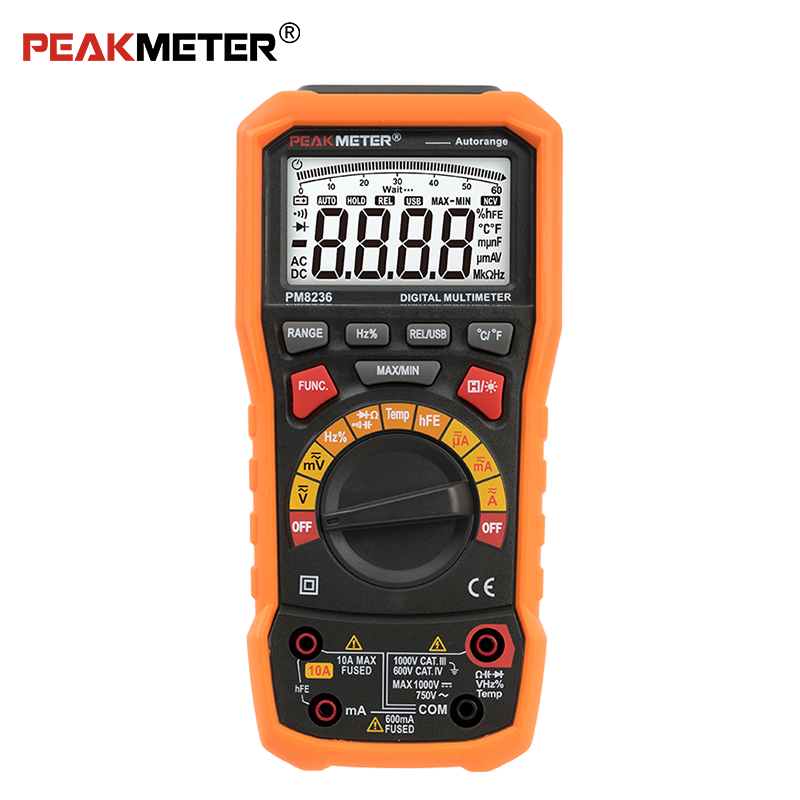

Quick Details
-
Brand Name:
-
Peakmeter
-
Model Number:
-
PM8236
-
Operating Temperature:
-
0~40℃
-
Dimensions:
-
194*93*55mm
-
frequency:
-
10MHz
-
Display:
-
6000 Counts LCD
-
Color:
-
Orange+black
-
WEIGHT:
-
580g
-
Interface:
-
USB
-
Certificate:
-
ISO9001 CE
-
Duty Cycle:
-
1%~99%
-
Temperature:
-
-20~1000℃
-
bargraph display:
-
yes
-
True RMS:
-
Yes
Quick Details
-
Measuring Range:
-
750V AC 1000V DC
-
Accuracy Class:
-
-
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Peakmeter
-
Model Number:
-
PM8236
-
Operating Temperature:
-
0~40℃
-
Dimensions:
-
194*93*55mm
-
frequency:
-
10MHz
-
Display:
-
6000 Counts LCD
-
Color:
-
Orange+black
-
WEIGHT:
-
580g
-
Interface:
-
USB
-
Certificate:
-
ISO9001 CE
-
Duty Cycle:
-
1%~99%
-
Temperature:
-
-20~1000℃
-
bargraph display:
-
yes
-
True RMS:
-
Yes
Product Description
| SPECIFICATIONS | RANGE | ACCURACY |
| DC Voltage | 60mV/600mV/6V/60V/600V/1000V | ±(0.7%+2) |
| AC Voltage | 60mV/600mV/6V/60V/600V | ±(0.8%+3) |
| 750V | ±(1.0%+3) | |
| AC Current | 600μA/6000μA/60mA/600mA | ±(1.2%+3) |
| 6A/10A | ±(2.0%+10) | |
| DC Current | 600μA/6000μA/60mA/600mA | ±(1.5%+3) |
| 6A/10A | ±(3.0%+10) | |
| Resistance | 600Ω/6kΩ/60kΩ/600kΩ/6MΩ | ±(1.2%+5) |
| 60MΩ | ±(2.0%+5) | |
| Capacitance | 10nF/100nF/1000nF/10μF/100μF/1000μF/10mF | ±(3.0%+3) |
| Frequency | 10Hz/100Hz/1000Hz/10kHz/100kHz/1000kHz/10MHz | ±(1.0%+5) |
| Duty | 1%~99% | ±3.0% |
| Temperature(℃/℉) | -20℃~1000℃ | ±(2.0%+2) |
| -4℉~1832℉ | ±(2.0%+2) | |
| FEATURE | ||
| Display | 6000 Counts | |
| Interface | USB Interface | |
| Auto and manual range | √ | |
| True RMS | √ | |
| Data hold | √ | |
| bargraph display | √ | |
| MAX/MIN | √ | |
| Relative Measurement | √ | |
| Continuity | √ | |
| Back light | √ | |
| Transistor | √ | |
| Diode test | √ | |
| GENERAL | ||
| Power Supply | 4×1.5V AA Batteries | |
| Weight | Approx. 580g | |
| Size | 204mm×93mm×57mm | |
| Safety Rating | EN61010-1,EN61010-2-033, EN61326,CAT.Ⅲ 1000V | |
