Quick Details
-
Voltage:
-
380V
-
Power:
-
5.5KW
-
Weight:
-
500 KG
-
Dimension(L*W*H):
-
800x800x1500mm
-
Product name:
-
High capacity vacuum quantitative meat sausage filler stuffer machine
-
Key Words:
-
sausage stuffer machine
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Material:
-
304 Stainless Steel
-
Cylinder capacity:
-
150-220L
-
Application:
-
Sausage Processing Industrial
-
vacuum:
-
-0.08Mpa
-
Function:
-
Sausage Stuffing Stuffer Machine
-
Filling and twisting speed:
-
Infinitely adjustable-speed
-
Package:
-
Plywood Standard
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
OCEAN MACHINE
-
Production Capacity:
-
3200-6500KG/H
-
Voltage:
-
380V
-
Power:
-
5.5KW
-
Weight:
-
500 KG
-
Dimension(L*W*H):
-
800x800x1500mm
-
Product name:
-
High capacity vacuum quantitative meat sausage filler stuffer machine
-
Key Words:
-
sausage stuffer machine
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Material:
-
304 Stainless Steel
-
Cylinder capacity:
-
150-220L
-
Application:
-
Sausage Processing Industrial
-
vacuum:
-
-0.08Mpa
-
Function:
-
Sausage Stuffing Stuffer Machine
-
Filling and twisting speed:
-
Infinitely adjustable-speed
-
Package:
-
Plywood Standard

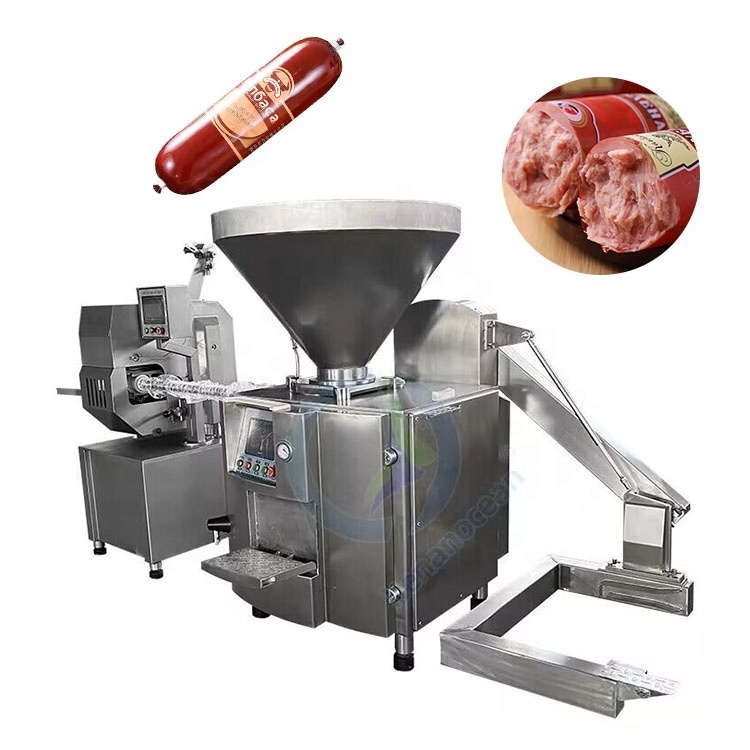

Electric High Capacity Vacuum Sausage Stuffer Linker Sausage Tying Machine Meat Quantitative Filling Machine
Ms Wendy Zhou Telephone:+86-13283956135 Email: wendy@chinaocmachine.com
Product Description
Introduction
1.The machine is driven by servo motor and equipped with vacuum system for filling and kinking. The packing and filling process iscarried out under vacuum condition.The machine is equipped with man-machine interface, servo motor, reducer, PLC controller alladopt imported parts, equipped with hoist, can automatically feed, save manpower.
2. This machine adopts blade type (scraper type) filling method, automatic quantitative and fractional, can be connected withdouble card machine,become filling and punching automatic production line.The filling process is completed in the vacuum state,which can effectively prevent fat oxidation, avoid protein hydrolysis, effectively ensurethe product shelf life, bright color and mellow taste.
3. The pump body, impeller and blade of this machine adopt special heat treatment technology, high finish, good wear resistance,and easy to clean.The normal chyme error is not more than ±1.5g.Normal block product error is not more than ±3g. Quantitativerange is 5-999g with direct flow of 6500kg/h.
4. The machine has the function of automatic kinking, suitable for the products of natural casing, protein casing and smokedcasing.Fumigation film kinks the fastest 400 times/min. .
2. This machine adopts blade type (scraper type) filling method, automatic quantitative and fractional, can be connected withdouble card machine,become filling and punching automatic production line.The filling process is completed in the vacuum state,which can effectively prevent fat oxidation, avoid protein hydrolysis, effectively ensurethe product shelf life, bright color and mellow taste.
3. The pump body, impeller and blade of this machine adopt special heat treatment technology, high finish, good wear resistance,and easy to clean.The normal chyme error is not more than ±1.5g.Normal block product error is not more than ±3g. Quantitativerange is 5-999g with direct flow of 6500kg/h.
4. The machine has the function of automatic kinking, suitable for the products of natural casing, protein casing and smokedcasing.Fumigation film kinks the fastest 400 times/min. .
|
Vacuum Sausage Stuffer Machine
|
Vacuum Quantitative Sausage Filler Machine
|
|
|
Type
|
OC-ZG3200
|
|
|
Power
|
5.5kw
|
|
|
Bucket volume
|
150L
|
|
|
Degree of vacuum
|
-0.1MPA
|
|
|
Direct irrigation capacity
|
3200KG/H
|
|
|
External diameter
|
800x800x1500MM
|
|
|
Weight
|
500KG
|
|
|
Sausage Sealing Clipper Machine
|
Sausage Sealing Clipper Machine
|
|
|
Model
|
CCK-120
|
|
|
Maximum speed
|
120 knot/min
|
|
|
Air source
|
0.5-0.6MPA
|
|
|
Air consumption
|
0.3MPA
|
|
|
Power
|
220V 50HZ
|
|
|
Casing fold diameter
|
35-120mm
|
|
|
Center height
|
1000mm
|
|
|
Total power
|
2.7kw
|
|
|
Boundary dimension
|
950*830*1800mm
|
|
|
Weight
|
450kg
|
|
