large diameter hot shrink tube heavy duty wall cable sleeve with glue
large diameter hot shrink tube heavy duty wall cable sleeve with glue
large diameter hot shrink tube heavy duty wall cable sleeve with glue
large diameter hot shrink tube heavy duty wall cable sleeve with glue
large diameter hot shrink tube heavy duty wall cable sleeve with glue
large diameter hot shrink tube heavy duty wall cable sleeve with glue
large diameter hot shrink tube heavy duty wall cable sleeve with glue
large diameter hot shrink tube heavy duty wall cable sleeve with glue

large diameter hot shrink tube heavy duty wall cable sleeve with glue

FOB Reference Price: Get Latest Price
≥50 Pieces
US $5.5
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Rated Voltage:
1KV
Tensile Strength:
14MPa
Color:
Black
Thickness:
4.3mm
Shrink ratio:
3:1
Size:
105mm
Product name:
Heavy wall heat shrink tubing
Feature:
Heat-Resistant
Certification:
ROHS
Usage:
Oil Pipeline
Sample:
Sample Avaliable
Length:
1220mm

Quick Details

Place of Origin:
Guangdong, China
Brand Name:
Dicore
Model Number:
WHST-A
Rated Voltage:
1KV
Tensile Strength:
14MPa
Color:
Black
Thickness:
4.3mm
Shrink ratio:
3:1
Size:
105mm
Product name:
Heavy wall heat shrink tubing
Feature:
Heat-Resistant
Certification:
ROHS
Usage:
Oil Pipeline
Sample:
Sample Avaliable
Length:
1220mm
Product Description

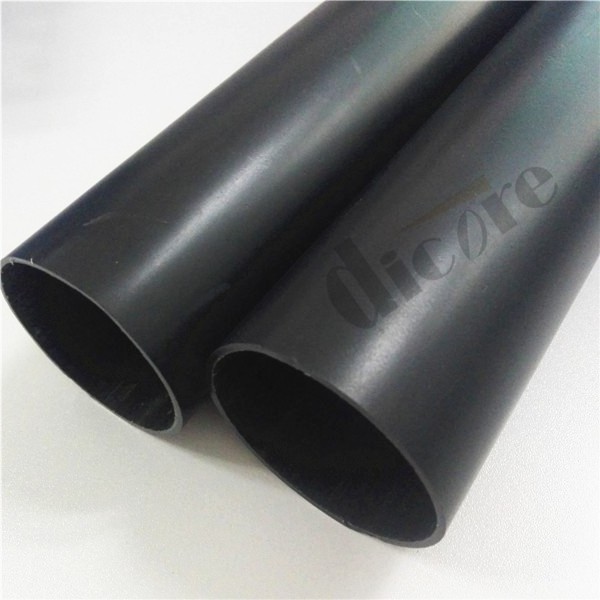

Model : WHST-A-105/30  or WHST-105/30 ( without glue )

As supplied inside diameter  :105mm

After recovered inside diameter : 30mm

Wall thickness : 4.3mm

Standard length : 1220mm /pc


Heat shrink tube supplier is heavy wall heat shrink tubings with hot melt adhesive .


Excellent insulating

Environmental sealing

Resistant to impact and abrasion

High electrical insulation

Resistant to UV-radiation

Superior mechanical property

Minimum fully recovery temperature : 120℃


Applications to seal and protect electrical and communication connections

Providing excellent mechanical protection to cable joints and terminations

3:1 shrink ratio allows it easily fit over irregular shape and large connectors .

Apply for light cable and wire harnesses ,where requiring waterproofing protection of connector components ,and thus encapsulates and seals components contained within the tubing .

Specification
Normal size /mm
After recovered inside diameter /mm
Wall thickness /mm
Standard length mm/pc
9
3
1.8
1000-1500
13
4
2.4
1000-1500
22
6
2.7
1000-1500
33
8
3.2
1000-1500
40
12
4.1
1000-1500
45
12
4.1
1000-1500
55
16
4.1
1000-1500
75
22
4.1
1000-1500
85
25
4.3
1000-1500
95
30
4.3
1000-1500
105
30
4.3
1000-1500
130
36
4.3
1000-1500
160
50
4.3
1000-1500
180
50
4.3
1000-1500
200
60
4.3
1000-1500
Detailed Images
Technical Data
Property
Test
Typical Data
Operating temperature
IEC 216
-55℃ to 110℃
Tensile strength
ASTM D 2671
≥14MPa
Density
ASTM D 792
1.05g/cm3
Dielectric strength
IEC 243
≥20KV/mm
Copper stability
ASTM D 2671
Pass
Water absorption
ISO 62
< 0.15%
