Quick Details
-
Center Height (mm):
-
850 mm
-
Max.Transformer Capacity(kVA):
-
1650 kVA
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Darling Machinery
-
Motor Power (kw):
-
5
-
Weight (KG):
-
850
-
Dimension(L*W*H):
-
5200x2300x1600mm
-
Wire Diameter Range (mm):
-
0.2 - 3 mm
-
Product name:
-
toroidal transformer winding machine
-
Application:
-
transformer coil winding
-
Capacity:
-
bellow 1600kva
-
Wire diameter:
-
0.3-3mm toroidal transformer winding machine
-
Axis speed:
-
0-450 r.p.m toroidal transformer winding machine
-
Loading weight:
-
800kg toroidal transformer winding machine
-
Pricision:
-
0.01mm toroidal transformer winding machine
-
Power:
-
5.5kw toroidal transformer winding machine
-
Certification:
-
ISO9001 and CE toroidal transformer winding machine
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
After-sales Service Provided:
-
Field maintenance and repair service, Field installation, commissioning and training, Video technical support, Online support, Free spare parts
-
Local Service Location:
-
Egypt, Canada, Turkey, United States, France, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Malaysia, Australia, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Romania, South Africa, Kazakhstan, Ukraine, Nigeria, Uzbekistan
Quick Details
-
Max. Load (KG):
-
1000 KG
-
Coil Type:
-
round, rectangular, oval
-
Length of Axis (mm):
-
1250 mm
-
Center Height (mm):
-
850 mm
-
Max.Transformer Capacity(kVA):
-
1650 kVA
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Darling Machinery
-
Motor Power (kw):
-
5
-
Weight (KG):
-
850
-
Dimension(L*W*H):
-
5200x2300x1600mm
-
Wire Diameter Range (mm):
-
0.2 - 3 mm
-
Product name:
-
toroidal transformer winding machine
-
Application:
-
transformer coil winding
-
Capacity:
-
bellow 1600kva
-
Wire diameter:
-
0.3-3mm toroidal transformer winding machine
-
Axis speed:
-
0-450 r.p.m toroidal transformer winding machine
-
Loading weight:
-
800kg toroidal transformer winding machine
-
Pricision:
-
0.01mm toroidal transformer winding machine
-
Power:
-
5.5kw toroidal transformer winding machine
-
Certification:
-
ISO9001 and CE toroidal transformer winding machine
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
After-sales Service Provided:
-
Field maintenance and repair service, Field installation, commissioning and training, Video technical support, Online support, Free spare parts
-
Local Service Location:
-
Egypt, Canada, Turkey, United States, France, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Malaysia, Australia, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Romania, South Africa, Kazakhstan, Ukraine, Nigeria, Uzbekistan

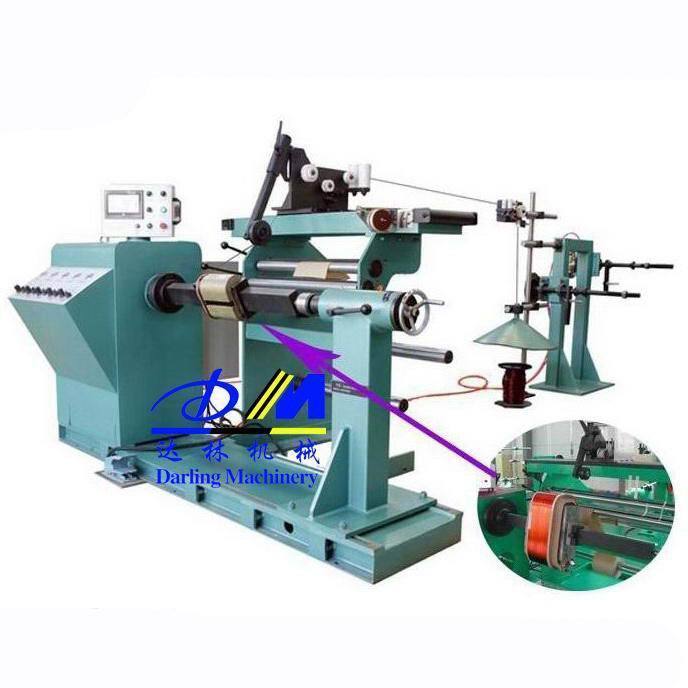

GRX-800 copper wire HV transformer automatic coil winding machine toroidal transformer winding machine
Watching machine working video directly ( Video link):
YouTube: https://youtu.be/UvcZYrjm_P0
QQ video: https://v.qq.com/x/page/i3218vvsss1.html
Baidu video: https://haokan.baidu.com/v?vid=4304951764462740042&bfe=1
main technology index
|
No. |
Item name |
Parameter |
|
1 |
Product type |
GRX-800 |
|
2 |
Max bearing weight(kg) |
≤1000 |
|
3 |
Main axis speed(r/min) |
0~570 |
|
4 |
Main axis center height(mm) |
850 |
|
5 |
Winding axis center distance(mm) |
500~1250 |
|
6 |
Motor power(kW) |
4 |
|
7 |
Rectangle coil diagonal length(mm) |
≤800 |
|
8 |
Working voltage AC (V) |
380±10%, 3 phase, 50HZ |
|
9 |
Air pressure(bar) |
5-6.5 |
|
10 |
Using range |
Outer dia.≤600mm,inner dia.≥80mm |
|
11 |
Max setting winding number of counting |
99999.9 |
|
12 |
Round wire or sheet wire, enamel covered wire or paper-covered wire |
2 sheet wire≤3×12mm Enamel covered wire 0.3mm-3mm |
|
13 |
Whole machine power(kw) |
About 5 |
|
14 |
Automatic winding function |
Min. diameter of modifying wire 0.01mm |
|
15 |
Stepping winding range(mm) |
0.1~5 |
|
16 |
Stepping precision(mm) |
0.01 |
main component and manufacture
|
Item |
Manufacture |
|
transformer |
Mitsubishi of Japan |
|
Can programming controller PLC |
Mitsubishi of Japan |
|
Human-computer interface (liquid touch screen) |
Mitsubishi of Japan |
|
RS-485 communication mould |
Mitsubishi of Japan |
|
RS-485 communication wire |
Mitsubishi of Japan |
|
RS-422 communication wire |
Mitsubishi of Japan |
|
Photonics coder |
Shanghai |
|
Electromagnetism braking 3 phase synchronization motor |
Wannan |
|
Foot-touch switch |
Taiwan |
|
AC contactor |
DELIXI or Schneider |
Our service
1, before sales: we will give you professional instruction and help you to buy the suitable machine, after you choose our machine, let you take the biggest profit through using our machine.
2, in sales: we will give you feedback informations about your order through photos and video. let you put your heart into stomach.
3, after sales: we will go to your factory to give you a training and teach you how to use our machine, or we will give you a video training. if there is our local agent and office, we will let our local engineer to your factory and give you a training.
4, our quality assurance: all our machine using life.
Getting Local office support, please contact with our company:
|
Shandong Darling Machinery Equipment Co., Ltd.
Add: Shacun Industry Park, Licheng District, Jinan City, China. Contact person: Martin Hoo +86-15253156158 (WhatsApp) Skype/Wechat: martinhoo936 QQ: 613252158 Website: www.darlingmachinery.com |
We will be the best partner
Although we live in different countries, our hearts are always together . We don ’ t only sell machine, we also sell service, technology and brand. One time cooperation, be friend forever!
Our cooperation is Double win results.
® Our aim is:
Through using our machine, you can make better product and earn more money !
FAQ:
1, are you manufacture or trading company?
we are manufacture more than 15 years, 3 branch factory, more than 10000 square meters.
2, how about your quality ?
we only sell high quality machine, we use the world famous brand component, like SIEMENS, MITSUBISHI, DELEM, PANASONIC, SCHNEIDER, ABB, etc. so there is no worry about our quality.
3, what about your after sales service ?
we go to your factory for site training or you can get local branch company traning, if there is no requirement, we can give you video training in other methods.
4, why do we must choose you as our supplier ?
customer real voice is your best reference, 5 stars customer feedback reviews, 100% high praise. those voice can let you to cooperate with us safely.
