Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Reacher/ OEM
-
Model Number:
-
65161
-
Torque:
-
12Nm
-
Working Voltage:
-
40-200v
-
Max RPM:
-
16200rpm
-
KV:
-
80,100,120,170,195,270
-
No Load Current @8.4V:
-
1.2A-2.5A
-
Max Power:
-
11.3KW
-
Peak Current (A):
-
250A
-
Max Efficiency:
-
>92%
-
Max Torque:
-
12Nm
-
Shaft Dimension:
-
D12*23mm+M8*25
-
Motor Demension:
-
D65*L161.5mm
Quick Details
-
Speed(RPM):
-
Max 16200rpm
-
Continuous Current(A):
-
180A
-
Efficiency:
-
IE 4
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Reacher/ OEM
-
Model Number:
-
65161
-
Torque:
-
12Nm
-
Working Voltage:
-
40-200v
-
Max RPM:
-
16200rpm
-
KV:
-
80,100,120,170,195,270
-
No Load Current @8.4V:
-
1.2A-2.5A
-
Max Power:
-
11.3KW
-
Peak Current (A):
-
250A
-
Max Efficiency:
-
>92%
-
Max Torque:
-
12Nm
-
Shaft Dimension:
-
D12*23mm+M8*25
-
Motor Demension:
-
D65*L161.5mm

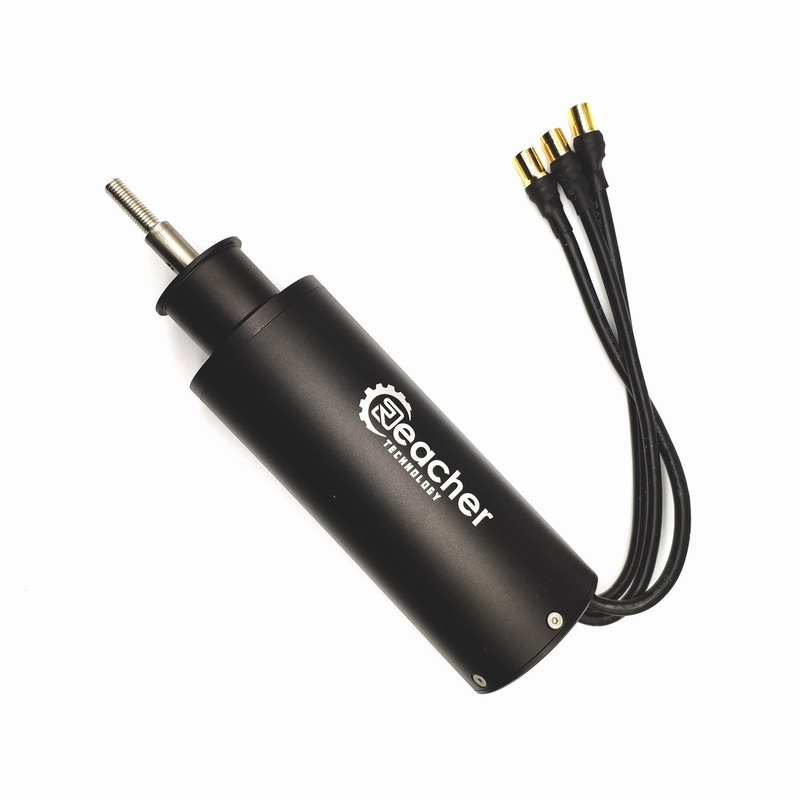

IP68 Waterproof 48V 6000W Brushless Dc Motor For E-foil RTD65L161
Please Note IP68 waterproof Version motor can be only work under the water directly for cooling. If you work in the air, the max.power should decreased around 30-40%, so suggest you try with watercooling jacket version.
Please Note IP68 waterproof Version motor can be only work under the water directly for cooling. If you work in the air, the max.power should decreased around 30-40%, so suggest you try with watercooling jacket version.
The Reacher Tech RTD65L161 Brushless DC Motor is designed for surfboard, Jet Board,electric foil,surfboard hydrofoil, small boat and so on.
Smaller Size,Space Saving. Lighter Weight, Quick Response. Low Price, High Performance-Price Ratio.
Smaller Size,Space Saving. Lighter Weight, Quick Response. Low Price, High Performance-Price Ratio.
|
RT Motor
|
D65L161-270
|
D65L161-195
|
D65L161-170
|
D65L161-120
|
D65L161-100
|
D65L161-80
|
|||||
|
Construction
|
18N/6P
|
18N/6P
|
18N/6P
|
18N/6P
|
18N/6P
|
18N/6P
|
|||||
|
Winding Turns
|
2T-D
|
3T-D
|
2T
|
3T
|
4T
|
5T
|
|||||
|
Working Voltage
|
40-60V
|
40-84V
|
40-92.4V
|
40-134.4V
|
50-160V
|
60-200V
|
|||||
|
Max RPM
|
16200
|
15960
|
15708
|
16128
|
16000
|
16000
|
|||||
|
KV
|
270
|
190
|
170
|
120
|
100
|
80
|
|||||
|
No Load Current @8.4V
|
2.5A
|
2.4
|
2.2
|
2.0A
|
1.5A
|
1.2A
|
|||||
|
Max Power
|
9.3KW
|
9.6KW
|
10.7KW
|
11.3KW
|
11KW
|
10.2KW
|
|||||
|
Peak Current (A)
|
250
|
180
|
180
|
130
|
110
|
90
|
|||||
|
Max Efficiency
|
>92%
|
>92%
|
>92%
|
>92%
|
>92%
|
>92%
|
|||||
|
Net Weight (kg)
|
2.5
|
2.5
|
2.5
|
2.5
|
2.5
|
2.5
|
|||||
|
Stator Dimension(mm)
|
OD 61.5 ID34 L100
|
OD 61.5 ID34 L100
|
OD 61.5 ID34 L100
|
OD 61.5 ID34 L100
|
OD 61.5 ID34 L100
|
OD 61.5 ID34 L100
|
|||||
|
Motor Dimension(mm)
|
D65.5*L161.5
|
D65.5*L161.5
|
D65.5*L161.5
|
D65.5*L161.5
|
D65.5*L161.5
|
D65.5*L161.5
|
|||||
|
Shaft Dimension
|
D12*23mm
+M8*25 |
D12*23mm+
M8*25 |
D12*23mm+
M8*25 |
D12*23mm+
M8*25 |
D12*23mm+
M8*25 |
D12*23mm+
M8*25 |
|||||
|
Max Torque（Kg*cm)
|
84kg*cm
|
86kg*cm
|
125.5kg*cm
|
128kg*cm
|
128kg*cm
|
125kg*cm
|
|||||
|
Max Torque（N*M)
|
8.2N*M
|
8.4N*M
|
12.3N*M
|
12.5N*M
|
12.5N*M
|
12..8N*M
|
|||||
|
KV
|
80,100,120,170,195,270
|
|
|
|
|
|
|||||
|
No Load Current @8.4V
|
1.2A-2.5A
|
|
|
|
|
|
|||||
|
Max Power
|
11.3KW
|
|
|
|
|
|
|||||
|
Peak Current (A)
|
250A
|
|
|
|
|
|
|||||
|
Max Efficiency
|
>92%
|
|
|
|
|
|
|||||
|
Max Torque
|
12Nm
|
|
|
|
|
|
|||||
|
Shaft Dimension
|
D12*23mm+M8*25
|
|
|
|
|
|
|||||
|
Motor Demension
|
D65*L161.5mm
|
|
|
|
|
|
|||||
