Quick Details
-
Voltage:
-
110V/220/380V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
INQI
-
Model Number:
-
1600(220 drum)
-
Use:
-
fabric
-
Dimensions(L*W*H):
-
2.26*0.69*1.37m
-
Weight:
-
450 KG
-
Platen Size:
-
1500mm
Quick Details
-
Condition:
-
New
-
Plate Type:
-
Flatbed Printer
-
Color & Page:
-
Multicolor
-
Voltage:
-
110V/220/380V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
INQI
-
Model Number:
-
1600(220 drum)
-
Use:
-
fabric
-
Dimensions(L*W*H):
-
2.26*0.69*1.37m
-
Weight:
-
450 KG
-
Platen Size:
-
1500mm
Products Description

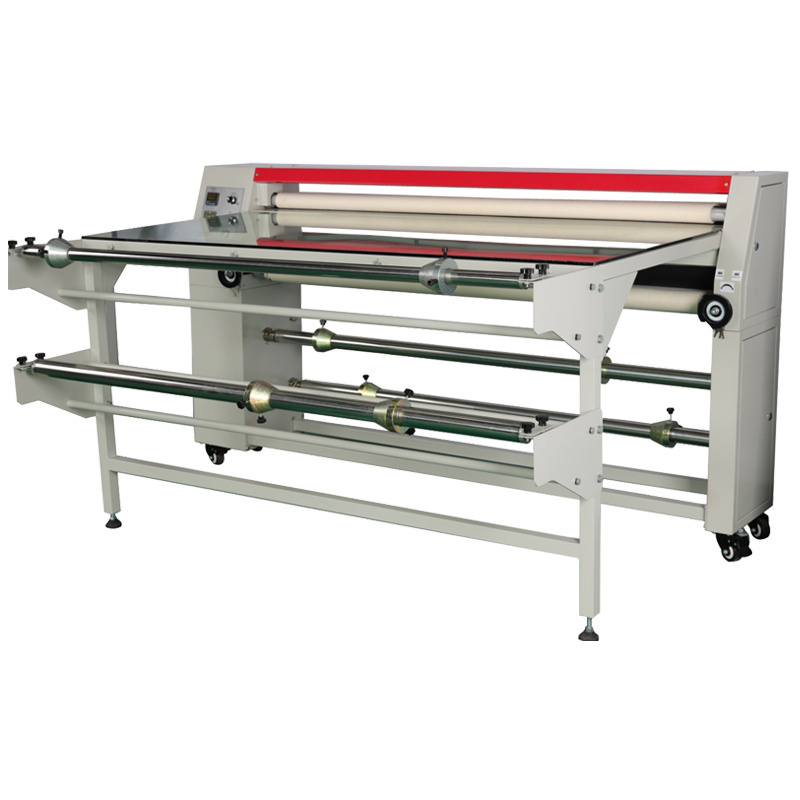

1. this is electric type roll heat transfer machine with table, the working width is 1.6m.
2. The diameter of the durm is 220mm, can be optional the 270mm durm, please contact us for more detail.
3. The machine can make 110/220/380V, please confirm what power supply that you use In your country.
4. The machine is with 2pcs heating tube, can be optional 6pcs heating tube.
5. Machine with export wooden packing which is suitable for export.
6. Machine with CE certificate.
|
Parameter for 220mm durm roller heat transfer machine
|
|
|
||
|
Model
|
1200-220durm
|
1600-220durm
|
||
|
Machine size
|
1020*2100*1120mm
|
1420*2100*1120mm
|
||
|
Heating method
|
Electric heat pipe heating
|
Electric heat pipe heating
|
||
|
Diameter of cylinder
|
220mm
|
220mm
|
||
|
The roll surface
|
Teflon coating
|
Teflon coating
|
||
|
Power supply
|
220V/380V
|
220V/380V
|
||
|
Heating power
|
5.2KW
|
7.2KW
|
||
|
Total power
|
5.3KW
|
7.3KW
|
||
|
Speed
|
20-80m/hour
|
20-80m/hour
|
||
|
Temperature range
|
30-250 degree
|
30-250 degree
|
||
|
Width of Blanket
|
1220mm
|
1620mm
|
||
|
Heat transfer material width
|
1100mm
|
1500mm
|
||
|
Feeding system
|
2sets
|
2sets
|
||
|
Take up system
|
2sets
|
2sets
|
||
|
Table size
|
1100*1370*920mm
|
1100*1770*920mm
|
||
|
Blanket adjustment form
|
Manual adjustment
|
Manual adjustment
|
||
|
Machine weight
|
350kg
|
450kg
|
||
|
Packing size
|
1.85*0.69*1.34m
|
2.26*0.69*1.37m
|
||
|
Parameter for 270mm durm roller heat transfer machine
|
|
|
||
|
Model
|
1200-270durm
|
1600-270durm
|
||
|
Machine size
|
1060*2100*1120mm
|
1460*2100*1120mm
|
||
|
Heating method
|
Electric heat pipe heating
|
Electric heat pipe heating
|
||
|
Diameter of cylinder
|
270mm
|
270mm
|
||
|
The roll surface
|
Teflon coating
|
Teflon coating
|
||
|
Power supply
|
220V/380V
|
220V/380V
|
||
|
Heating power
|
6.2KW
|
8.2KW
|
||
|
Total power
|
6.5KW
|
8.5KW
|
||
|
Speed
|
20-100m/hour
|
20-100m/hour
|
||
|
Temperature range
|
30-250 degree
|
30-250 degree
|
||
|
Width of Blanket
|
1220mm
|
1620mm
|
||
|
Heat transfer material width
|
1100mm
|
1500mm
|
||
|
Feeding system
|
2sets
|
2sets
|
||
|
Take up system
|
2sets
|
2sets
|
||
|
Table size
|
1100*1370*960mm
|
1100*1770*960mm
|
||
|
Blanket adjustment form
|
Manual adjustment
|
Manual adjustment
|
||
|
Machine weight
|
500kg
|
500kg
|
||
|
Blanket deviation alarm
|
for optional
|
for optional
|
||
|
Automatic cooling
|
for optional
|
for optional
|
||
|
Machine weight
|
550kg
|
650kg
|
||
|
Packing size
|
1.85*0.76*0.1.37m
|
2.26*0.76*1.37m
|
||
