Silicone Glue Dispensing Gluing Machine for Keyboard

Silicone Glue Dispensing Gluing Machine for Keyboard

FOB Reference Price: Get Latest Price

≥1 Pieces

US $6400

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Weight:: 60 KG

Dimensions:: 485 x 505 x 610 mm

XYZ Robot Working Area:: 300/300/100mm

Certification:: CE Approved

X&Y/Z Axis speed:: 0.1~800/500mm/sec

Motion Control::: PTP&CP

Drive System:: micro stepping motor

Resolution:: 0.01mm/axis

interpolation function:: 3Axis

Max load Y/Z Axis:: 10kg/5kg

Color:: White

Quick Details

Voltage:: 220V

Place of Origin:: Guangdong, China

Brand Name:: Y&D

Weight:: 60 KG

Dimensions:: 485 x 505 x 610 mm

XYZ Robot Working Area:: 300/300/100mm

Certification:: CE Approved

X&Y/Z Axis speed:: 0.1~800/500mm/sec

Motion Control::: PTP&CP

Drive System:: micro stepping motor

Resolution:: 0.01mm/axis

interpolation function:: 3Axis

Max load Y/Z Axis:: 10kg/5kg

Color:: White

Products Description

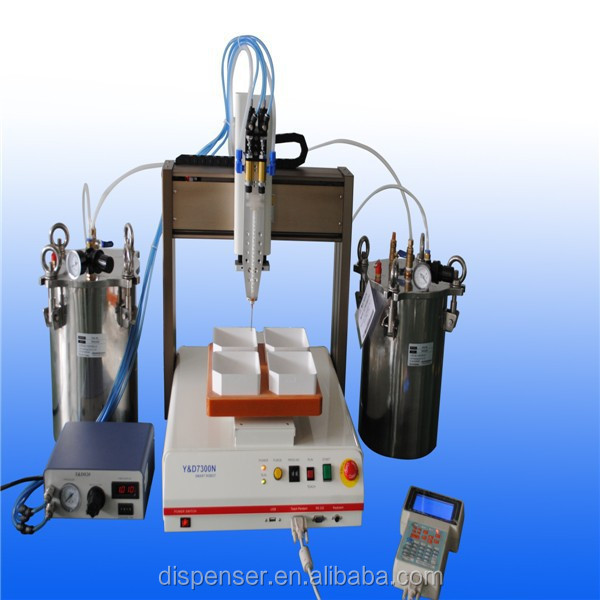

2 part RTV silicone dispenser for adhesive epoxy silicone urethane

Keywords: liquid dispensers, dispensing robots, dispensing valves, dispensing controller, dispensing Reservoir Tanks

Details

Product Paramenters

Gauge/Mode	Y&D7200N	Y&D7300N	Y&D7400N	Y&D7500N	Y&D7600N
Working Range	200/200/50	300/300/100	400/400/100	500/500/100	600/500/100
Max Load Y/Z	5kg/3kg	11kg/6kg
Speed X&Y/Z	500/350	800/350 (mm/sec)
Repetive Positioning Accuracy	+/-0.02mm/Axis
Program Capacity	Min 100 Group, 4000 points/group
Data Storage Type	CF Card
Byte	32bit
Program Display	LCD
Motor System	Japan micro stepping motor
Mode of transmission	synchronous belt	X/Y Axis synchronous belt, Z Axis precision ball screw
Interpolation Function	3 Axis
Teaching Method	Teach Pendant
I/O Signals Port	8 Inputs/ 8 Outputs
External Control	RS232
Power Supply	AC100-230V 300W
Working Temperature	10-40℃
Working Relative Humidity	20-90% no condensation
Dimensions (mm)	385380500	485505610	585610610	685700610	785700610
Robot Weight	23kg	34kg	41kg	52kg	56kg

Applied glue or liquid

Silica gel, EMI conductive adhesive, UV glue, AG glue, Fast dry glue, epoxy adhesive, sealant, hot glue, grease, silver glue, red glue, solder paste, cooling paste, prevent solder paste, transparent lacquer, screw fixation agent, epoxy resin, instant glue, thermal compound, anti-solder paste, paint, etc.

Applied Industry

Wireless communication, electronics, semi-conductor, automobile, medical machinery, chemical industry, artware, etc.

The stainless steel pressure tank

1)The barrel body and lid are made of stainless steel so that not prone to react with chemical substances and not easy to deform

2)Surface polishing, good sealing, applied to general liquid.

3)Equipped with the safety valve of automatic pressure relief device, high- pressure resistance

4)When using, you can directly put the original package of glue into the barrel, and no need to clean after using, easy to maintain.

5)If you demand other specifications, please consult us in advances.

Application Range

Automobile mechanical parts coating, cell phone buttons point glue, mobile phone battery packaging, laptop battery packaging, the coil point glue, PCB bonding/ sealing, IC bonding/ sealing, horn external punctuate glue, PDA sealing, LCD sealing, IC packaging, casing bonding, optical device processing, mechanical sealing, ink clip, LED, DVD, digital cameras, switches, connectors, radiators, semiconductor and other electronics, clocks, toys, medical equipment, etc.

Main Uses

1) Processing with bonding, infusion, coating, sealing, filling, drop, linear/ arc/ round gluing, etc.
2) Dispense in point, line, surface, arc, circle and irregular curve, and triaxial linkage function is available.
3) Set the amount of glue size, glue speed, glue time, stop glue time, glue stability, no glue leakage

4) The plate multi - jigs work in circulation, effectively improve the working efficiency

5) AB glue dispense based on 1:1
