Weight: 23.5kg
Modules per box: 36pcs
Modules per 40' container: 936pcs
- Product Details
- {{item.text}}
Quick Details
-
Warranty:
-
25 YEARS
-
Brand Name:
-
SunEvo
-
Model Number:
-

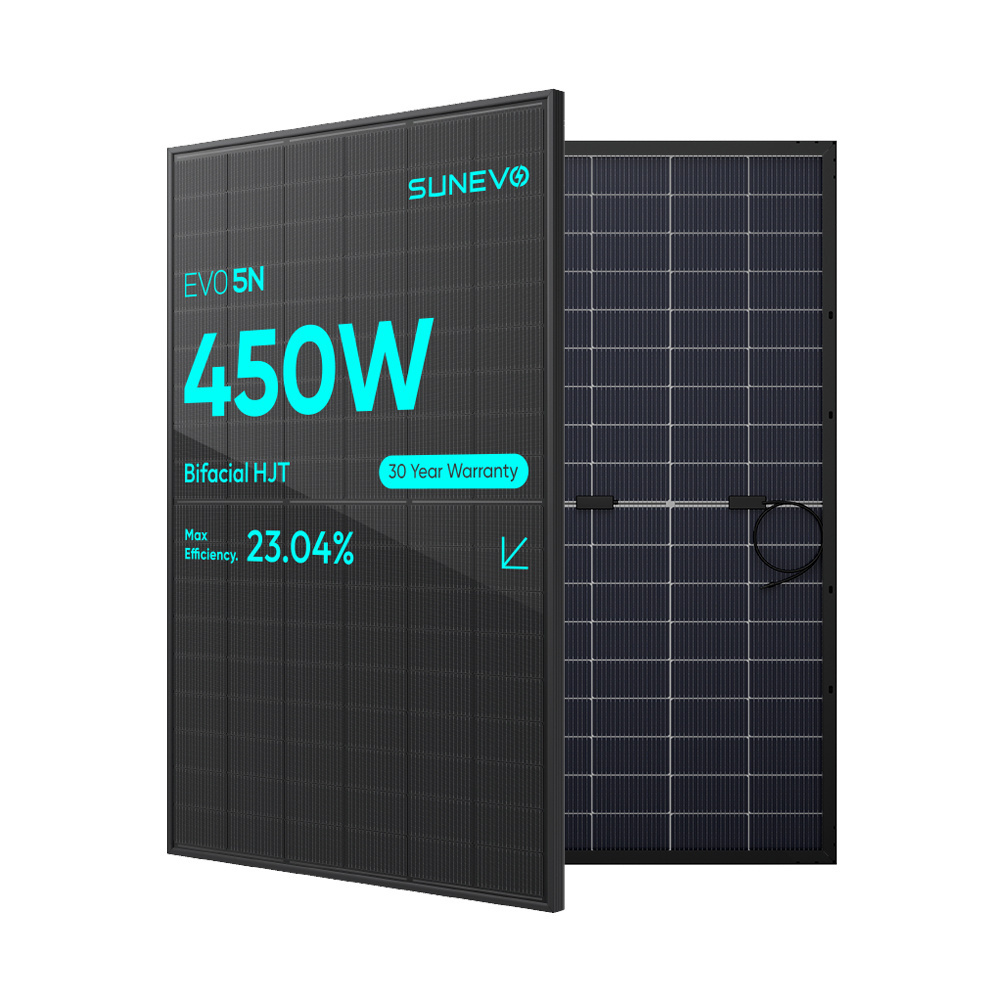

Evo 5N 108cells 430-450W
-
Place of Origin:
-
Anhui, China
-
Panel Dimensions:
-
1722 * 1134 * 35mm
-
Solar Cells:
-
HJT Mono 182*91mm
-
No. of Cells:
-
108 (6*18)
-
Dimensions:
-
1722 * 1134 * 35mm
-
Glass:
-
2.0mm coated semi-tempered glass
-
Frame:
-
Anodized aluminium alloy
-
Junction Box:
-
IP68 Rated, 3 Diodes
-
Cable:
-
4mm2, 300mm (+) / 300mm (-) or Customized
-
Connector:
-
MC Compatible
-
Packaging:
-
36pcs/box, 936pcs/40'HQ
-
Certificate:
-
CE / CB / TUV
Quick Details
-
Cell size:
-
182mmx182mm
-
Type:
-
PERC, Half Cell, Bifacial, Double-glass, All Black, HJT, N-TYPE
-
Panel Efficiency:
-
23%
-
Warranty:
-
25 YEARS
-
Brand Name:
-
SunEvo
-
Model Number:
-
Evo 5N 108cells 430-450W
-
Place of Origin:
-
Anhui, China
-
Panel Dimensions:
-
1722 * 1134 * 35mm
-
Solar Cells:
-
HJT Mono 182*91mm
-
No. of Cells:
-
108 (6*18)
-
Dimensions:
-
1722 * 1134 * 35mm
-
Glass:
-
2.0mm coated semi-tempered glass
-
Frame:
-
Anodized aluminium alloy
-
Junction Box:
-
IP68 Rated, 3 Diodes
-
Cable:
-
4mm2, 300mm (+) / 300mm (-) or Customized
-
Connector:
-
MC Compatible
-
Packaging:
-
36pcs/box, 936pcs/40'HQ
-
Certificate:
-
CE / CB / TUV
Solar Panel Detail
|
Module Type: SE5-54H
|
430
|
435
|
440
|
445
|
450
|
|
Maximum Power (Pmax/W)
|
430
|
435
|
440
|
445
|
450
|
|
Module Efficiency (%)
|
22.02
|
22.28
|
22.53
|
22.79
|
23.04
|
|
Optimum Operating Voltage (Vmp/V)
|
33.49
|
33.75
|
34.01
|
34.26
|
34.51
|
|
Optimum Operating Current (lmp/A)
|
12.84
|
12.89
|
12.94
|
12.99
|
13.04
|
|
Open Circuit Voltage (Voc/V)
|
40.3
|
40.56
|
40.83
|
41.09
|
41.34
|
|
Short Circuit Current (lsc/A)
|
17.31
|
17.37
|
17.43
|
17.49
|
17.55
|
Products Series
430 - 450 Watt
Cells Layout:
108 Half Cells
(6×18)Dimensions:
1722 x 1134 x 30/35mm
Weight: 23.5kg
Modules per box: 36pcs
Modules per 40' container: 936pcs
Weight: 23.5kg
Modules per box: 36pcs
Modules per 40' container: 936pcs
480 - 500 Watt
Cells Layout:
120 Half Cells
(6×20)Dimensions:
1910 x 1134 x 30/35mm
Weight: 26.0kg
Modules per box: 36pcs
Modules per 40' container: 864pcs
Weight: 26.0kg
Modules per box: 36pcs
Modules per 40' container: 864pcs
580 - 600 Watt
Cells Layout:
144 Half Cells
(6×24)Dimensions:
2279 x 1134 x 30mm
Weight: 31.5kg
Modules per box: 36pcs
Modules per 40' container: 720pcs
Weight: 31.5kg
Modules per box: 36pcs
Modules per 40' container: 720pcs
Certifications
Smart Manufacturing
Modularized fully automated production lines enable fast delivery and cost savings. To achieve high utilization rate and efficiency, SunEvo divided the whole production chain into separate but closely united automated production sectors. Over 40 patents are applied on production process optimization, which could effectively avoid manual errors and make sure all the production processes from raw material inspection to packing are all monitored online and saved for later use. This system ensures that the materials from the beginning of production to the packaging is all monitored online.
Quality Control
Stringent quality control is the cornerstone of SunEvo's manufacturing. Our customers have come to expect uncompromising quality standards in our products. To meet this expectation of high quality, we continue to invest in state-of-the art equipment and professional training of our employees . We are proud of our product quality and their reliable performance even in the most extreme conditions. SunEvo has received certifications for Quality Management System (ISO 9001:2015), Environment Management System (ISO 14001:2015) and Occupational Health and Safety Management System (ISO45001:2018) from both DNV GL and GZCC.
Solar Cell String EL Testing
Each solar PV cell string must be tested by EL machine to ensure every single solar cell is perfect.
Each Solar Module must be tested by EL machine before lamination to ensure every solar cell string is perfect.
Each Solar Module must be inspected by QC after lamination to ensure there is no defect during lamination.
Final EL Testing 100% ensure zero intenal electric defect for each solar module.
Output power testing ensure 100% positive power tolerance and excellent power performance.
Each Solar Module must be inspected by QC before packaging to ensure there is no defect during production process.
Product Packaging
Global Project Case
Utility Scale
With years of professional experience, SunEvo can provide you the perfect module product for your perfect projects so as to maximize your benefits of investments.
Commercial
Either self-consumption or selling to the grid, commercial projects provide system owners with a new way of investment, in which module plays a key role. And SunEvo was, is, and will always be a reliable partner which you won`t regret to choose.
Residential
Thousands of houses around the globe are equipped with SunEvo solar panel systems, so they can now enjoy the clean power with a lower electricity bill and moreover, make profits from them.
OEM & ODM Services
Laminated Logo
Laminated Barcode
Product Label
Module Package
Specification Datasheets
Marketing Material
Contact Us
FAQ
Q1: Why choose Us?
A1:We are a professional factory leader in the PV industry, we offer solar photovoltaic system one-stop services with competitive prices and fast delivery time and we insure our quality is second to none.
* Higher power generation
* Competitive price
* High quality standard
* Customized service
Q2:
What kind of certification you have?
---ISO9001,ISO14001, CE,ROHS,UL,
TUV,
IEC,
ISO
and so on
---All series product pass different labor testing according to different countries’ requirements.
Q3:What about the lead time?
A2: Firstly,let us know your requirements or application. Secondly,We quote according to your requirements or our suggestions. Thirdly,customer confirms the samples and places deposit for formal order. Fourthly,We arrange the production.
Q4:
What home appliances can it load ?
For total 5.5kw solar system,it can load air-Condition, fridge, TVs, fans, lights, phone charge, computer,etc.
:
Q5:
How to choose a right inverter?
A2: Tell us your demand, then our sales will recommend a suitable inverter to you.
If you want to know more information, you can send inquiry to our team, we will cover more details.
