Quick Details
-
Warranty:
-
1 year
-
Brand Name:
-
SEAFLO
-
Model Number:
-
SFDPA1-015-120-36
-
Place of Origin:
-
Fujian, China
-
Outlet Size:
-
3/8"-18 FNPT
-
Max Flow Rate:
-
1.5 GPM [5.5 LPM]
-
Max Pressure:
-
120 PSI [8.3 Bar]
-
Switch Type:
-
By Pass
-
Diaphragm Material:
-
Santoprene
-
Self Priming:
-
6' [1.8 m] Suction
-
Max Fluid Temp.:
-
140 °F [60 °C]
-
Duty Cycle:
-
Continuous
-
Usage:
-
Water, Sprayer, Irrigation
-
Fuel:
-
Battery, Solar Power or Transformer
-
Certification:
-
RoHS,ce
Quick Details
-
Application:
-
Drinking water treatment, Family Homes, Food and Beverage Industry, Irrigation and Agriculture, Marine, Washing and Cleaning, Water Distribution
-
Pressure:
-
High pressure
-
Voltage:
-
110 / 220 V DC
-
Warranty:
-
1 year
-
Brand Name:
-
SEAFLO
-
Model Number:
-
SFDPA1-015-120-36
-
Place of Origin:
-
Fujian, China
-
Outlet Size:
-
3/8"-18 FNPT
-
Max Flow Rate:
-
1.5 GPM [5.5 LPM]
-
Max Pressure:
-
120 PSI [8.3 Bar]
-
Switch Type:
-
By Pass
-
Diaphragm Material:
-
Santoprene
-
Self Priming:
-
6' [1.8 m] Suction
-
Max Fluid Temp.:
-
140 °F [60 °C]
-
Duty Cycle:
-
Continuous
-
Usage:
-
Water, Sprayer, Irrigation
-
Fuel:
-
Battery, Solar Power or Transformer
-
Certification:
-
RoHS,ce
| Features & Benefits |
|
1.Flow rate up to 1.8 GPM [6.8 LPM]
3.Ignition Protection 5.Quiet operation 7.By pass use |
2.Can run dry without damage
|

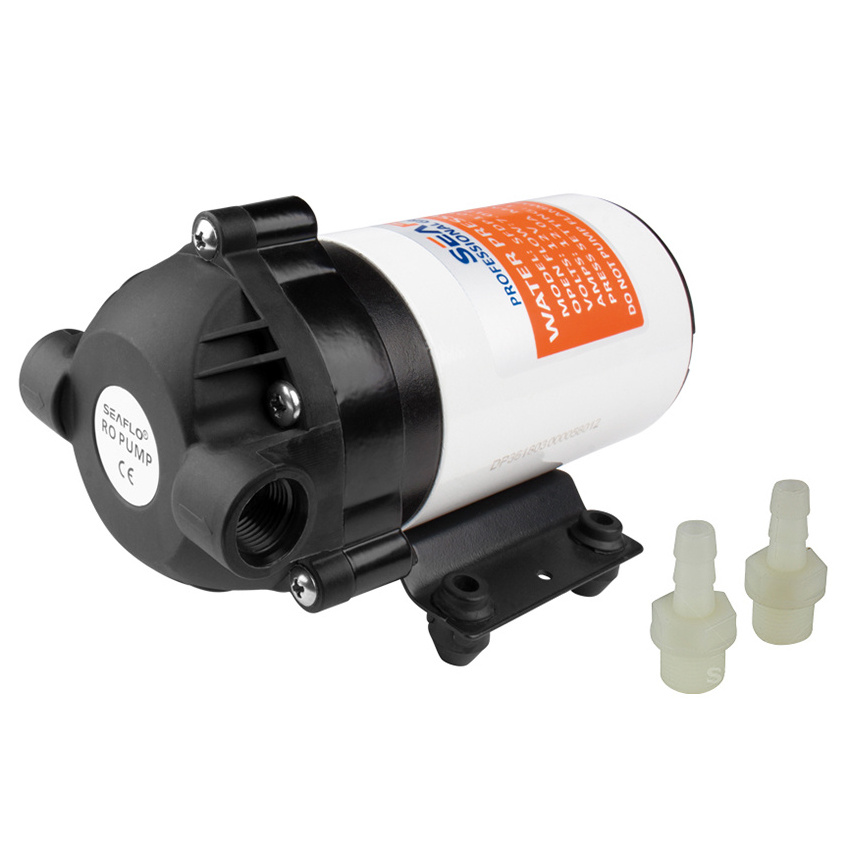

| Product Name | SEAFLO Micro Diaphragm Water Pump Food and Beverage Pumps ce |
| Pump Type | 3 Chambers Positive Displacement Diaphragm Pump |
| Max Flow Rate | 1.5 GPM [5.5 LPM] |
| Max Pressure | 120 PSI [8.3 Bar] |
| Voltage | 12 VDC, and 24V, 115V, 230V are available |
| Max Amp | 12.0 A |
| Fuse | 18.0 A |
| Switch Type | By Pass, and none switch is available |
| Diaphragm Material | Santoprene |
| Valve Material | Fluororubber, and EPDM is available |
| Duty Cycle | Continuous |
| Self Priming | 6' [1.8 m] suction |
| Max Fluid Temp | 140 °F [60 °C] |
| Inlet & Outlet Port | 3/8"-18 FNPT, and contact us for more ports |
| Lead | 8" [20 cm] 16 AWG lead |
The 36 Series is our continuous-duty on-demand positive displacement pump. It provides reliable performance in moderate water flow, high-pressure applications. This 3-chamber diaphragm pump provides up to 1.8 gallons per minute and is capable of self-priming up to 6 vertical feet, and can run dry without damage. They are easy to install, service and winterize.
| Product Show |
| Dimensions |
| Performance |
lacking
| Motor Heat Rise |
| Product Details |
Standard Pump Configurations
| Model | Voltage |
Open Flow GPM [LPM] |
Cut off Pressure PSI [BAR] |
Max Draw | Diaphragm | Valve |
| SFDP1-015-120-36 | 12 V | 1.5 [5.5] | 120 [8.3] | 10.0 A | Santoprene | EPDM |
| SFDP2-015-120-36 | 24 V | 1.5 [5.5] | 120 [8.3] | 5.0 A | Santoprene | EPDM |
| SFDPA1-015-120-36 | 110 V | 1.5 [5.5] | 120 [8.3] | 0.94A | Santoprene | EPDM |
| SFDPA2-015-120-36 | 220 V | 1.5 [5.5] | 120 [8.3] |
0.61A |
Santoprene | EPDM |
OEM/ODM service: Cut off pressure can be adjusted from 17 PSI [1.17 Bar] to 160 PSI [11.00 Bar] ; Open flow can be adjusted from 0.5GPM [2.0 LPM] to 2.1 GPM [8.0 LPM]. Material can be adjusted according to your requirement.
Package Infomation
| Unit Pump Weight | 4.94 lbs [2.24 kg] | |
| Selling Unit Size (L x W x H) |
11.39" x 4.64" x 4.72" [28.8 x 11.8 x 12.0 cm] |
|
| Selling Unit Weight | 5.16 lbs [2.55 kg] | |
| Master Carton Qty | 8 pcs / carton | |
| Master Carton Size (L x W x H) |
23.62" x 11.81" x 14.57" [60.0 x 30.0 x 37.0 cm] |
|
| Master Carton Weight | 44.09 lbs [20.00 kg] |
