Quick Details
-
Brand Name:
-
KeWang
-
Model Number:
-
KW-c001
-
Weight (KG):
-
1500
-
Power (kW):
-
12
-
Product name:
-
Razor Wire Making Machine
-
Pressure:
-
25T / 40T / 63T
-
Thickness of sheet:
-
0.5±0.05mm
-
Rated voltage:
-
380V,50HZ
-
Punching speed:
-
60-130 times / min
-
Model:
-
9 / 11 / 13 strips
-
Razor wire type:
-
BTO-10; BTO-22; BTO-30; CBT-25; CBT-60; CBT-65
-
Raw material:
-
steel stripe and steel wire
-
Barbed wire type:
-
normal / single / reverse twisted
-
Machine type:
-
Braiding Machine
Quick Details
-
Wire Diameter (mm):
-
2.5 - 3 mm
-
Production Capacity:
-
60-170 square meter/hour
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
KeWang
-
Model Number:
-
KW-c001
-
Weight (KG):
-
1500
-
Power (kW):
-
12
-
Product name:
-
Razor Wire Making Machine
-
Pressure:
-
25T / 40T / 63T
-
Thickness of sheet:
-
0.5±0.05mm
-
Rated voltage:
-
380V,50HZ
-
Punching speed:
-
60-130 times / min
-
Model:
-
9 / 11 / 13 strips
-
Razor wire type:
-
BTO-10; BTO-22; BTO-30; CBT-25; CBT-60; CBT-65
-
Raw material:
-
steel stripe and steel wire
-
Barbed wire type:
-
normal / single / reverse twisted
-
Machine type:
-
Braiding Machine
KW - Physical factory, the products are as follows:
All our client from different client---if you had any questions, our client will help you too.
We had our install team too---if you not know how to install the machine or you not know how to used the machine, our team will fly to your country help you.
Concertina Razor Blade Barbed Wire Mesh Making Machine for Security Fence
Product Descripition

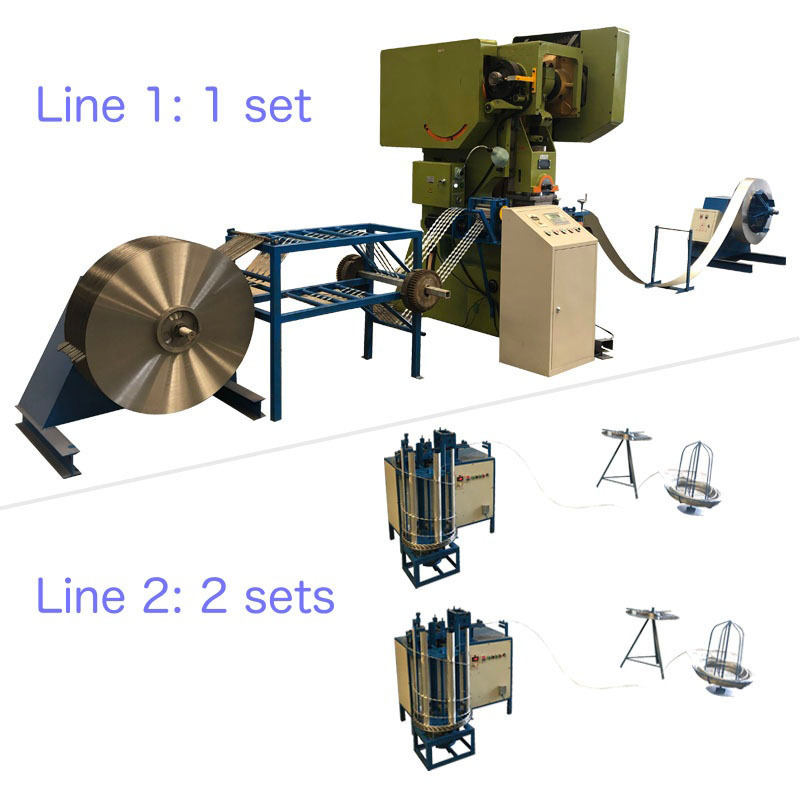

Razor barbed wire machine mainly consists of punching press machine and inner wire covering machine.
Punching press machine used for punching and cutting steel tapes into different razor shapes with different mold.
Inner wire covering machine is used for wrapping razor strip up onto the steel wire and wind up the finished products into rolls.
| Concertina Razor Blade ribbon Barbed Wire Mesh Making Machine | |
| 1 . Main machine | Strip razor b lade m achine |
| Stroke per minute | 80 times |
| Voltage | 380V |
| Power | 3.0KW |
| Capacity | 2 8 0-3 2 0m/h |
| Weight | 3.2T |
| Dimension | 1040mmx900mmx770mm |
| 2. Machine name | Cover wire machine |
| Production | 200-300kg per hour |
| Voltage | 380V |
| Power | 3.0KW |
| Weight | 350kg |
| Dimension | 900mmx550mmx1000mm |
| One set including |
1. Panel Stand*1set 2. Pounching Machine*1 set 3. Panel Strap Separate support*1set 4.Blade strap separate and stand*1set 5.Wire Stand *2sets 6.Blade Stand*2sets 7.Wire covering machine*2sets 8.Razor Re-coiller*2sets 9.Mould*1 set |
Product detail image
|
Decoiler |
Slitting frame and Razor strip recoiler |
|
Punch machine |
Electro control box |
|
Coiling machine and Concertina razor spool
|
Blade strip coil and Wire spool |
Product mold
Application
Packing
Our Service
24 hours on-line service
Excellent service for pre-sale,on-sale and after-sale
Expert at our products
Competitive price with superior higher quality products
Factory with its own workshop
Strict test before its delivery
