Quick Details
-
Light Source:
-
LED
-
Color Temperature(CCT):
-
3000-6000K
-
Input Voltage(V):
-
AC90-264V
-
Product Weight（kg）:
-
9.85
-
CRI (Ra>):
-
80
-
Lamp Luminous Flux(lm):
-
>22000
-
Working Lifetime(Hour):
-
50000
-
Place of Origin:
-
Jiangxi, China
-
Brand Name:
-
LEDUN
-
EX-Mark:
-
Ex demb IIC T4 Gb/Ex tD A21 IP66 T130℃
-
Feature:
-
High Flexibility
-
Power:
-
50W-240W
-
Keyword:
-
Explosion proof flood light
-
Item:
-
LD1302
-
Certification:
-
CCC, CE,ATEX,ROHS
-
LED Driver:
-
DONE/MOSO/MEAN WELL
-
Color:
-
Yellow/Grey
Quick Details
-
Lamp Luminous Efficiency(lm/w):
-
120
-
Warranty(Year):
-
3-5-Year
-
Working Temperature(℃):
-
-25 - 45
-
Light Source:
-
LED
-
Color Temperature(CCT):
-
3000-6000K
-
Input Voltage(V):
-
AC90-264V
-
Product Weight（kg）:
-
9.85
-
CRI (Ra>):
-
80
-
Lamp Luminous Flux(lm):
-
>22000
-
Working Lifetime(Hour):
-
50000
-
Place of Origin:
-
Jiangxi, China
-
Brand Name:
-
LEDUN
-
EX-Mark:
-
Ex demb IIC T4 Gb/Ex tD A21 IP66 T130℃
-
Feature:
-
High Flexibility
-
Power:
-
50W-240W
-
Keyword:
-
Explosion proof flood light
-
Item:
-
LD1302
-
Certification:
-
CCC, CE,ATEX,ROHS
-
LED Driver:
-
DONE/MOSO/MEAN WELL
-
Color:
-
Yellow/Grey
What is Explosion Proof Lighting?
These kinds of lighting refer to a type of lighting fixture or enclosure capable of containing sparks arising from inside, preventing any explosion when it reacts with any explosive material or gases in the surrounding atmosphere. As against popular belief, the explosion-proof does not mean that these lights are resistant to explosions. Instead, they are crafted to restrain the path of sparks and prevent external ignition in hazardous areas.
These safety lights are typically enclosed in a thick frame usually made up of aluminum or stainless steel. Besides sturdy encasing, the thicker glass lenses further protect it from cracks and leaks, as a result of working in harsh environments.
How is explosion-proof lighting beneficial?
Explosion-proof lighting is purpose-built for the hazardous environment especially those industries dealing with oil, gas, pharmaceuticals, etc. and is not generally used in the residential setup. Installing these safety lights can significantly decrease the risk of explosions, as mentioned above. Further, as per the mandate by the international body National Fire Protection Association (NFPA), all lighting equipment used in volatile environments must be explosion-proof.So, due to the solid design of these lights, the risk of explosions arising from sparks are minimal. Hence, it significantly enhances the safety of the people working in a risky industrial environment. We will further know its various aspects in the below paragraphs.

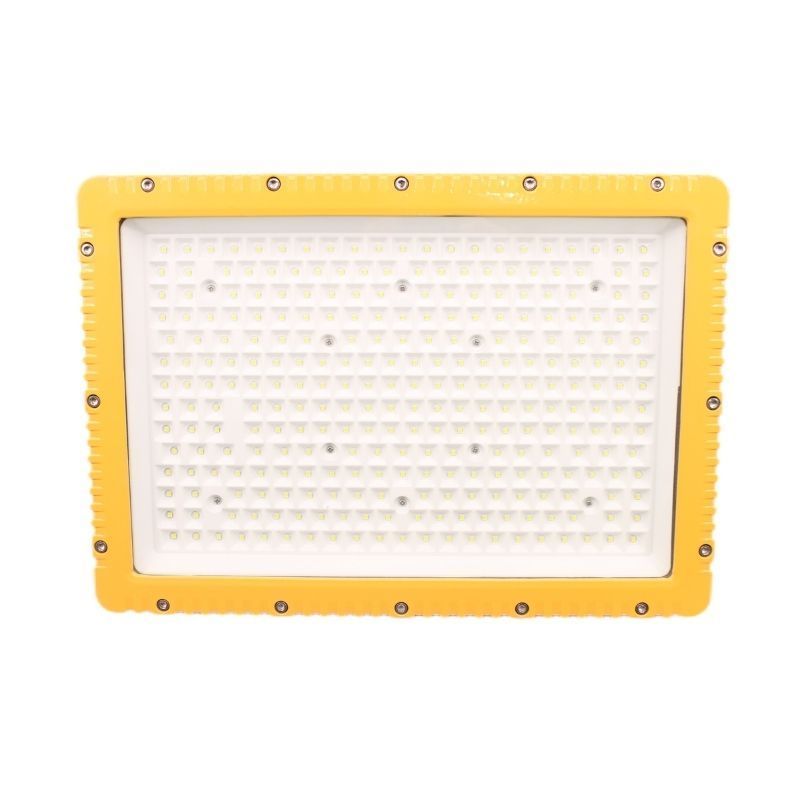

Product Description
Product Features
Own mold with design patent.
"Archimedes spiral curve" ensures no thermal vortex interference, good heat dissipation effect.
Explosion-proof grade IIC, protection grade IP66, anti-corrosion grade WF2.
Unique appearance design structure, improve the impact resistance.
A variety of installation methods to improve the applicability of products.
|
Power
|
50W 60W 70W 80W 100W 120W 150W 200W 240W
|
Protection grade
|
IP66
|
|
Rated Voltage
|
AC90-264V 50/60Hz
|
Insulation class
|
Ⅰ
|
|
Power factor
|
PF>0.95
|
Anti-corrosion class
|
WF2
|
|
Luminous Efficiency
|
>120Lm/W
|
ATEX marks
|
Exd ⅡC T4 Gb/Ex tD A21 IP66 T130°
|
|
CCT
|
3000K-6000K
|
Lead in cable
|
φ8--φ14mm
|
|
CRI
|
Ra>80
|
Thread
|
G3/4”
|
|
Product size
|
330*255*166mm（50-70W）
470*306*166mm（120-150W）
|
Net weight
|
4.2kg、6.2kg、7.5kg
|
