- Product Details
- {{item.text}}
Quick Details
-
Rated Lifting Moment:
-
10-200KN.M
-
Max. Lifting Height:
-
2m~6m
-
Span:
-
2.5-5.5m
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
NYBON
-
Weight (KG):
-
600 kg
-
Product name:
-
Fixed Pillar Remote Control Jib Crane with Electric Hoist
-
Lifting speed:
-
8 m/min
-
Travelling speed:
-
20 m/min
-
Lifting height:
-
3~12m
-
Rotation speed:
-
0.8~1 r/min
-
Rotation angle:
-
0-360 Degree
-
Insulation grade:
-
F
-
Protection grade:
-
IP54
-
Environment temperature:
-
-20~45℃
-
Crane feature:
-
Popular Fixed Pillar Rotatory
Quick Details
-
Marketing Type:
-
New Product 2023
-
Application:
-
Widely
-
Rated Loading Capacity:
-
5 Ton
-
Rated Lifting Moment:
-
10-200KN.M
-
Max. Lifting Height:
-
2m~6m
-
Span:
-
2.5-5.5m
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
NYBON
-
Weight (KG):
-
600 kg
-
Product name:
-
Fixed Pillar Remote Control Jib Crane with Electric Hoist
-
Lifting speed:
-
8 m/min
-
Travelling speed:
-
20 m/min
-
Lifting height:
-
3~12m
-
Rotation speed:
-
0.8~1 r/min
-
Rotation angle:
-
0-360 Degree
-
Insulation grade:
-
F
-
Protection grade:
-
IP54
-
Environment temperature:
-
-20~45℃
-
Crane feature:
-
Popular Fixed Pillar Rotatory

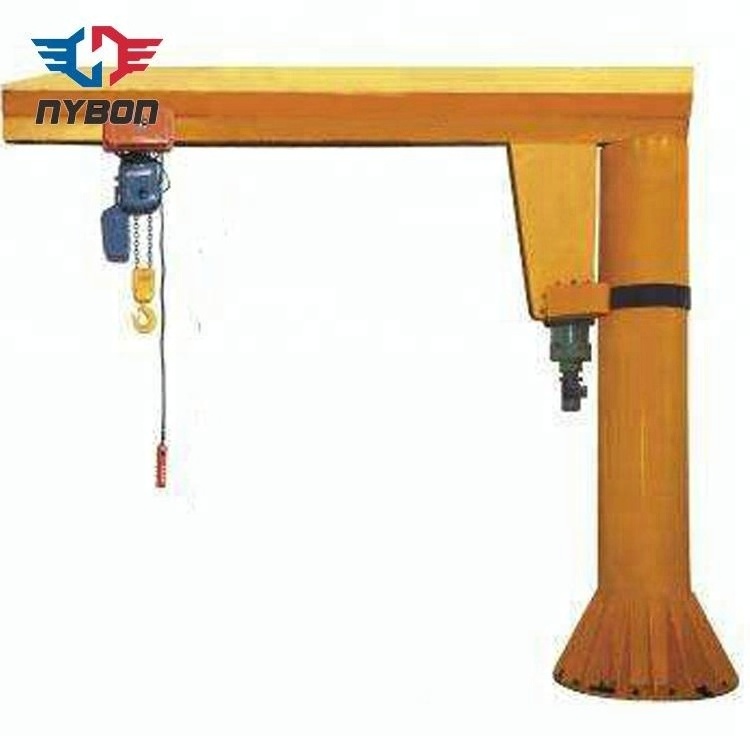

Workshop 3ton Motorized Fixed Pillar Remote Control Jib Crane with Electric Hoist
The Jib Crane is a type of crane that uses a mounted arm to lift, move and lower material. The arm, mounted either perpendicular to or an acute angle upwards from a column(pillar), may rotate along its central axis through a limited arc or a full circl. A column mounted jib crane is often used in industrial settings, like warehouses, to load and unload material.
Safety Features:
* Overload limiter
* Stroke limiter
* Bus Bar preventer plate
* Under-voltage protection
* Interlock protection device
Safety Features:
* Overload limiter
* Stroke limiter
* Bus Bar preventer plate
* Under-voltage protection
* Interlock protection device
Technical Parameter
|
Lifting Capacity（t）
|
0.5
|
1
|
2
|
3
|
5
|
|||||
|
Span（m）
|
3-8
|
|
|
|
|
|||||
|
Light Hight（m）
|
3-12
|
|
|
|
|
|||||
|
Lifting speed（ m/min）
|
8(0.8/8)
|
|
|
|
|
|||||
|
Crba travelling speed
|
20（m/min）
|
|
|
|
|
|||||
|
Crane travelling speed
|
0.6（m/min）
|
|
|
|
|
|||||
|
Control Mode
|
Handle / remote control
|
|
|
|
|
|||||
|
Working level
|
A3/A4/A5
|
|
|
|
|
|||||
|
|
|
|
|
|
||||||
Application
Exhibition
Certifications
Nybon Machinery
is continuous absorbing advanced domestic and foreign advanced technology, improving process level & detail treatment, strictly testing, all these make our product quality stability, reliability and NYBON in the leading position all over China; NYBON & its products have been certified by kinds of certifications and Inspection institutions, such as CE,TUV,SGS,CCS,RMRS, BV.
