Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HJD
-
Dimensions(L*W*H):
-
1094*3160*1620mm
-
Weight:
-
3200 KG
-
Certification:
-
ISO; CE
-
Warranty:
-
One Year
-
Product name:
-

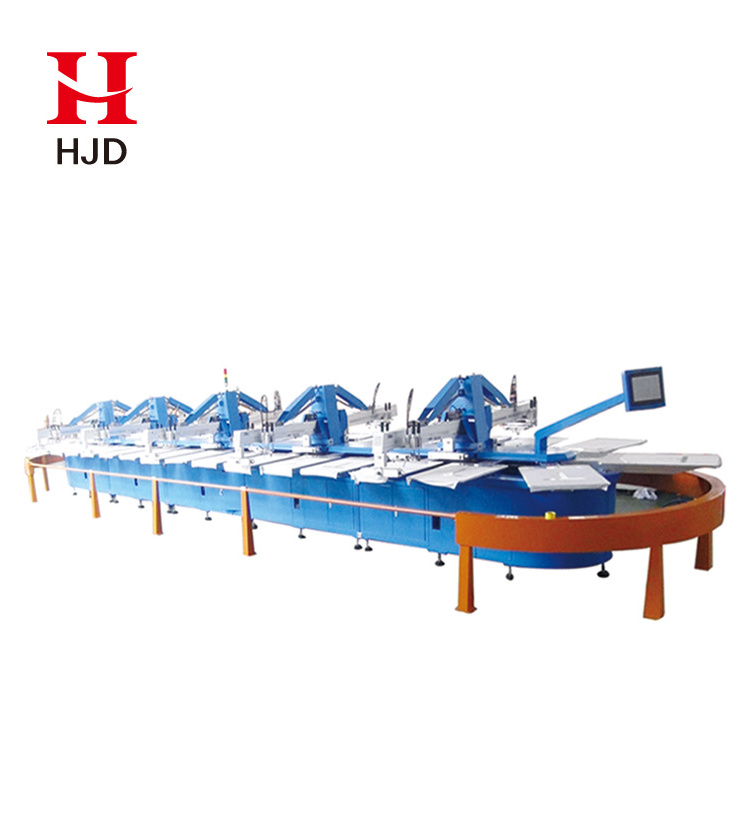

Full Servo Oval Silk Screen Printing Machine for sale 8 / 12 /16 color
-
Colour Number:
-
4,6,8,10,12,14,16,18,20,22,24
-
Plate Quantities (pcs):
-
16,22,28,34,40,46,52,58,64,70,76
-
Printing Size(mm):
-
550*700
-
Max. Printing Speed(pcs/h):
-
800
-
After Warranty Service:
-
Field maintenance and repair service
Quick Details
-
Condition:
-
New
-
Color & Page:
-
Multicolor
-
Voltage:
-
380V/50HZ
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HJD
-
Dimensions(L*W*H):
-
1094*3160*1620mm
-
Weight:
-
3200 KG
-
Certification:
-
ISO; CE
-
Warranty:
-
One Year
-
Product name:
-
Full Servo Oval Silk Screen Printing Machine for sale 8 / 12 /16 color
-
Colour Number:
-
4,6,8,10,12,14,16,18,20,22,24
-
Plate Quantities (pcs):
-
16,22,28,34,40,46,52,58,64,70,76
-
Printing Size(mm):
-
550*700
-
Max. Printing Speed(pcs/h):
-
800
-
After Warranty Service:
-
Field maintenance and repair service
Automatic Garment Screen Printing Machine for sale Multi Color Oval Screen Printing Machine for T shirts printing
|
automatic oval printing machine |
|||||||
|
Model |
8S |
10S |
12S |
14S |
16S |
18S |
20S |
|
Printer number(color) |
8 |
10 |
12 |
14 |
16 |
18 |
20 |
|
Plate number(block) |
28 |
34 |
40 |
46 |
52 |
58 |
64 |
|
Printing size(cm) |
55*70 |
||||||
|
Max Frame (cm) |
74*97 |
||||||
|
Machine length(cm) |
1218 |
1448 |
1678 |
1908 |
2138 |
2368 |
2598 |
|
Machine width(cm) |
316 |
||||||
|
Machine height(cm) |
155 |
||||||
|
Machine weight(kg) |
3200 |
3700 |
4200 |
4700 |
5200 |
5700 |
6200 |
|
Air consumption(m³/min) |
0.2 |
0.25 |
0.3 |
0.35 |
0.4 |
0.45 |
0.5 |
|
Air pressure specification |
0.6Mpa/0.8Mpa (after drying and filtering can be used) |
||||||
|
Print head driver(w) |
Single printing head servo motor(400w) |
||||||
|
Total power consumption(kw) |
4.7 |
5.5 |
6.3 |
8.6 |
9.4 |
10.2 |
11 |
|
Power supply parameters |
Three phase 380V,50Hz |
||||||
|
Production capacity(pcs/h) |
800 |
||||||
1 . Precision Position
The inaccuracy of the machine is 0.02 due to advanced technology,which effectively improve the quality of the products as well as the printing pattern.
2.Multiple Working Station
Using the process of print head,oven and cooling,can produce various sizing agent, especially suitable for mucilage,ink,thick edition,printing,foaming,water etc.
3. High Production
One machine could print more than one color of sizing agents,and also use as multiple production lines.only need 3 people to operate it,strengthening production efficiency, fast investment return.
4. Convenient Operation
An unique style of fasten for screen frame,unique screen frame location,which do not need to take out the screen when cleaning it.easy to change screen frame.ensure the stability of precision. The cooling station effectively reduce the situation which screen is blocked by water base.
5. Universal Machine
The machine is suitable for various screens which are use for automatic printing and manual printing,and not limited to the printing of big size pieces and clothes.
6. Drive without Chain
The pallets are transfer by special method which use the structure of drive without chain,increase stability of the machine and prolong the service life of it.
7. Environmental Protection and Low Energy Consumption
The air consumption of this machine is equal to 50 percent of other machine,the removable oven is low energy consumption,and suitable for printing various size of pattern.
