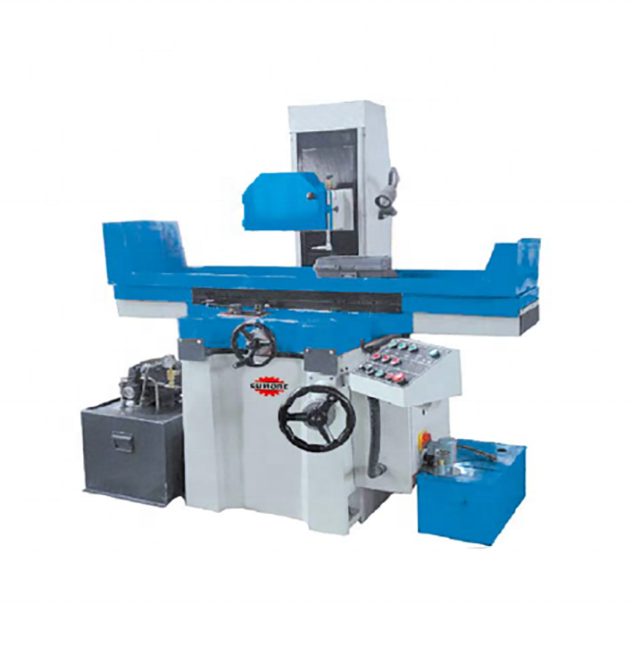

Chinese Grinding Machine Higher Precision Mini Grinder Sp2512-I Hydraulic Surface Grinder Grinding Machine From China

Chinese Grinding Machine Higher Precision Mini Grinder Sp2512-I Hydraulic Surface Grinder Grinding Machine From China

FOB Reference Price: Get Latest Price

≥1 Sets

US $7600

≥3 Sets

US $7300

≥5 Sets

US $7000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Dimension(L*W*H):: 1900*1665*2020mm

Weight (KG):: 2350

Power (kW):: 4

Grinding wheel:: 350*32*127mm

Speed:: 1450r/min

Motor:: 4000W

Max. Grinding Length:: 1020mm

Table Travel (X) (mm):: 1020 mm

Table Travel (Y) (mm):: 340 mm

Surface Roughness(μm):: 0.01 μm

Table size:: 300*1000mm

Type of grindable blade:: Straight

Standard grinding wheel:: White Corundum Wheel

Quick Details

Place of Origin:: Shanghai, China

Brand Name:: SUMORE

Voltage:: /

Dimension(L*W*H):: 1900*1665*2020mm

Weight (KG):: 2350

Power (kW):: 4

Grinding wheel:: 350*32*127mm

Speed:: 1450r/min

Motor:: 4000W

Max. Grinding Length:: 1020mm

Table Travel (X) (mm):: 1020 mm

Table Travel (Y) (mm):: 340 mm

Surface Roughness(μm):: 0.01 μm

Table size:: 300*1000mm

Type of grindable blade:: Straight

Standard grinding wheel:: White Corundum Wheel

Looking for excellent machine? Check out our generous range of various metal-working appliations from lathe, cnc lathe, machining center, milling machine, cnc milling machine, drilling machine, band saw, drill press, surface grinder to the spareparts & accessories related from Sumore Machinery

Product Description

Promotional Price for surface grinder SP2512-I cylinder head surface grinding machine

Surface grinding is used to produce a smooth finish on flat surfaces.

It is a widely used abrasive machining process in which a spinning wheel covered in rough particles (grinding wheel) cuts chips of metallic or nonmetallic substance from a workpiece, making a face of it flat or smooth.

Sumore surface grinder has characteristics as excellent structure, easy operation, large range of speed regulation, stable operation, no noise, high efficiency,and widely recognized by customers after the launch.The grinder is widely used in various industries’ small and special-shaped components as glasses accessories, textile machine components, electronic parts, etc

Specification

Model	SP2512-I	SP2512-II	SP2512-III
Table size(LxW)	300X1000mm	350X800mm	350x1000mm
Permanent magnetic chunk size(Optional)	300x1000mm	350x800mm	350X1000mm
Max. longitudinal travel	1020mm	880mm	1020mm
Max. cross travel	340mm	390mm	390mm
Max. distance spindle centre to talbe surface	580mm	580mm	580mm
Mannul vertical feed Per rev	4mm	4mm	4mm
Mannul vertical feed Per div	0.02mm	0.02mm	0.02mm
Grinding wheel size	350x32xØ127mm	350x32xØ127mm	350x32xØ127mm
Grinding wheel speed	1450/min	1450/min	1450/min
Spindle motor power	4kw	4kw	5.5kw
Max.table loading(include chuck)	400kg	400kg	400kg
Machine weight	3300kg	3000kg	3500kg
Packing size(LxWxH)	2800x1665x2180mm	2400x1920x2180mm	2800x1920x2180mm

--High rigidity & high sealing ensure no vibration- Accuracy
--Digital size controller –Longer machining Accuracy
--Simple operation
--Suit for fine Grinding, Lapping and Polishing etc
--Pre, main and post load position can be controlled by simple setting.
--Operator gets more space for loading from upper wheel Swivel device. It can be equiped with semi or full automatic Loading or Unloading device.

Product Detail Pictures

Hot Products

<<Lathe Machine>>

<<Milling Machine>>

<<CNC Machining Center>>

<<CNC Lathe Machine>>

Packing & Delivery

Package	1 set/polywood case (aluminum strips strengthen)
Minimum Order Quantity (MOQ)	1 sets
Full Container Loading Quantity (FCL)	36-60sets/20’GP (unitary; customerized packing available)
Delivery Time	25 calendar days after receiving of advance / full payment
