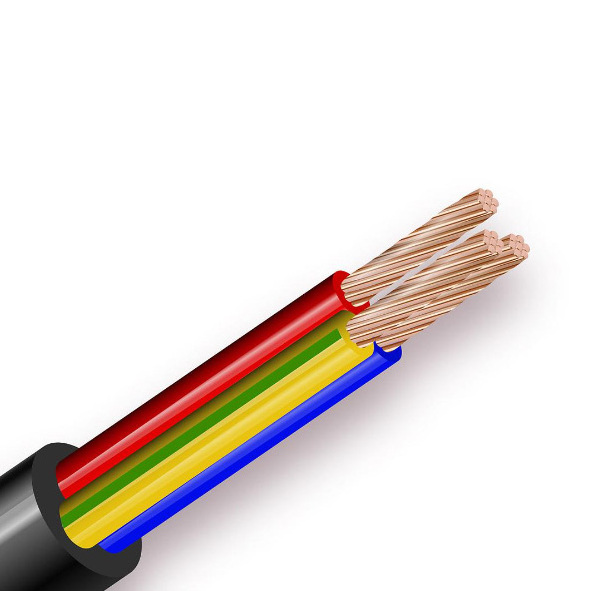

Wholesale Multicore Royal Cord 2 3 4 5 Core Wire Cable 300 ft 8 pin power extension cord 4mm copper cable price
Wholesale Multicore Royal Cord 2 3 4 5 Core Wire Cable 300 ft 8 pin power extension cord 4mm copper cable price
Wholesale Multicore Royal Cord 2 3 4 5 Core Wire Cable 300 ft 8 pin power extension cord 4mm copper cable price
Wholesale Multicore Royal Cord 2 3 4 5 Core Wire Cable 300 ft 8 pin power extension cord 4mm copper cable price
Wholesale Multicore Royal Cord 2 3 4 5 Core Wire Cable 300 ft 8 pin power extension cord 4mm copper cable price
Wholesale Multicore Royal Cord 2 3 4 5 Core Wire Cable 300 ft 8 pin power extension cord 4mm copper cable price
Wholesale Multicore Royal Cord 2 3 4 5 Core Wire Cable 300 ft 8 pin power extension cord 4mm copper cable price
Wholesale Multicore Royal Cord 2 3 4 5 Core Wire Cable 300 ft 8 pin power extension cord 4mm copper cable price

Wholesale Multicore Royal Cord 2 3 4 5 Core Wire Cable 300 ft 8 pin power extension cord 4mm copper cable price

FOB Reference Price: Get Latest Price
≥1000 Meters
US $1.93
≥2000 Meters
US $1.18
≥5000 Meters
US $0.89
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Jacket:
PVC
Place of Origin:
Shanghai, China
Brand Name:
FENGY
Model Number:
FENGY006
Product name:
PVC cable
Certificate:
ROHS
Conductor:
Strands of oxygen-free copper wire
Insulation:
PVC
Sheath:
PVC
Shield:
Tinned copper mesh braided shield
Inner sheath:
PE belt or non-woven belt(optional)
Rated voltage:
<0.5mm2:300/300V ≥0.5mm2:300/500V
Test voltage:
2000V
Outer jacket color:
Black/Grey/Orange

Quick Details

Insulation Material:
PVC
Application:
CNC machine
Conductor Material:
Copper
Jacket:
PVC
Place of Origin:
Shanghai, China
Brand Name:
FENGY
Model Number:
FENGY006
Product name:
PVC cable
Certificate:
ROHS
Conductor:
Strands of oxygen-free copper wire
Insulation:
PVC
Sheath:
PVC
Shield:
Tinned copper mesh braided shield
Inner sheath:
PE belt or non-woven belt(optional)
Rated voltage:
<0.5mm2:300/300V ≥0.5mm2:300/500V
Test voltage:
2000V
Outer jacket color:
Black/Grey/Orange
Product Structure
Conductor
Fine strands of oxygen-free copper wire, according to VDE0295 CLASS 6 standard
Conductor insulation
High quality mixed PVC
Conductor colors
Optional
Core wire structure
Anti twist layered, or grouping with divided gap filling by high strength core
Inner sheath
PE belt or non-woven belt(Optional)
Shield
Tinned copper mesh braided shield,coverage more than 70%
Outer jacket material
Special nitrile mixed PVC
Outer jacket color
Black
Grey
Orange
Technical Specification
Rated voltage
＜0.5mm²:300/300V
≥0.5mm²:300/500V
Test voltage
2000V
Minimum bending radius
Fixed installation:6×D

Moveable installation:distance of travel <10m，minimum bending radius 6×D，
distance of travel ≥10m，minimum bending radius 10×D
Operating temperature
Fixed installation: -30℃~+70℃

Movable installation: -20℃~+70℃
Oil resistance
See the attached oil resistance list
Chemical resistance
See the attached chemical resistance list
Flame resistance
Following IEC60332-1 or 2
It can be made with or without shielding
Product Features
Special Characteristic
1. Installtion travel distance: 50m,accelerator 20m/s²,moving speed 5m/s. 2.Bending lifetime: 30 times/min,＞3 million times.
3.Water resistance,oil resistance,UV resistance and weatherability.
4.Cold resistance,abrasion resistance,can afford some mechanical force.
5.G ood EMC performance(anti-interference).

Approvals And Standards
ROHS     CE
Application
Installation under continuous reciprocation, especially industrial frequent bending environments. such as drag chains of modern machinery and logistics systems, control systems, automatic machinery systems,ect. CNC machines, electronic equipments, hardware rammings, wood and stone machinery, glass and windows machinery, injection molding machiney, robots and manipulators, construction machinery, heavy-duty machinery, automobile manufacturing, lifting transport equipments, automated warehouses, docks, fire engines and other indoor and outdoor shielded environments.
FAQ
Q 1: I didn't find my needed model in this page.
Answer: Dear Friends, ecatalog will emailed to you asap when you contact with us. Also, we supply customization service.

Q 2: What's your Minimum Order Quantity?
Answer: Normally, 300m, but we also accept 100m order.

Q 3: When can I get the price and what's the validity?
Answer: usually within one day.Validity is 30 days

Q 4: What's your payment terms?
Answer: By T/T 30% in advance ; Balance 70% before shipment. Now you can pay through Alibaba company to our Alibaba sub-account.

Q 5: What's your delivery time?
Answer: It depends on whether we just have the stock for your type. Or, it takes about 10 - 30 days for normal orders.

Q 6: What's your package method ?
Answer: Usually, it's cartons, and for big cable, we use wooden drum.
