Quick Details
-
Use:
-
Warehouse Rack
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Peterack
-
Model Number:
-
Medium Duty Rack
-
Depth:
-
1.5-2.0mm
-
Weight Capacity:
-
200-600kg, 200~600kg/layer
-
Width:
-
1200-2000mm
-
Height:
-
1500-3000mm
-
Product name:
-
Medium Duty Rack
-
Loading capacity:
-
<4000kg
-
Color:
-
Blue,White,Orange,Green,etc.
-
Painting:
-
Electrostatic Spray
-
Pack:
-
Standard Packing
-
Components:
-
Frames, beams and panel
-
Application:
-
Widely used in light industries
Quick Details
-
Type:
-
Plate Type
-
Material:
-
Steel
-
Feature:
-
Corrosion Protection
-
Use:
-
Warehouse Rack
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Peterack
-
Model Number:
-
Medium Duty Rack
-
Depth:
-
1.5-2.0mm
-
Weight Capacity:
-
200-600kg, 200~600kg/layer
-
Width:
-
1200-2000mm
-
Height:
-
1500-3000mm
-
Product name:
-
Medium Duty Rack
-
Loading capacity:
-
<4000kg
-
Color:
-
Blue,White,Orange,Green,etc.
-
Painting:
-
Electrostatic Spray
-
Pack:
-
Standard Packing
-
Components:
-
Frames, beams and panel
-
Application:
-
Widely used in light industries
Product Description
Medium Duty Rack
|
Product Name
|
Storage Racking
|
Style
|
Long-span Rack
|
|
Brand
|
Peterack
|
Colour
|
Blue,white,orange,green,etc.
|
|
Material
|
Steel
|
Place of Product
|
Jiangsu Province,China
|
|
Feature
|
Corrosion Protection, Assembly
|
Packing
|
Export Package
|
|
Size
|
Customizable
|
Application
|
Widely used in light industries
|
Long-span
Medium duty shelves adopts plug-in combination structure, which is easy to install and disassemble. It can be equipped with steel and wood laminates with high floor height. Every 50mm can be adjusted, the width of the laminate can be freely combined, the unit can bear 200-600kg, and the specifications can be customized.
Features & Benefits
1) Upright section: 55*55 and 55*47 available
2) Adopt the structural form of combination of beams and decking
3) Can carry 200-600kg cross-sections with various specifications
4) Can be installed and removed freely
5) Each layer height can be adjusted, pitch: 50mm
6) Lightweight, strong bearing capacity and low cost
2) Adopt the structural form of combination of beams and decking
3) Can carry 200-600kg cross-sections with various specifications
4) Can be installed and removed freely
5) Each layer height can be adjusted, pitch: 50mm
6) Lightweight, strong bearing capacity and low cost
Detailed Images

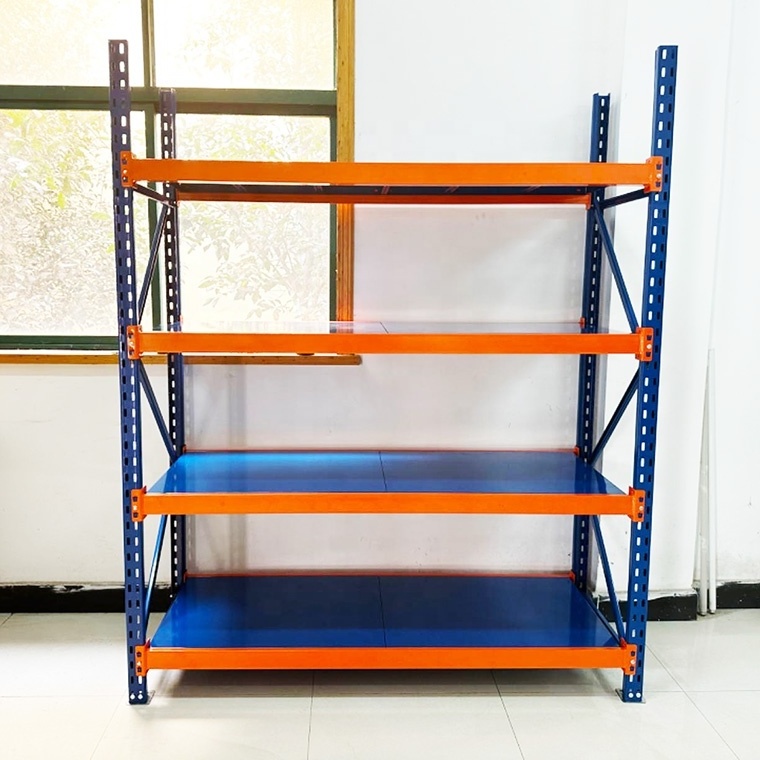

It is consisted of frames, beams and panel. The 55*47 Long span shelving can be decked with particle board, wire decking, Zinc steel panel, rolling metal decking to make them ideal for many different environments. Long-span shelving are especially suitable for the hand loaded storage of bulky items. Comparing with 55*55 shelving, as panels are put on the beams and with the same length and width, the loading capacity will be larger. It’s from 200kg to 600kg per level.
|
Long span medium duty racking
|
|
Medium duty racking
|
|
|
||||
|
Weight Capacity
|
Product code
|
Specifiction (L*D*H)mm
|
Color
|
Remark
|
||||
|
600KG
/layer
|
PT-W205-1252
|
1200*500*2000*4layer
|
Blue/Grey
|
upright:55*47*1.5mm
beam:P50*30*1.5mm |
||||
|
|
PT-W205-1262
|
1200*600*2000*4layer
|
Blue/Grey
|
upright:55*47*1.5mm
beam:P50*30*1.5mm |
||||
|
400KG/layer
|
PT-W205-1552
|
1500*500*2000*4layer
|
Blue/Grey
|
upright:55*47*1.5mm
beam:P50*30*1.5mm |
||||
|
|
PT-W205-1562
|
1500*600*2000*4layer
|
Blue/Grey
|
upright:55*47*1.5mm
beam:P50*30*1.5mm |
||||
|
300KG/layer
|
PT-W205-1858
|
1800*500*1800*4layer
|
Blue/Grey
|
upright:55*47*1.5mm
beam:P50*30*1.5mm |
||||
|
275KG/layer
|
PT-W205-1868
|
1800*600*1800*4layer
|
Blue/Grey
|
upright:55*47*1.5mm
beam:P50*30*1.5mm |
||||
|
500KG/layer
|
PT-W205-H1868
|
1800*600*1800*4layer
|
Blue/Grey
|
upright:55*47*1.5mm
Beam:P60*40*1.5mm |
||||
|
200KG/layer
|
PT-W205-2058
|
2000*500*1800*4layer
|
Blue/Grey
|
upright:55*47*1.5mm
Beam:P50*30*1.5mm |
||||
|
400KG/layer
|
PT-W205-H2058
|
2000*500*1800*4layer
|
Blue/Grey
|
upright:55*47*1.5mm
Beam:P60*40*1.5mm |
||||
|
200KG/layer
|
PT-W205-2068
|
2000*600*1800*4layer
|
Blue/Grey
|
upright:55*47*1.5mm
Beam:P50*30*1.5mm |
||||
|
400KG/layer
|
PT-W205-H2068
|
2000*600*1800*4layer
|
Blue/Grey
|
upright:55*47*1.5mm
Beam:P60*40*1.5mm |
||||
|
200KG/layer
|
PT-W205-2062
|
2000*600*2000*4layer
|
Blue/Grey
|
upright:55*47*1.5mm
Beam:P50*30*1.5mm |
||||
|
400KG/layer
|
PT-W205-H2062
|
2000*600*2000*4layer
|
Blue/Grey
|
upright:55*47*1.5mm
Beam:P60*40*1.5mm |
||||
|
Width
|
Capacity of each layer (kg)
|
|
|
|
||
|
|
1200MM
|
1500MM
|
1800MM
|
Length
|
||
|
400MM
|
300KG
|
250KG
|
250KG
|
|
||
|
500MM
|
350KG
|
300KG
|
250KG
|
|
||
|
600MM
|
350KG
|
300KG
|
250KG
|
|
||
|
700MM
|
350KG
|
300KG
|
250KG
|
|
||
|
Size of Upright
|
Type C
|
Pitch
|
Height
|
|
||
|
|
55*55*1.5(MM)
|
50
|
1.5,1.8,2.0,2.4,3.0(M)
|
|
||
