Quick Details
-
Name:
-

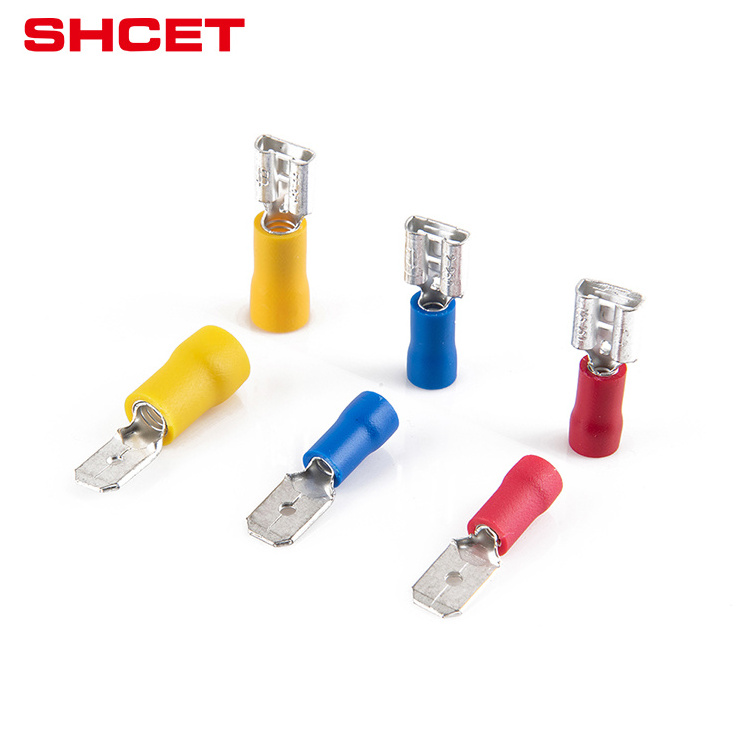

Crimp Terminal
-
Model:
-
MDD
-
Insulation::
-
PVC
-
Plating:
-
Tin
-
Color:
-
black, red, yellow, blue etc
-
usage:
-
Wire Connecting
-
Advantage:
-
Insulation Protection
-
Packing:
-
100pcs/bag
-
MOQ:
-
3000pcs
-
Certificate:
-
CE
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
SHCET
-
Model Number:
-
MDD
-
Name:
-
Crimp Terminal
-
Model:
-
MDD
-
Insulation::
-
PVC
-
Plating:
-
Tin
-
Color:
-
black, red, yellow, blue etc
-
usage:
-
Wire Connecting
-
Advantage:
-
Insulation Protection
-
Packing:
-
100pcs/bag
-
MOQ:
-
3000pcs
-
Certificate:
-
CE
Products Description
|
Conductor section:0.5-1.5mm2 (A.W.G 22-16) 1max=10A
|
|
|
|
|
|
|
|
|||||||
|
ITEM NO.
|
Nema
|
Dimension(mm)
|
|
|
|
|
Color
|
|||||||
|
|
tad(mm)
|
B
|
dΦ
|
DΦ
|
L
|
H
|
|
|||||||
|
MDD1.25-110(5)
|
0.5×2.8
|
2.8
|
1.7
|
4.3
|
17.7
|
10
|
Red
|
|||||||
|
MDD1.25-110(8)
|
0.8×2.8
|
2.8
|
1.7
|
4.3
|
17.7
|
10
|
|
|||||||
|
MDD1.25-187(5)
|
0.5×4.75
|
4.75
|
1.7
|
4.3
|
20
|
10
|
|
|||||||
|
MDD1.25-187(8)
|
0.8×4.75
|
4.75
|
1.7
|
4.3
|
20
|
10
|
|
|||||||
|
MDD1.25-250
|
0.8×6.35
|
6.35
|
1.7
|
4.3
|
21
|
10
|
|
|||||||
|
MDD1.25-110(5)
|
0.5×2.8
|
2.8
|
1.7
|
4.3
|
17.7
|
10
|
|
|||||||
|
Conductor section:1.5-2.5mm2 (A.W.G 16-14) 1max=15A
|
|
|
|
|
|
|
|
|||||||
|
ITEM NO.
|
Nema
|
Dimension(mm)
|
|
|
|
|
Color
|
|||||||
|
|
tad(mm)
|
B
|
dΦ
|
DΦ
|
L
|
H
|
|
|||||||
|
MDD2-110(5)
|
0.5×2.8
|
2.8
|
2.3
|
4.3
|
17.7
|
10
|
Blue
|
|||||||
|
MDD2-110(8)
|
0.8×2.8
|
2.8
|
2.3
|
4.3
|
17.7
|
10
|
|
|||||||
|
MDD2-187(5)
|
0.5×4.75
|
4.75
|
2.3
|
4.3
|
20
|
10
|
|
|||||||
|
MDD2-187(8)
|
0.8×4.75
|
4.75
|
2.3
|
4.3
|
20
|
10
|
|
|||||||
|
MDD2-250
|
0.8×6.35
|
6.35
|
2.3
|
4.3
|
21
|
10
|
|
|||||||
|
MDD2-110(5)
|
0.5×2.8
|
2.8
|
2.3
|
4.3
|
17.7
|
10
|
|
|||||||
|
Conductor section:4-6mm2 (A.W.G 12-10) 1max=24A
|
|
|
|
|
|
|
|
|||||||
|
ITEM NO.
|
Nema
|
Dimension(mm)
|
|
|
|
|
Color
|
|||||||
|
|
tad(mm)
|
B
|
dΦ
|
DΦ
|
L
|
H
|
|
|||||||
|
MDD5.5-250
|
0.8×6.35
|
6.35
|
3.4
|
5.7
|
25
|
13
|
Yellow
|
|||||||
Conductive Material (except Quick Connect Range)
Copper: 99.9% pure
Tensile Strength: 200 MPa
Ductile Rating: 35%
Final Metal State: Part of the product annealed
Oxygen Content: 50ppm max
Brass: 30% Zinc 70% Copper
Tensile Strength: 580 MPa
Ductile Rating: 6% min
Final Metal State: Part of the product annealed
FAQ
1. Can I have a sample order for electric product?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. What certification do you have ?
A: We have CE .ROHS.SASO.BIS.TIR.ISO Certifications.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 7-15 days to arrive. Airline and sea shipping also optional.
Q5. Is it OK to print my logo on product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q6: Do you offer guarantee for the products?
A: Yes, we offer 2 years warranty to our products.
1. Can I have a sample order for electric product?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. What certification do you have ?
A: We have CE .ROHS.SASO.BIS.TIR.ISO Certifications.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 7-15 days to arrive. Airline and sea shipping also optional.
Q5. Is it OK to print my logo on product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q6: Do you offer guarantee for the products?
A: Yes, we offer 2 years warranty to our products.
