Quick Details
-
Warranty:
-
25 years
-
Brand Name:
-
Jinko Solar
-
Model Number:
-

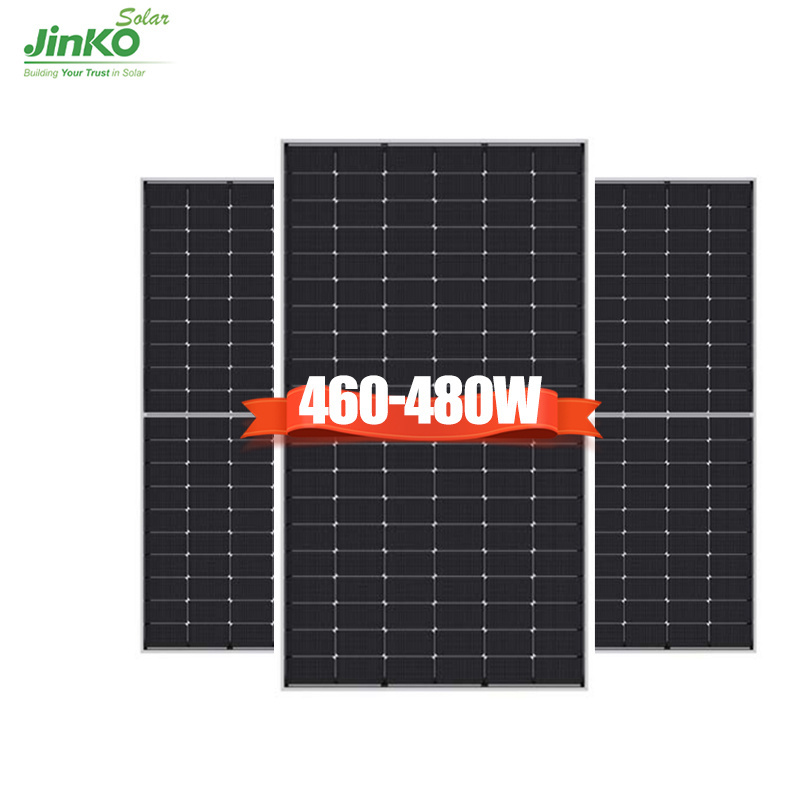

60HL4-(V) 460-480 Watt
-
Place of Origin:
-
Anhui, China
-
Panel Dimensions:
-
1903*1134*30mm, 1903*1134*30mm
-
Solar cell:
-
120 (6*20)
-
Product name:
-
jinko Solar Panel
-
Junction Box:
-
IP68 Rated
-
Keyword:
-
Pv Module
-
Weight:
-
24.2 kg (53.35 lbs)
-
Frame:
-
Anodized Aluminium Alloy
-
OEM Order:
-
Acceptable
-
Name:
-
Jinko N-type 585w solar panel
-
Power:
-
460W-480W
-
Certificate:
-
CE TUV
Quick Details
-
Cell size:
-
182*182mm
-
Type:
-
Half Cell, PERC, N-TYPE
-
Panel Efficiency:
-
22.24%
-
Warranty:
-
25 years
-
Brand Name:
-
Jinko Solar
-
Model Number:
-
60HL4-(V) 460-480 Watt
-
Place of Origin:
-
Anhui, China
-
Panel Dimensions:
-
1903*1134*30mm, 1903*1134*30mm
-
Solar cell:
-
120 (6*20)
-
Product name:
-
jinko Solar Panel
-
Junction Box:
-
IP68 Rated
-
Keyword:
-
Pv Module
-
Weight:
-
24.2 kg (53.35 lbs)
-
Frame:
-
Anodized Aluminium Alloy
-
OEM Order:
-
Acceptable
-
Name:
-
Jinko N-type 585w solar panel
-
Power:
-
460W-480W
-
Certificate:
-
CE TUV
Products Description
|
Cell Type
|
N type Mono-crystalline
|
|
|
|
|||
|
No. of cells
|
156 (2×78)
|
|
|
|
|||
|
Dimensions
|
2278×1134×30mm (89.69×44.65×1.18 inch)
|
|
|
|
|||
|
Weight
|
34.6kg (76.38 Ibs)
|
|
|
|
|||
|
Front Glass
|
2.0mm, Anti-Reflection Coating
|
|
|
|
|||
|
Back Glass
|
2.0mm, Heat Strengthened Glass
|
|
|
|
|||
|
Frame
|
Anodized Aluminium Alloy
|
|
|
|
|||
|
Junction Box
|
IP68 Rated
|
|
|
|
|||
|
Output Cables
|
TUV 1×4.0 mm²
(+): 400 mm , (-): 200 mm or Customized Length |
|
|
|
|||
|
Model
|
Size & Weight(Net)
|
Watts
|
Package
|
|
Tiger Neo N-type 78HL4-(V)
MONO-FACIAL MODULE N-Type |
2465×1134×35mm (97.05×44.65×1.38 inch)
30.6kg (67.46 lbs |
610W-630W
|
31pcs/pallets, 62pcs/stack,
496pcs/40'HQ Container |
|
Tiger Neo N-type 78HL4-BDV
BIFACIAL MODULE WITH DUAL GLASS N-Type |
2465×1134×30mm (97.05×44.65×1.18 inch)
34.6kg (76.38 Ibs) |
605W-625W
|
36pcs/pallets, 72pcs/stack,
576pcs/40'HQ Container |
|
Tiger Neo N-type 72HL4-(V)
MONO-FACIAL MODULE N-Type |
2278×1134×35mm (89.69×44.65×1.38 inch)
28 kg (61.73 lbs) |
565W-585W
|
31pcs/pallets, 62pcs/stack, 620pcs/40'HQ Container
|
|
Tiger Neo N-type 72HL4-BDV
BIFACIAL MODULE WITH DUAL GLASS N-Type |
2278×1134×30mm (89.69×44.65×1.18 inch)
32 kg (70.55 lbs) |
560W-580W
|
36pcs/pallets, 72pcs/stack,720pcs/40'HQ Container
|
|
Tiger Neo N-type 60HL4-(V)
MONO-FACIAL MODULE N-Type |
1903×1134×30mm (74.92×44.65×1.18 inch)
24.2 kg (53.35 lbs) |
460W-480W
|
36pcs/pallets, 72pcs/stack, 864pcs/40'HQ Container
|
