Quick Details
-
Brand Name:
-
ZIMO
-
Model Number:
-
K5
-
Engine:
-
EPA certificated
-
Drive Mode:
-
Rear Wheel Driven
-
Wheel Size:
-
22x7-10 / 22x10-10
-
Oil Tank Capacity:
-
8.516L
-
Maximum Speed:
-
60km/h
-
Displacement:
-
149.6CC
-
Brake Type:
-
Hydraulic disk brake
-
Engine type:
-
161QMK-A, 4-STROKE,SINGLE CYLINDER,AIR COOLED
-
Displacement (cc):
-
168.9 CC
-
Output Max. Power (Kw):
-
7.6KW@7500 RPM
-
Max. Torque:
-
11N.m@5000 RPM
-
Bore x Stroke (mm):
-
61x57.8MM
-
Climbing ability:
-
12°
-
Ignition:
-
C.D.I
-
Starting system:
-
ELECTRIC START
-
Battery:
-
YTX12-BS 12V10AH
-
Certification:
-
CE
Quick Details
-
Type:
-
Pedal Go Karts
-
Engine Capacity:
-
168.9 CC
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
ZIMO
-
Model Number:
-
K5
-
Engine:
-
EPA certificated
-
Drive Mode:
-
Rear Wheel Driven
-
Wheel Size:
-
22x7-10 / 22x10-10
-
Oil Tank Capacity:
-
8.516L
-
Maximum Speed:
-
60km/h
-
Displacement:
-
149.6CC
-
Brake Type:
-
Hydraulic disk brake
-
Engine type:
-
161QMK-A, 4-STROKE,SINGLE CYLINDER,AIR COOLED
-
Displacement (cc):
-
168.9 CC
-
Output Max. Power (Kw):
-
7.6KW@7500 RPM
-
Max. Torque:
-
11N.m@5000 RPM
-
Bore x Stroke (mm):
-
61x57.8MM
-
Climbing ability:
-
12°
-
Ignition:
-
C.D.I
-
Starting system:
-
ELECTRIC START
-
Battery:
-
YTX12-BS 12V10AH
-
Certification:
-
CE

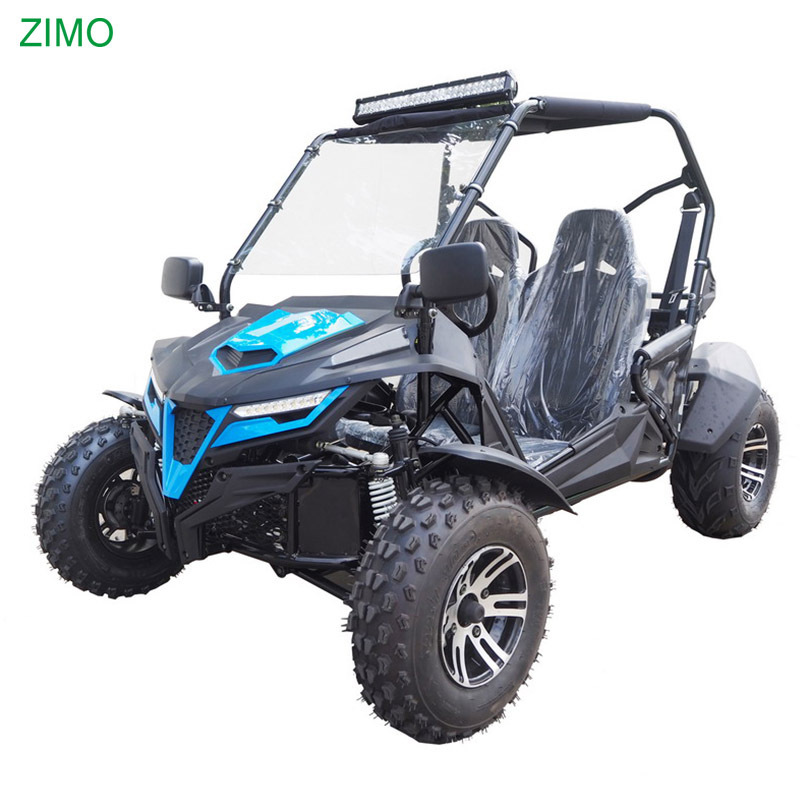

ZIMO Go Kart 168.9cc Off Road Racing Dune Buggy K5
ZIMO Go Karts Off Road Dune Buggy unique stylish vehicle design, special safe structural design make driving experience more exciting and safer.The Gasoline Racing Go Kart With reverse as standard, engines technology is mature and reliable, parts are readily available everywhere. Equipped with more spacious cockpit, play drift freely, throw slide, never roll over. Could drive through river, crossing with water 20cm deep in it and run it over.
|
Specifications
|
K5
|
|
|
|
|||
|
Package Size
|
2300x1200x660
|
|
|
|
|||
|
Height to Seat
|
470
|
|
|
|
|||
|
Min. Ground Clearance
|
150
|
|
|
|
|||
|
WheelbaL x W x Hse
|
1800
|
|
|
|
|||
|
Pedal to Seat Back
|
920-1060
|
|
|
|
|||
|
Type
|
161QMK-A, 4-stroke, single cylinder, air cooled
|
|
|
|
|||
|
Displacement (cc)
|
168.9
|
|
|
|
|||
|
Output Max. Power (Kw)
|
7.6KW@7500 RPM
|
|
|
|
|||
|
Max. Torque
|
11N.m@5000 RPM
|
|
|
|
|||
|
Bore x Stroke (mm)
|
2.40 x 2.28 INCHES (61x57.8MM)
|
|
|
|
|||
|
Climbing ability
|
12°
|
|
|
|
|||
|
Ignition
|
CDI
|
|
|
|
|||
|
Starting system
|
Electric start
|
|
|
|
|||
|
Battery
|
YTX12-BS 12V10AH
|
|
|
|
|||
|
Gasoline Tank Capacity (L)
|
8.516
|
|
|
|
|||
|
Carburetor Item
|
PD24J
|
|
|
|
|||
|
Max speed (km/h)
|
50
|
|
|
|
|||
|
Gears
|
D-N-R
|
|
|
|
|||
|
Brakes, F / R
|
Hydraulic disk brake
|
|
|
|
|||
|
Tires, F / R
|
22x7-10 / 22x10-10
|
|
|
|
|||
|
Suspension, F / R
|
Dual A-arm /Thru-shaft with dual shocks and dual A-arm
|
|
|
|
|||
|
Max load
|
227kg (500LBS)
|
|
|
|
|||
|
Gross / Net Weight (kg)
|
295 / 240
|
|
|
|
|||
