wireless remote,without wiring,compact and lightweight portable,control range up to 50~100M
adjustment in 4 directions and to be
able to adjust the direction of freedom
- Product Details
- {{item.text}}
Quick Details
-
Light Source:
-
HID
-
Color Temperature(CCT):
-
warm white,pure white,cool white
-
Input Voltage(V):
-
220V
-
Lamp Luminous Flux(lm):
-
10000
-
CRI (Ra>):
-
90
-
Beam Angle(°):
-
6
-
Working Temperature(℃):
-
-24 - 45
-
Working Lifetime(Hour):
-
20000
-
Place of Origin:
-
Guangxi, China
-
Brand Name:
-
Sinso
-
Model Number:
-
PD-022-B
-
Feature:
-
Waterproof,355° rotation,Variable speed,
-
Control Mode:
-
wireless remote,wired keyboard,software (RS485)
-
Visibly distance:
-
600 Meters
-
Voltage:
-
AC220V,DC12V,DC24V
-
Rotation speed:
-
pan:0-15°/sec,tilt:0-3°/sec
-
Rotation angle:
-
Rotation angle
-
Applcation:
-
Homeland&Border Security,Prison Facilities&Prison Security,Marine
-
Keywords:
-
guard tower moving head searchlight
-
Keyword 1:
-
variable speed joystick control guard tower moving head searchlight
Quick Details
-
Lamp Luminous Efficiency(lm/w):
-
100
-
Warranty(Year):
-
1-Year
-
Lamp Body Material:
-
Aluminum
-
Light Source:
-
HID
-
Color Temperature(CCT):
-
warm white,pure white,cool white
-
Input Voltage(V):
-
220V
-
Lamp Luminous Flux(lm):
-
10000
-
CRI (Ra>):
-
90
-
Beam Angle(°):
-
6
-
Working Temperature(℃):
-
-24 - 45
-
Working Lifetime(Hour):
-
20000
-
Place of Origin:
-
Guangxi, China
-
Brand Name:
-
Sinso
-
Model Number:
-
PD-022-B
-
Feature:
-
Waterproof,355° rotation,Variable speed,
-
Control Mode:
-
wireless remote,wired keyboard,software (RS485)
-
Visibly distance:
-
600 Meters
-
Voltage:
-
AC220V,DC12V,DC24V
-
Rotation speed:
-
pan:0-15°/sec,tilt:0-3°/sec
-
Rotation angle:
-
Rotation angle
-
Applcation:
-
Homeland&Border Security,Prison Facilities&Prison Security,Marine
-
Keywords:
-
guard tower moving head searchlight
-
Keyword 1:
-
variable speed joystick control guard tower moving head searchlight
Product Paramenters
Auto cruise function:searchlight reciprocating motion during limits
Speed adjustment arbitrary switching speed, there are three speed adjustment
Continuously variable:moving speed can be arbitrary switching,both horizontal and vertical with continuously variable
Preset function:searchlight move to the important position at once,searchlight move to the position in 8s
4/8 directions adjustment:searchlight move to any position of freedom
Home functioning:auto protect the most important area
Multiple control:searchlight can be control by wireless remote and wired keyboard and software(RS485 interface)
|
Name
|
wired control searchlight
|
|
|
||
|
Item NO.
|
PD-022-B
|
|
|
||
|
Control Mode
|
wireless remote,wiredkeyboard,software(RS485)
|
|
|
||
|
Control distance
|
remote:0~100meters,keyboard:0~1200meters
|
|
|
||
|
Power
|
150W
|
|
|
||
|
Visibility distance
|
600 meters
|
|
|
||
|
Rotation angle
|
Pan:0~355°,Tilt:±35°
|
|
|
||
|
Rotation speed
|
Pan:0-15°/s,Tilt:0-3°/s
|
|
|
||
|
Input Voltage
|
12VDC,24VDC,220VAC,custom made available
|
|
|
||
|
Tempreature(CCT)
|
warn white,pure white,cool white(3000K,6000K,8000K)
|
|
|
||
|
Work temperature
|
Normal version:-10℃~+45℃,Low temperature version: -30℃~+45℃,
|
|
|
||
|
Material
|
Cast Aluminum+ABS
|
IP grade
|
IP65
|
||
|
Beam Angle
|
6°
|
CRI(Ra>)
|
Ra>90
|
||
|
Light source
|
HID xenon
|
Lamp Dia
|
18CM
|
||
|
Weight
|
6Kg
|
Dimension
|
30*15*48CM(L*W*H)
|
||

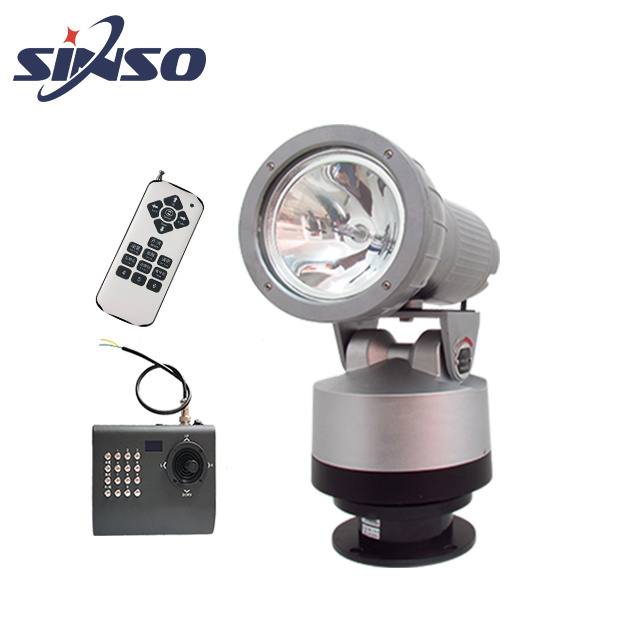

Products Description
wireless remote control
Wired Keyboard control
wired keyboard control,control range up to 1200 Meters,keyboard,with battery inside,can be used without external power supply
8 direction adjustment:right,lift,up,down,top right,top left,bottom right,bottom left,to be able to adjust the direction of freedom
One keyboard control up to 10 searchlights
Software control
Software control:RS485 signal,can be control multiple searchlights,can control any device individually(address code),with 99
grouds timing,turn-on / turn-off time and working mode for searchlight can be setting
also with 8 directions adjustment,to be
able to adjust the direction of freedom,also with auto cruise function and speed adjustment
Auto Cruise/Variable Speed Function
Autocruise Function:there are three cruise modes for auto cruise function :horizontal mode,vertical mode,horizontal vertical mode.
Three speed adjustment(remote):Arbitrary switching High speed, Medium speed,low speed.
H:pan:15°/sec, tilt:3°/s,
M:pan:5°/sec,tilt:2.5°/s,
L:pan:1°/sec, tilt: 0.5°/s
Preset/Auto Scan/Guard Function
Guard Function:searchlight will move to guard position automatically when searchlight without operated for some time.
Preset function:One-click Move to main area, quick response,there are 5 preset positions by remote and 8 preset positions by keyboard control
Auto Scan:stop and cruise between the presets ,residence time can be set
Title goes here.
Shell adopts imported engineering cast aluminum,metal reinforcement stress structure and IP65 waterproof level , with high
resistance to strong collision,windproof , shock and impact resistant ability,hollowed-out design increase area of heat
dissipation,overall stainless steel,High temperature baking, never aging rust,no paint stripping,timeless as new.
Application
searchlight used for Homeland&Border Security,Prison Facilities&Prison Security,Maritime Water &Electric
Power,Aquaculture,Orchard,Farming,Terminal,Bridge ,Ship/Wharf/Oil platform
Power,Aquaculture,Orchard,Farming,Terminal,Bridge ,Ship/Wharf/Oil platform
