Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
LANBOO
-
Model Number:
-
LB16B-PUSH BUTTON SWITCH
-
Diameter:
-
16mm
-
Switch Combination:
-
1NO-Normal Open
-
Operation type:
-
Momentary or Latching
-
Emitting Type:
-
Ring LED/Ring+Symbol LED
-
Lamp color:
-
Red Green Yellow Blue White Orange Purple Pink
-
Lamp voltage:
-
2V/3V/6V/12V/24V/36V/110V/220V/250V
-
Waterproof/Protection:
-
IP65/IK10
-
Rated Voltage/Current:
-
AC250V/10A
-
Shell Metal:
-
Stainless Steel/Copper plating/Aluminum oxide
-
Product name:
-
Chamfer1 NO Momentary Led Ring IP65 Waterproof Sealed Electrical 12 vo
-
Certification:
-
CCC
Quick Details
-
Protection Level:
-
IP65
-
Max. Current:
-
10A
-
Max. Voltage:
-
250VAC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
LANBOO
-
Model Number:
-
LB16B-PUSH BUTTON SWITCH
-
Diameter:
-
16mm
-
Switch Combination:
-
1NO-Normal Open
-
Operation type:
-
Momentary or Latching
-
Emitting Type:
-
Ring LED/Ring+Symbol LED
-
Lamp color:
-
Red Green Yellow Blue White Orange Purple Pink
-
Lamp voltage:
-
2V/3V/6V/12V/24V/36V/110V/220V/250V
-
Waterproof/Protection:
-
IP65/IK10
-
Rated Voltage/Current:
-
AC250V/10A
-
Shell Metal:
-
Stainless Steel/Copper plating/Aluminum oxide
-
Product name:
-
Chamfer1 NO Momentary Led Ring IP65 Waterproof Sealed Electrical 12 vo
-
Certification:
-
CCC
|
||
|
|
|

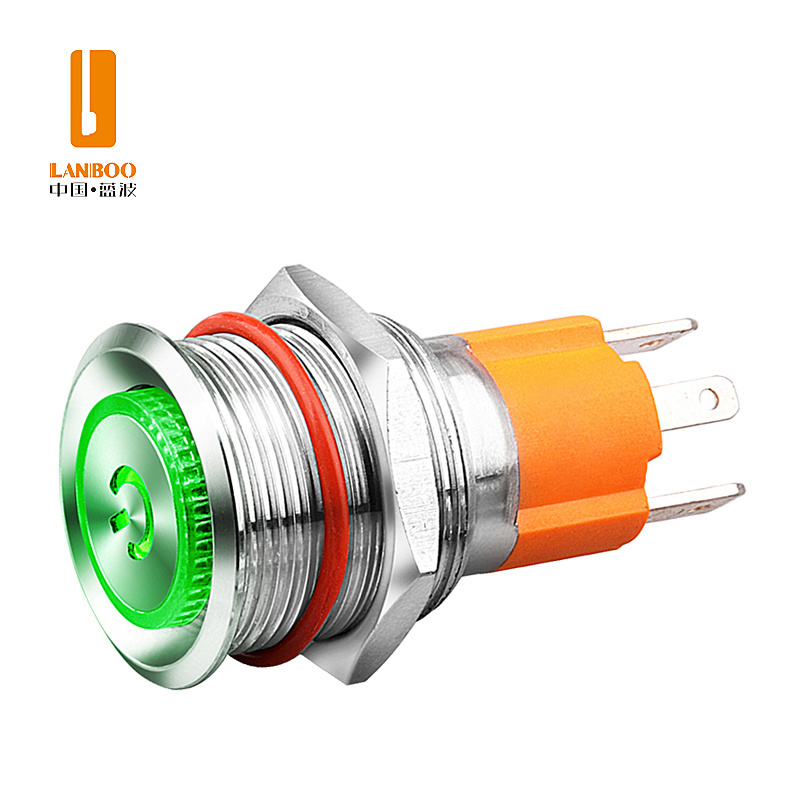

LANBOO 16MM large current 10A IP65 waterproof latch normally open piezo switch
| Model Description | |
| Model NO. | LB16B normally open piezo switch |
| Mounting diameter | 16mm |
| Head shape | Plat Head/High head |
| Switch Combination | 1NO |
| Operation type | Momentary/Latching |
| Illuminating type | Ring LED/Ring+symbol LED |
| Illuminating color | red,green,blue,yellow,orange,white,purple,pink |
| Lamp voltage | 2V/3V/6V/12V/24V/36V/110V/220V/250V |
| Shell material | Stainless steel,aluminum oxide,copper plating |
| The Others Parameters | |||
| Project | Parameter | Project | Parameter |
| Contact type | Slow moving single contact | Operation Schedule | Connected:1.5mm,Total:3.5mm |
| Contact Resistance | ≤50mΩ | Actuating Force | about 8N |
| Insulation Resistance | ≥1000mΩ | Mounting panel thickness | ≤13mm. customised the others |
| Dielectric Strength | 1000VAC min | Nut torque | 5~14N.m |
| Ambient Temperature | -30℃~+80℃ |
Outshell/Press Key
|
Stainless Steel/aluminum oxide/copper plate
|
| Protection Levels | IK10 | Diffuser | PC |
| Electrical Life |
Rated:2A250VAC- 100,000 times Rated:5A250VAC-50,000 times Rated:8A250VAC-20,000 times Reated:10A250VAC- 20,000 times |
Nut
Base Seat/ Bottom Seat |
Nickel brass
PA66 |
| Mechanical Life |
Maintained-200,000 times Self-locking-800,000 times |
Pins Contact |
PA66 H65 Silver Plated |
| Waterproof | IP65 | Spring | Improved steel wire |
| Switch Rated Load | |||||
|
Project |
Parameter | ||||
| Reated Insulation Voltage | AC250V | ||||
| Fusing Current | 15A | ||||
| Rated Voltage | DC12V | DC24V | AC110V | AC250V | |
| Rated Current | Nonreactive Load | 10 | 10 | 10 | 10 |
| Inductive Load | 3 | 3 | 3 | 3 | |
| Led Lamp Parameters | |
| Project | Parameter |
| Led type | High Brightness LED lamp,cool |
| Luminous color | Red,Green,Blue,Yellow,Orange,White,Purple,Pink |
| Rated Voltage | AC/DC3~8V,AC/DC9~24V,AC/DC 25~48V,AC110V,AC220V |
| Rated Current | ≤20mA |
| Reference Life | 40,000hours |
