Quick Details
-
Brand Name:
-
wanshan
-
Motor Power:
-
8-15kw
-
Charging Capacity:
-
0.30-1.0 cubic meter
-
Reclaiming capacity:
-
0.30-1.0 cubic meter
-
Speed of Mixing Drum:
-
29-35r/min
-
Water Supply Mode:
-
Automatic water pump
-
Working Cycle Period:
-
Ideal state mixing drum/1min
-
Discharge Way:
-
Reverse Discharge
-
Outline Dimension:
-
2500*1800*2200
-
UNIQUE SELLING POINT:
-
Simple and efficient
-
Marketing Type:
-
New Product 2023
-
Weight (KG):
-
3000 kg
-
Product name:
-
Cement Mixing Machine Concrete Mixer Tank
-
Model:
-
JZM400
-
Wall thickness of mixing tank:
-
5-10mm
-
Hopper wall thickness:
-
5-10mm
-
Feeding method:
-
Automatic Feeding
-
Engine:
-
Elctric
-
Control Method:
-
CNC Controller
-
Application:
-
Mixed Concrete Mortar
-
Discharge height:
-
Customised
-
Color:
-
Customised
Quick Details
-
Mixing Power:
-
5.5kw
-
Productivity:
-
2900-3200L/H
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
wanshan
-
Motor Power:
-
8-15kw
-
Charging Capacity:
-
0.30-1.0 cubic meter
-
Reclaiming capacity:
-
0.30-1.0 cubic meter
-
Speed of Mixing Drum:
-
29-35r/min
-
Water Supply Mode:
-
Automatic water pump
-
Working Cycle Period:
-
Ideal state mixing drum/1min
-
Discharge Way:
-
Reverse Discharge
-
Outline Dimension:
-
2500*1800*2200
-
UNIQUE SELLING POINT:
-
Simple and efficient
-
Marketing Type:
-
New Product 2023
-
Weight (KG):
-
3000 kg
-
Product name:
-
Cement Mixing Machine Concrete Mixer Tank
-
Model:
-
JZM400
-
Wall thickness of mixing tank:
-
5-10mm
-
Hopper wall thickness:
-
5-10mm
-
Feeding method:
-
Automatic Feeding
-
Engine:
-
Elctric
-
Control Method:
-
CNC Controller
-
Application:
-
Mixed Concrete Mortar
-
Discharge height:
-
Customised
-
Color:
-
Customised

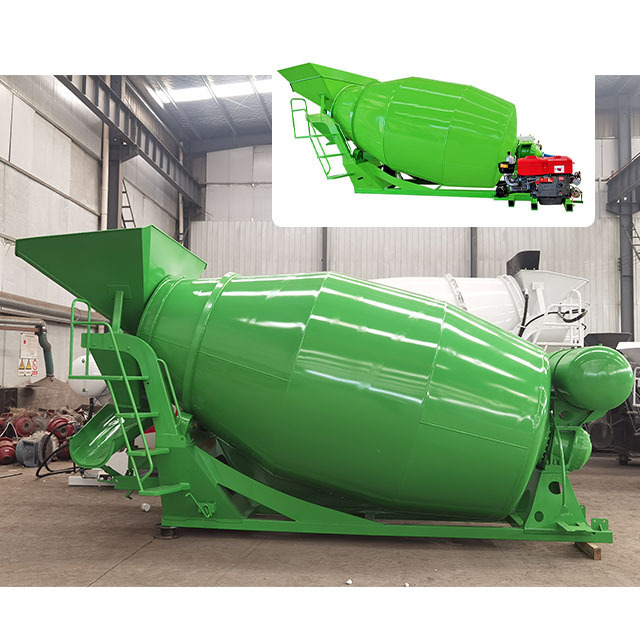

Concrete Mixer Tank
The concrete mixing tank is a kind of concrete transportation tank, which has the Dwifungsi of carrying and
mixing concrete
. lt can mix or stir the concrete while transporting it, so that theconcrete will not appear layered segregation, or even initial settinq. Ensure the quality oftransported concrete.
|
Model |
2 Cubic meters |
4 Cubic meters |
6 Cubic meters |
8 Cubic meters |
|
Tank material |
Carbon steel 235 |
|||
|
Tank thickness(mm) |
6 |
|||
|
Tank dia.(mm) |
1550 |
1750 |
2050 |
2200 |
|
Antirust treatment |
Shot blasting antirust treatment |
|||
|
Tilt angle(°) |
14 |
15 |
15 |
15 |
|
Hydraulic system |
ZHENJIANG |
|||
|
Water supply(l) |
200 |
200 |
350 |
400 |
|
Discharge residual rate(%) |
≤0.5% |
|||
|
Mounting size(mm) |
Customized |
|||
|
Transportation size(mm) |
3510*1550 *1780 |
4345*1750 *2215 |
4935*2050 *2365 |
5296*2200 *2532 |
|
Weight(kg) |
1300 |
1445 |
2260 |
3400 |
