Quick Details
-
Engine Brand:
-
Top Brand
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Acntruck
-
Dimension(L*W*H):
-
2760*1400*2580mm
-
Drum diameter:
-
700mm
-
Product name:
-
Road Roller LTC204P
-
Static linear load:
-
150N/cm
-
Vibration amplitude:
-
0.5Mm
-
Vibration frequency:
-
50Hz
-
Ground clerance:
-
320mm
-
Travel speed:
-
0-12Km/h
-
Grade ability:
-
25%
-
Certification:
-
CE/ISO
Quick Details
-
Type:
-
Vibratory Roller
-
Power:
-
26.5kw
-
Weight:
-
4ton, 4000kg
-
Engine Brand:
-
Top Brand
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Acntruck
-
Dimension(L*W*H):
-
2760*1400*2580mm
-
Drum diameter:
-
700mm
-
Product name:
-
Road Roller LTC204P
-
Static linear load:
-
150N/cm
-
Vibration amplitude:
-
0.5Mm
-
Vibration frequency:
-
50Hz
-
Ground clerance:
-
320mm
-
Travel speed:
-
0-12Km/h
-
Grade ability:
-
25%
-
Certification:
-
CE/ISO
Specification
LTC204P

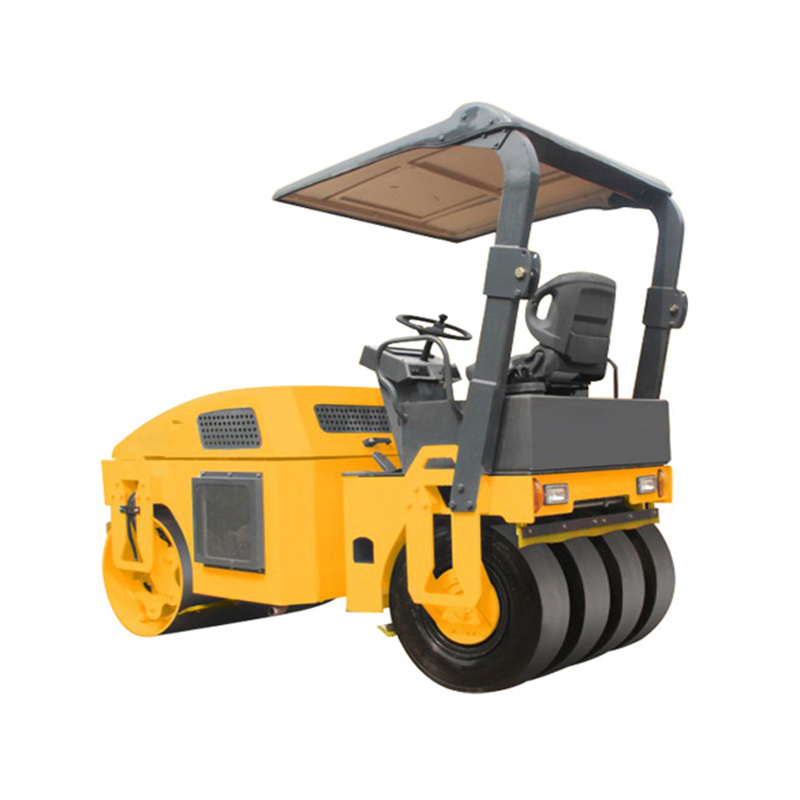

Construction Machinery 4 Ton Hydraulic Vibratory Road Roller
01 Hydraulic vibration, great centrifugal force and high compactness.
02 Machnical travel, pneumatic tyre drive, three speed changes both forward and backward and high speed travelling.
03 Articulated frame, hydraulic steering, small turning radius and fexible drive.
04 Full anti-corrosive spray water system, large capacity water tank, electrical pressurized sprinkler and unique nozzle design which covered all of the steel and pneumatic wheel.
05 Two sets of brake devices, a hand brake and foot pedal brake, assure the machine’s safety and dependability.
06 Both clutch and foot pedal brake system are adopted hydraulic power and saving manpower to operate.
|
Model
|
|
|
|
LTC204P
|
|
|||
|
Operating mass
|
|
|
kg
|
3800
|
|
|||
|
Statice linear load
|
|
|
N/cm
|
Front 150/ Rear 200
|
|
|||
|
Vibration amplitude
|
|
|
mm
|
0.5
|
|
|||
|
Centrifuel force
|
|
|
Kn
|
30
|
|
|||
|
Vibration frequency
|
|
|
Hz
|
50
|
|
|||
|
Max Travel apeed
|
|
|
Km/h
|
0-12
|
|
|||
|
Ground clerance
|
|
|
mm
|
320
|
|
|||
|
Electrial voltage
|
|
|
V
|
24
|
|
|||
|
Grade ability
|
|
|
%
|
25
|
|
|||
|
Overall dimension (LxWxH)
|
|
|
mm
|
2760x1400x2520
|
|
|||
|
Drum diameter
|
|
|
mm
|
700
|
|
|||
|
Drum width
|
|
|
mm
|
1300
|
|
|||
|
Quantity of rear tire
|
|
|
Pic
|
4
|
|
|||
|
Specification of rear tire
|
|
|
|
7.50-15
|
|
|||
|
Wheel base
|
|
|
mm
|
2010
|
|
|||
|
Diesel egnine power
|
|
|
Kw
|
26.5
|
|
|||
|
Diesel egnine model
|
|
|
|
ZN390B
|
|
|||
|
Water tank capacity
|
|
|
L
|
200
|
|
|||
