Quick Details
-
Voltage:
-
220V/50HZ
-
Power:
-
26.75kw
-
Weight:
-
800 KG
-
Dimension(L*W*H):
-
7000*1500*3000mm
-
Product name:
-
Corn Grinding Mill
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Electric Part:
-
Famous Brand
-
Application:
-
Grain Processing Line
-
Raw material:
-
Wheat Maize Corn Rice
-
Usage:
-
Grinding Wheat Maize Corn Rice
-
Used for:
-
Roller Mill Maize Milling Machine
-
Final products:
-
Fine Powder
-
Local Service Location:
-
None
-
Certification:
-
ISO9001
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
ARROW
-
Production Capacity:
-
300-800KG
-
Voltage:
-
220V/50HZ
-
Power:
-
26.75kw
-
Weight:
-
800 KG
-
Dimension(L*W*H):
-
7000*1500*3000mm
-
Product name:
-
Corn Grinding Mill
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Electric Part:
-
Famous Brand
-
Application:
-
Grain Processing Line
-
Raw material:
-
Wheat Maize Corn Rice
-
Usage:
-
Grinding Wheat Maize Corn Rice
-
Used for:
-
Roller Mill Maize Milling Machine
-
Final products:
-
Fine Powder
-
Local Service Location:
-
None
-
Certification:
-
ISO9001
New Deign Salt Sugarcane Soybean Maize Crusher Machine

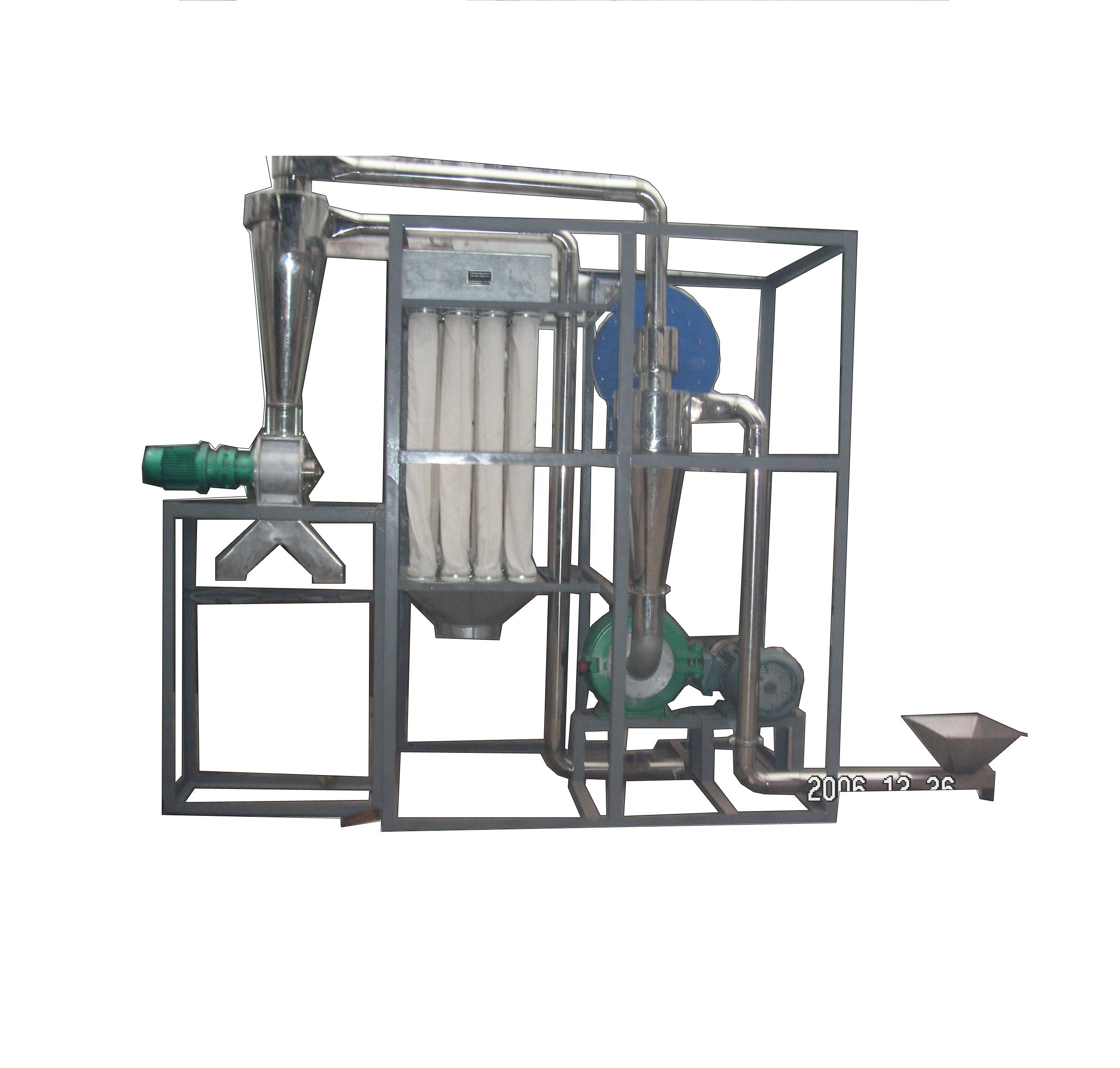

It is constituted of Main grinder, Auxiliary machines and Controller box with the features of pneumatic separation. Its processing steps are continuous which will save more time and human power. It will finish the whole process from feeding, milling and discharging the powder automatically without more human power. It can collect the dust during grinding to avoid environment pollution. It is made of stainless steel. It can be used to mill or grind lots of foods or medicinal materials or grains, such as corn, rice, wheat, beans and so on.
The materials are feed from hopper into grinding chamber, and sheared by the high speed cutters, then the materials are delivered into the whirlwind separator, bag dust collector by the negative pressure sucking method.
II. Why You Should Choose Us
We have several experience on this field, and by now, we have established deep and friendly cooperation with many countries of the world, such as Europe, Asia ,Africa etc. For many years, we provided reliable quality and considerable service and is popular in the world.
III. Technical Parameters
|
Model |
Capacity |
Size of input granules (mm) |
Speed of Main Shaft |
Fineness of Powder |
Power |
Dimension (L*W*H) |
|
LTGW-520 |
300- 8 00 kg/h |
≤30mm |
2800 r/min |
20-120 mesh |
26.75 kw |
7000*1500*3000mm |
System Composition:
|
No. |
Item |
Specifications |
||
|
1 |
Main Machine |
Feeding Hopper |
SS304, Thickness:1.5mm |
|
|
Output Hopper |
SS304, Thickness: 1.2mm |
|||
|
Output Pipe |
SS304, Thickness: 1mm |
|||
|
Grinding Chamber |
SS |
|||
|
Main Grinder |
Angle Iron withSS304cover |
|||
|
Belt Pulley |
Carbon Steel |
|||
|
Motor |
Power: 18.5KW |
|||
|
2 |
Powder Collector |
Cyclone Separator |
SS304 |
|
|
Junctions |
SS304 |
|||
|
Pipes |
SS304, Thickness: 1mm |
|||
|
Airlock Device |
Power: 0.75KW |
|||
|
Framework |
SS Square Tubes, Thickness: 1mm |
|||
|
3 |
Dust Collector |
Collecting Method |
Pulse Dust Collector |
|
|
Collecting Bin |
SS304 |
|||
|
Pipes |
SS304, Thickness: 1mm |
|||
|
Junctions |
SS304 |
|||
|
Draught Fan |
Power: 7.5KW |
|||
|
4 |
Controller Box |
Electrical Apparatus |
DELIXI |
|
|
Box Body |
SS304 |
|||
IV. Products It can Make
V. Strong Fumigation Case or 20'GP or 40'HQ
The machines is possible to pack in wooden case or nude pack after wraping by plastic film.
VI. We Provide Satisfied Service & Turnkey Solution
a.) Consultation service before, during, and after sales;
b.) Project planning and design service;
c.) Debugging of equipment until everything is functional;
d.) Management of equipments' long distance shipping from seller's factory to the named place by buyer;
e.) Training of equipment maintenance and operating personally;
d.) New production techniques and formulas;
e.) Provide 1 year complete warranty and life-time maintenance service.
VII. Our Prestigious Reputation Got form the World
Our machines are exported to more than 90countries and areas and got high praise of customers. Some of them have become our agents in their area. We hope to hold long friendly business relationship with more clients all over the world in the future.
VIII. Who We Are
We, Shandong Light M & E Co., Ltd are located in the famous industry city-Jinan city, capital of Shandong Province.
We are professional manufacturer of food extruder and mainly deal with the manufacture, research and development of the inflating food machine. According to the clients’ different requirements, we could offer the whole complete processing line for all kinds of expanded snacks, corn flakes, nutrition powder, and pet food and so on. Our technical assistance will help clients produce high quality products all the time.
As a leading manufacturer of inflating food machinery, we are selling and marketing the machines to many countries in the world. We keep improving our machines and upgrading techniques to satisfy the requirements of all the clients. Depending on our rich experience and professional experts on the extruded food industry, we could offer the most suitable and complete program to assure that your investment will get biggest profit.
IX. We are Reliable and Certified
Since the establishment of our company, we have always manufacturing our machines according to the authorized standards, by now ,we have got several certificates including CE and ISO9001 and we are 8 Years Alibaba Golden Supplier.
