Quick Details
-
Range of Spindle Speed(r.p.m):
-
65 - 1810 r.p.m
-
Max. Turned Length (mm):
-
1000 mm
-
Spindle Motor Power(kW):
-
1.5
-
Place of Origin:
-
China
-
Brand Name:
-
NEWDRAGON
-
Model Number:
-
CQ6230
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
1940X750X1400mm
-
Weight (KG):
-
640 KG
-
CNC or Not:
-
Normal
-
Automatic Grade:
-
Manual
-
Width of bed:
-
181mm
-
Max. Swing Diameter:
-
310mm
-
Power:
-
1.5KW
-
Weight:
-
620
Quick Details
-
Max. Length of Workpiece (mm):
-
1000
-
Machining Capacity:
-
Medium Duty
-
Spindle Bore(mm):
-
38
-
Range of Spindle Speed(r.p.m):
-
65 - 1810 r.p.m
-
Max. Turned Length (mm):
-
1000 mm
-
Spindle Motor Power(kW):
-
1.5
-
Place of Origin:
-
China
-
Brand Name:
-
NEWDRAGON
-
Model Number:
-
CQ6230
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
1940X750X1400mm
-
Weight (KG):
-
640 KG
-
CNC or Not:
-
Normal
-
Automatic Grade:
-
Manual
-
Width of bed:
-
181mm
-
Max. Swing Diameter:
-
310mm
-
Power:
-
1.5KW
-
Weight:
-
620

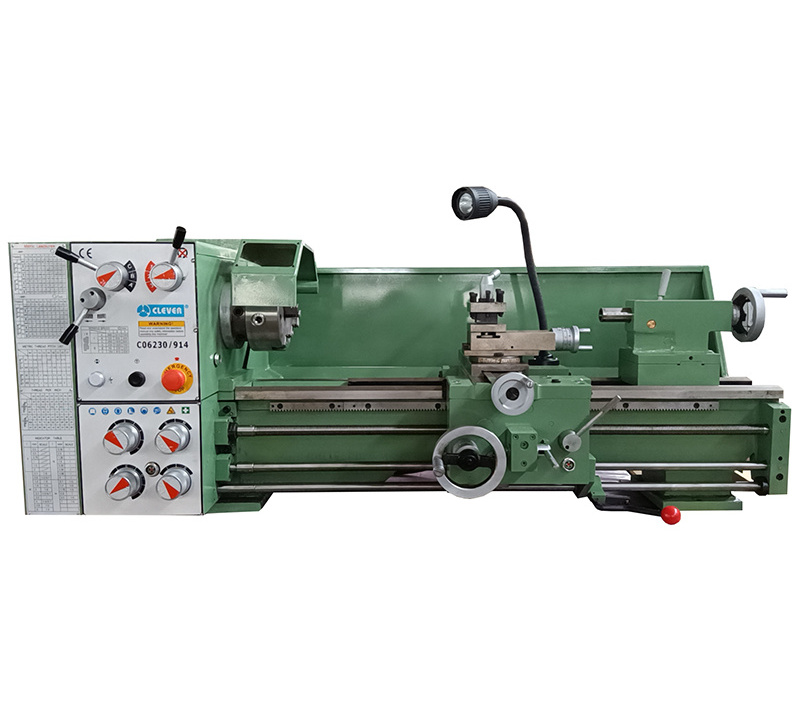

CQ6230 high precision gear bench lathe
FEATURS:
CQ6230 horizontal metal precision manual bench lathe machine with CE
Bench lathe machine CQ6230
Precision ground and hardened bed ways.
The spindle is supported with precision roller bearings.
Headstock gears are made of high quality steel ground and hardened.
Easy operating speed change levers.
Removable gap is provided for larger diameter work.
Easy operating gear box has various feeds and thread cutting function.
|
Model |
CQ6230 |
|
Max. swing over bed |
310mm |
|
Max.swing over cross slide |
180mm |
|
Max. swing over gap |
450mm |
|
Distance between centers |
750/910/1000mm |
|
Width of bed |
181mm |
|
Spindle bore |
38mm |
|
Taper of spindle bore |
MT5 |
|
Range of spindle speeds |
65-1810(1400)rpm |
|
Taper of tailstock |
MT3 |
|
Range of metric threads |
0.4-7mm |
|
Range of inch threads |
4-60TPI |
|
Metric threads can be cut |
0.527-1.2912mm/rev |
|
Inch threads can be cut |
0.011-0.276mm/rev |
|
Range of longitudinal feeds |
130mm |
|
Range of cross feeds |
75mm |
|
Max. travel of cross slide |
100mm |
|
Max.travel of top slide |
1.5KW |
|
N.W. |
500/540/640kg |
|
G.W. |
550/590/670kg |
|
Packing size |
1480/1680/1970x750x1400mm |
Standard accessories:
3-jaw chuck,
change gears,
dead center
oil gun
splash guard
foot stand
oil tray
optional accessories
4-jaw chuck
face plate
steady and follow rest
working lamp
foot brake
lamp
rolling center
drill chuck with arbor
leadscrew guard
chuck guard
localizer
clutch for feed rod
quck change tool post
DRO 2 axis
DRO 3 axis
