Quick Details
-
Cutting Area:
-
single head 800*600mm
-
Control Software:
-
DSP
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
G.weike
-
Weight (KG):
-
260 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Online support, Field installation, commissioning and training, Video technical support
-
corlor:
-
According to the client's requirements
-
size:
-
2,120*1,810*1,070mm
-
weight:
-
450kg
-
Certification:
-
ce, ISO
-
After Warranty Service:
-
Video technical support, Online support
-
Local Service Location:
-
Egypt, Turkey, Viet Nam, Mexico
-
Showroom Location:
-
Egypt, United Kingdom, Viet Nam, India
-
Marketing Type:
-
Ordinary Product
Quick Details
-
Laser Type:
-
CO2
-
Cutting Speed:
-
0-24,000mm/min
-
Cooling Mode:
-
WATER COOLING
-
Cutting Area:
-
single head 800*600mm
-
Control Software:
-
DSP
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
G.weike
-
Weight (KG):
-
260 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Online support, Field installation, commissioning and training, Video technical support
-
corlor:
-
According to the client's requirements
-
size:
-
2,120*1,810*1,070mm
-
weight:
-
450kg
-
Certification:
-
ce, ISO
-
After Warranty Service:
-
Video technical support, Online support
-
Local Service Location:
-
Egypt, Turkey, Viet Nam, Mexico
-
Showroom Location:
-
Egypt, United Kingdom, Viet Nam, India
-
Marketing Type:
-
Ordinary Product
Laser cutting machine LC1612 dual head
Adopt dual laser heads,with the standard honeycomb,it is equal to two machine,which greatly improve the processing efficiency .
|
Laser -type |
sealed CO2 laser tube |
|
Laser power |
80W,100w,130w,150w,200w(GSI)Optional |
|
Cutting area |
single head 800*600mm |
|
whole machine size |
2120*1,810*1,070mm |
|
Cutting speed |
0-24,000mm/min |
|
Resetting positioning accuracy |
± 0.0 2 mm |
|
Working voltage |
AC110-220V± 10% , 50-60Hz |
|
Gross power |
<2000w |
|
Operating temperature |
0-45°C |
|
Operating humidity |
5-95% |
|
Minimum shaping character |
English 1*1mm |
|
Graphic format supported |
BMP,PLT,DST,DXF,and AI |
|
Driving system |
stepper |
|
Cooling mode |
Water-cooling and protection system |
|
Controlling software |
DSP control system |
|
Compatible software |
CorelDraw AutoCAD Photoshop |
|
Net weight |
450kg |
A pplicable materials :wood,bamboo,jade,organic glass,crystal,plastic garments,paper,lesther,rubber,ceramic,glass and other nonmental materials.
A pplicable industries: advertisement,arts and crafts,lesther,toys,garments, model,building upholster,computerized embroidery and clipping,packaging and paper industry

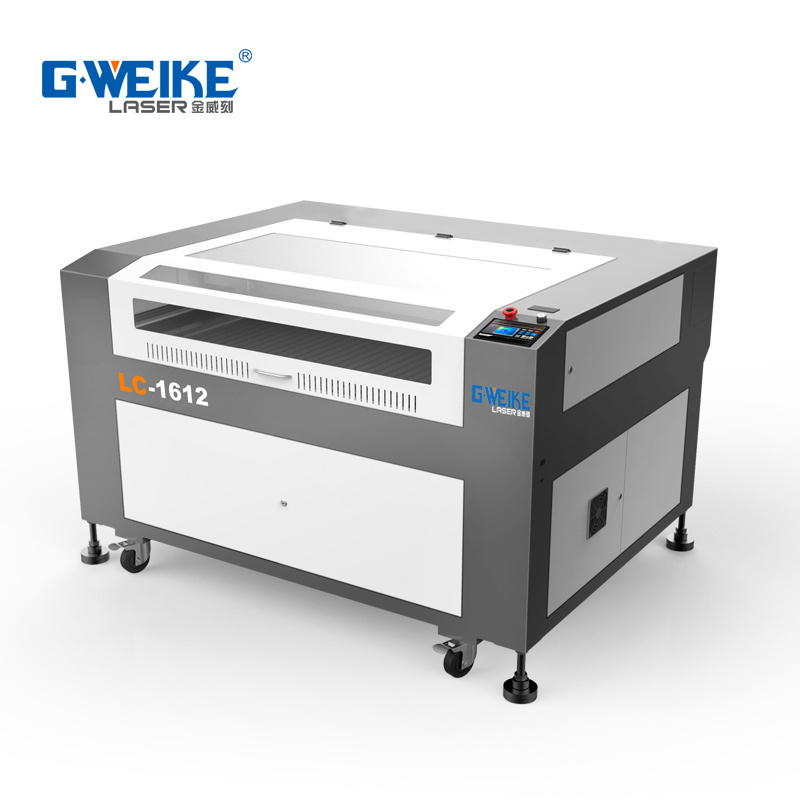

photo of the machine:
The sample:
The parts of the machine:
