Quick Details
-
Brand Name:
-
APIE
-
Model Number:
-
APEA2500-APEA65000
-
Condition:
-
New
-
Weight:
-
75
-
Working Pressure:
-
80-240 bar
-
Max. Torque:
-
4499Nm
-
Product name:
-

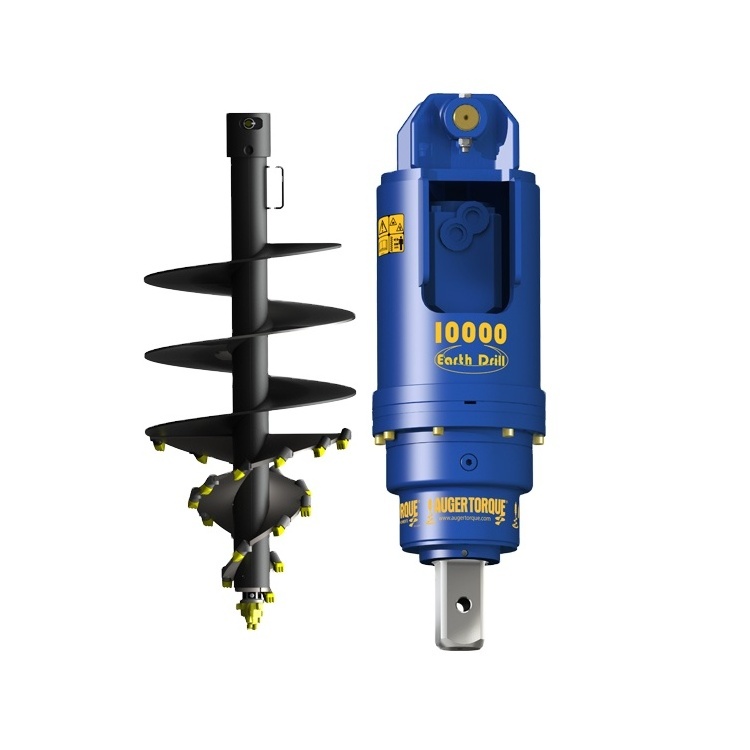

Excavator Hydraulic Earth Augers
-
Material:
-
Manganese steel
-
Teeth Material:
-
Alloy
-
Hot Teeth Type:
-
round teeth
-
Hot auger lengths:
-
1.5-3m
-
Hot torque range:
-
4500-65000Nm
-
Certification:
-
CE ISO
-
Application:
-
excavators, skid steer loader, backhoe loader, telescopic handler etc
-
diameter:
-
244mm
-
Workinig Oil Flow:
-
50-95 lpm
Quick Details
-
Suitable Excavator(ton):
-
1-45 t
-
Marketing Type:
-
New Product 2023
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
APIE
-
Model Number:
-
APEA2500-APEA65000
-
Condition:
-
New
-
Weight:
-
75
-
Working Pressure:
-
80-240 bar
-
Max. Torque:
-
4499Nm
-
Product name:
-
Excavator Hydraulic Earth Augers
-
Material:
-
Manganese steel
-
Teeth Material:
-
Alloy
-
Hot Teeth Type:
-
round teeth
-
Hot auger lengths:
-
1.5-3m
-
Hot torque range:
-
4500-65000Nm
-
Certification:
-
CE ISO
-
Application:
-
excavators, skid steer loader, backhoe loader, telescopic handler etc
-
diameter:
-
244mm
-
Workinig Oil Flow:
-
50-95 lpm
Product Paramenters
|
Technical Specification of Auger Drill
|
|
|
|
|
|
|
|
|||||||
|
Type
|
Unit
|
APEA2500
|
APEA3000
|
APEA3500
|
APEA4500
|
APEA6000
|
APEA8000
|
|||||||
|
Suitable Excavator
|
T
|
1.5-3T
|
2-4T
|
2.5-4.5T
|
3-5T
|
4.5-6T
|
5-7T
|
|||||||
|
Torque
|
Nm
|
790-2593
|
1094-3195
|
1374-3578
|
1710-4117
|
2570-6917
|
3163-8786
|
|||||||
|
Pressure
|
Bar
|
70-240
|
80-240
|
80-240
|
80-240
|
80-240
|
80-240
|
|||||||
|
Flow
|
Lpm
|
25-65
|
25-70
|
40-80
|
50-92
|
40-89
|
48-110
|
|||||||
|
Rotate Speed
|
Rpm
|
36-88
|
30-82
|
35-75
|
35-68
|
20-46
|
20-45
|
|||||||
|
Output Shaft
|
mm
|
65Rnd
|
65Rnd
|
65Rnd
|
65Rnd
|
75Sq
|
75Sq
|
|||||||
|
Weight
|
Kg
|
95
|
100
|
105
|
110
|
105
|
110
|
|||||||
|
Max Auger Diameter Clay/Shale
|
mm
|
300
|
300
|
350
|
350
|
500
|
600
|
|||||||
|
Max Auger Diameter Earth
|
mm
|
350
|
400
|
450
|
500
|
600
|
800
|
|||||||
|
Technical Specification of Auger Drill
|
|
|
|
|
|
|
|
|||||||
|
Type |
Unit
|
APEA9000
|
APEA15000
|
APEA20000
|
APEA25000
|
APEA30000
|
APEA59000
|
|||||||
|
Suitable Excavator
|
T
|
6-8T
|
10-15T
|
12-17T
|
15-22T
|
17-25T
|
20-35T
|
|||||||
|
Torque
|
Nm
|
3854-9961
|
5307-15967
|
6715-20998
|
8314-25768
|
15669-30393
|
27198-59403
|
|||||||
|
Pressure
|
Bar
|
80-240
|
80-260
|
80-260
|
80-260
|
80-260
|
160-350
|
|||||||
|
Flow
|
Lpm
|
70-150
|
80-170
|
80-170
|
80-170
|
80-170
|
100-250
|
|||||||
|
Rotate Speed
|
Rpm
|
23-48
|
23-48
|
15-32
|
12-26
|
12-21
|
10-22
|
|||||||
|
Output Shaft
|
mm
|
75Sq
|
75Sq
|
75Sq
|
75Sq
|
75Sq
|
110Sq
|
|||||||
|
Weight
|
Kg
|
115
|
192
|
200
|
288
|
298
|
721
|
|||||||
|
Max Auger Diameter Clay/Shale
|
mm
|
800
|
900
|
1000
|
1100
|
1200
|
1500
|
|||||||
|
Max Auger Diameter Earth
|
mm
|
1000
|
1200
|
1400
|
1500
|
1600
|
2000
|
|||||||
Q1: How to choose a suitable model?
Pls kindly let us know your following information, and then we recommend right model for you.
1 Brand and model of Excavator/Backhoe/Skid Steer loader 2.Hole diameter 3.Hole depth 4.Soil condition
Pls kindly let us know your following information, and then we recommend right model for you.
1 Brand and model of Excavator/Backhoe/Skid Steer loader 2.Hole diameter 3.Hole depth 4.Soil condition
Q2: Can earth drill fit a variety of machines?
Yes.as long as the carrier's specifications agree with the parameters of the Earth Drill as outlined in our catalogue
Yes.as long as the carrier's specifications agree with the parameters of the Earth Drill as outlined in our catalogue
Q3: Do I need to purchase spare parts when ordering an earth drill?
It is not necessary to purchase spare parts for the Planetary Drive as this is a sealed unit, however it is important to follow the service schedule as outlined in the operator manual. It is advisable to purchase spare wearing parts (teeth and Pilots).
It is not necessary to purchase spare parts for the Planetary Drive as this is a sealed unit, however it is important to follow the service schedule as outlined in the operator manual. It is advisable to purchase spare wearing parts (teeth and Pilots).
Q4: How about the delivery time?
Within 5-10 working days after receiving T/T payment.
Within 5-10 working days after receiving T/T payment.
