Quick Details
-
Max. Loading Capacity:
-
20000L
-
Weight (KG):
-
100 KG
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Myonly
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
1350*450*1160mm
-
Power (kW):
-
750 kW
-
Product name:
-
ribbon mixer
-
Keyword:
-
powder mix machine
-
Machine Type:
-
Horizontal
-
Mixing type:
-
Double Ribbon Mixer
-
Function:
-
Mxing Dry Powder
-
Jacket:
-
Heating Jacket Avaible
-
Control:
-
PLC Control System
-
Discharge:
-
Tilting Discharge
-
Heating method:
-
Oil Circulated
-
Advantage:
-
Easy Operation High Efficiency
Quick Details
-
Barrel Volume (L):
-
100-20000L
-
Max. Loading Volume (L):
-
20000 L
-
Range of Spindle Speed(r.p.m):
-
1 - 20 r.p.m
-
Max. Loading Capacity:
-
20000L
-
Weight (KG):
-
100 KG
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Myonly
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
1350*450*1160mm
-
Power (kW):
-
750 kW
-
Product name:
-
ribbon mixer
-
Keyword:
-
powder mix machine
-
Machine Type:
-
Horizontal
-
Mixing type:
-
Double Ribbon Mixer
-
Function:
-
Mxing Dry Powder
-
Jacket:
-
Heating Jacket Avaible
-
Control:
-
PLC Control System
-
Discharge:
-
Tilting Discharge
-
Heating method:
-
Oil Circulated
-
Advantage:
-
Easy Operation High Efficiency
Products Description
Introduction

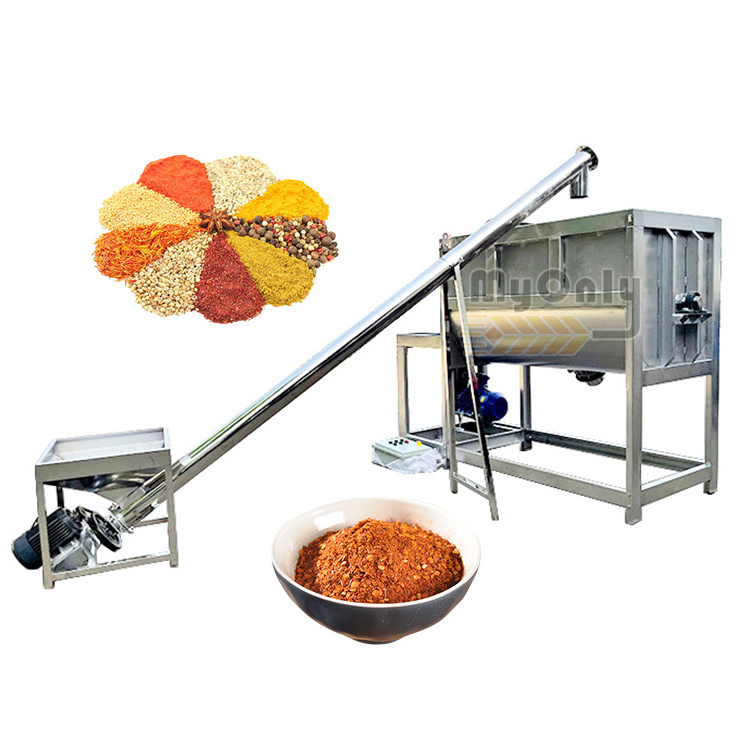

The horizontal ribbon mixer is a common industrial mixing equipment. The material has both circular and axial movements under the action of the paddle. According to the movement state of the material, it generates convection mixing, shear mixing and diffusion mixing. Through high-speed rotation, the material agglomerates can be dispersed, achieving ideal mixing effect.
Application
The horizontal ribbon mixer is used in a variety of fields, such as the manufacture of chemicals, the food industry and construction materials. It can mix various powders, granules and other materials. It is not only suitable for small batch production and experimental research, but also can be integrated with other production line equipment to form an automated production process and improve production efficiency and output.
Features
1.
The bucket and paddle are all made of stainless steel, which is easy to clean and avoids corrosion.
2.
Two-way S-shaped propeller blades, the material is mixed quickly and evenly without dead ends, and scrapers can be installed on the spiral belt.
3.
The special design of the protective door makes it easy to maintain the equipment, and it is specially equipped with a man ladder to make feeding more convenient (a hoist can also be equipped according to customer needs).
4.
The visible window on the top is easy to observe the mixing situation.
5.
The overturning mixer is equipped with a cylinder overturning function, which is convenient for users to discharge and clean during use.
parameters
|
Model
|
Capacity(l/batch)
|
Power(kw)
|
Dimension(mm)
|
|
MY-100
|
70
|
2.2
|
700*450*550
|
|
MY-150
|
105
|
3
|
700*450*570
|
|
MY-300
|
210
|
4
|
1000*600*750
|
|
MY-500
|
350
|
7.5
|
1200*700*800
|
|
MY-1000
|
700
|
11
|
1500*800*1000
|
|
MY-1500
|
1050
|
15
|
1500*950*1300
|
|
MY-2000
|
1400
|
18.5
|
1500*1200*1400
|
|
MY-3000
|
2100
|
18.5
|
2200*1200*1400
|
|
MY-4000
|
2800
|
22
|
2500*1300*1500
|
|
MY-5000
|
3500
|
30
|
2500*1400*1600
|
