Quick Details
-
Certificate:
-
CE,MSDS
-
Material:
-
90% dry powder
-
HS Code:
-
8424100090
-
Weight:
-
0.6kg
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Tenyu Tech
-
Product name:
-

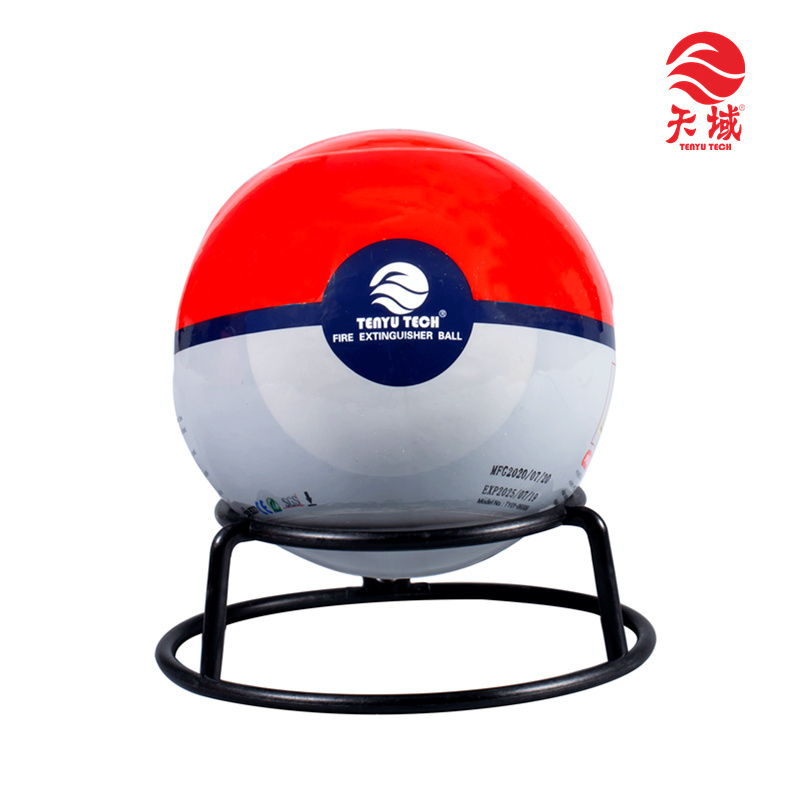

Fire extinguisher ball
-
Certificate:
-
CE,MSDS
-
Material:
-
90% dry powder
-
HS Code:
-
8424100090
-
Weight:
-
0.6kg
Product Description
Thank you for using Tenyu Tech automatic fir
e extinguishing ball/TENYU
TECH® automatic fire extinguishing ball. In order for you to use this
product correctly, please read the manual carefully before using it and
keep it for future reference.
This manual is applicable to TY01-0600B,TY01-1200B,TY01-1300B,
TY01-1350B,TY01-2000B, TY01 -2800B,TY01 -4000B, TY01-6000B
model products. All contents in the book are only for users' reference
during installation and use. The specific content shall prevail.
Packaging & Shipping
Packing list: Automatic fire extinguishing ball×1, Bracket*×1, Φ6mm Screw*×2, Φ6mm Expansion bolt* ×2, The manual×1, Certificate of approval×1. * : The hanging product does not contain this accessory.
INSTALLATION INSTRUCTIONS
Method 1: Installation as shown in the left picture.
1, Place the bracket to the intended installation place then make
markings for the bracket holes on the surface. With a drill make holes
on the markings same size as the screws anchors.
2, After the expansion bolt is inserted into the hole, place the bracket in
the installation position; Pass the screw through the mounting hole
of the bracket and screw in the expansion bolt.
3, Place the automatic fire extinguishing ball securely on the bracket with
the arrow pointing down, just like the left picture.
Method 2: Installation as shown in the right picture.
1, Placing the bracket in the target location;
2, Place the automatic fire extinguishing ball securely on the bracket
with the arrow pointing down, just like the right picture.
PRODUCT SPECIFICATION
|
Item No.
|
Weight
|
Diameter
|
Acticating Time
|
Extinguishing Range
|
|
TY01-0600B
|
0.60kg |
116 mm
|
≤3s
|
≈1.3 m³
|
|
TY01-1200B
|
1.20kg |
150 mm
|
≤5s
|
≈2.5 m³
|
|
TY01-1300B
|
1.30kg |
150 mm
|
≤5s
|
≈3.0 m³
|
|
TY01-1350B
|
1.35 kg |
152 mm
|
≤3s
|
≈3.0 m³
|
|
TY01-2000B
|
2.00kg |
171 mm
|
≤3s
|
≈4.2 m³
|
|
TY01-2800B
|
2.80 kg |
186 mm
|
≤3s
|
≈6.0 m³
|
|
TY01-4000B
|
4.00 kg |
215 mm
|
≤3s
|
≈9.0 m³
|
|
TY01-6000B
|
6.00 kg |
236 mm
|
≤3s
|
≈13.0 m³
|
Main Extinguishing Agent: 90% ABC Chemical Powder(NH
4
H
2
PO
4
)
Alarm: ≈120dB
Life Span: 5 Years (No Maintenance Required)
