Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
ANISUN
-
Model Number:
-
A-TC990A
-
Warranty:
-
3 Years
-
Color:
-
Blue/ Red
Quick Details
-
Motor Power:
-
0.75/1.1kw
-
Operating Pressure:
-
8-10bar
-
Power Supply:
-
220V/380V
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
ANISUN
-
Model Number:
-
A-TC990A
-
Warranty:
-
3 Years
-
Color:
-
Blue/ Red

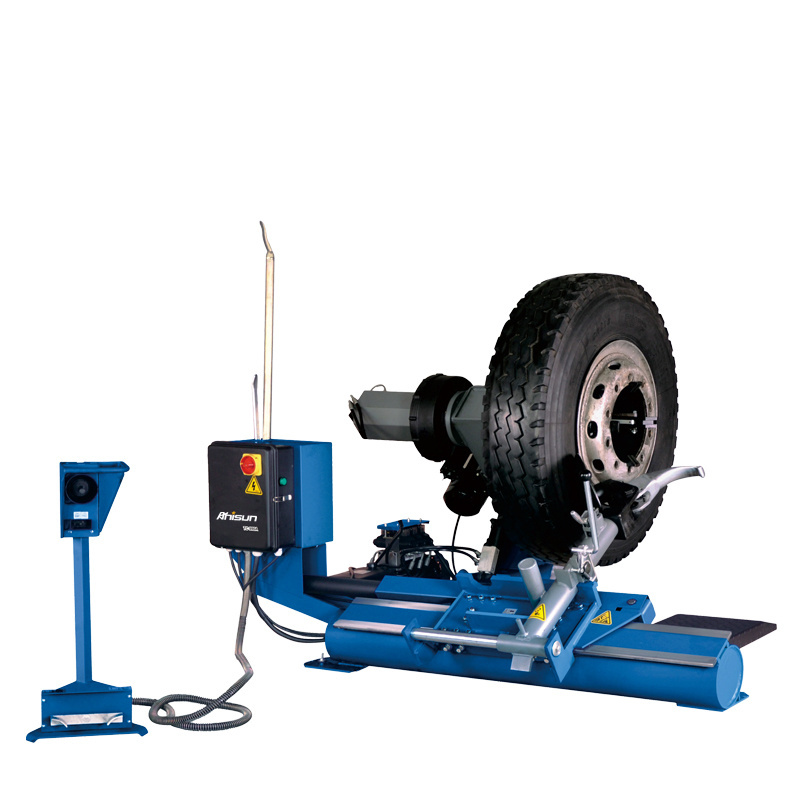

Product Description
|
Model
|
TC-990A
|
Noise Level
|
<75dB
|
|
Max wheel weight
|
1500kg
|
Net Weight
|
517KG
|
|
Maximum Wheel Width
|
760mm
|
Gross Weight
|
633KG
|
|
Maximum Wheel Diameter
|
1600mm
|
Packing Dimension
|
2030*1580*900mm
|
|
Rim diameter
|
14″-26″
|
Volume
|
2.89m³
|
|
Operating Pressure
|
8-10bar
|
Quantity in 20″Container
|
9
|
|
Motor Power
|
0.75/1.1KW
|
Quantity in 40″Container
|
21
|
Product Feature
1. Main motor and related electrical appliances conform to CE standard.
2. The lifting arm cylinder is centrally supported, which is convenient to operate and the large tire is not easy to be deformed.
3. The electronic control box meets the E-class protection standard.
4. The reducer is made of aluminium alloy by die casting, which is beautiful, good sealing and oil-free.
5. The trunk arm and the disassembly head are made of special material, which will not deform when disassembling and assembling large tires; the disassembly head angle is good, and it is convenient to disassemble and assemble.
6. It is equipped with a moving board to facilitate the loading and unloading of large tires.
Details Images
The worm gear is made of bronze, so it have the characteristics for high density, anti-wear, anti-corrosion and long life in use.
The hydraulic pumping station is assembled by the imported subassemblys.
The movable console is easy to operate. It can be carried out from different perspectives, and to aviod misoperation.
The electrical cabintet in line with E-class protection standards.
