Quick Details
-
Model Number:
-
DH48S-2Z
-
Usage:
-
Protective
-
Voltage:
-
DC12V-48V AC24V-380V50HZ
-
Power expend:
-
DC1.0W AC1.0VA
-
Control output:
-
5A220VAC
-
Insulation Resistance:
-
DC500V 100MΩ
-
Dielectric Strength:
-
BCC1500VAC BOC1000VAC
Quick Details
-
Contact Load:
-
Low Power
-
Place of Origin:
-
Zhejiang, China, Zhejiang, China (Mainland)
-
Brand Name:
-
Trihero
-
Model Number:
-
DH48S-2Z
-
Usage:
-
Protective
-
Voltage:
-
DC12V-48V AC24V-380V50HZ
-
Power expend:
-
DC1.0W AC1.0VA
-
Control output:
-
5A220VAC
-
Insulation Resistance:
-
DC500V 100MΩ
-
Dielectric Strength:
-
BCC1500VAC BOC1000VAC

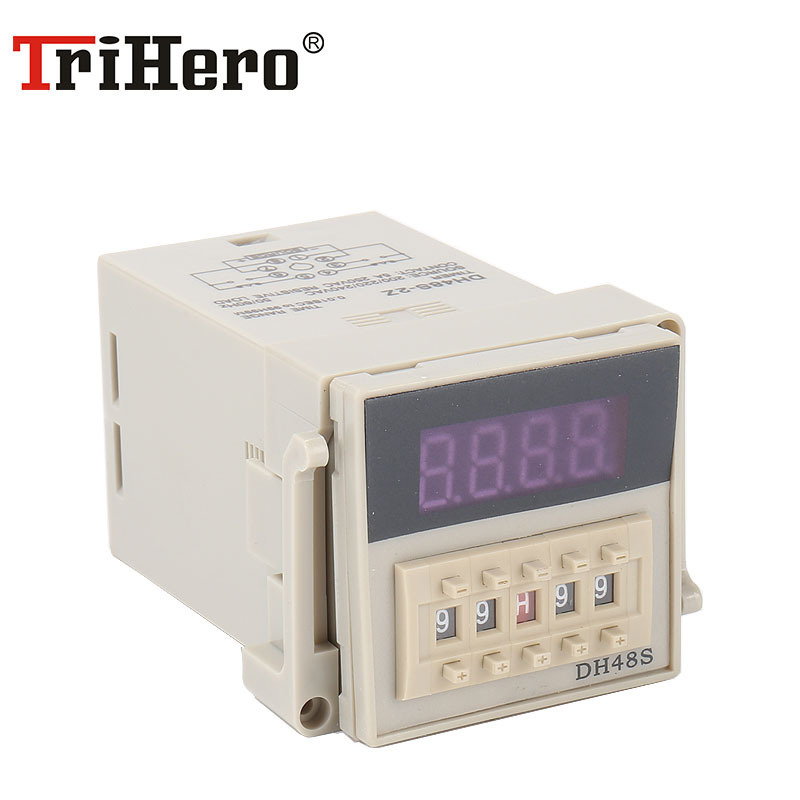

DH48S-S Time Delay Relay Digital Display Timer Programmable relay timer with Socket Base AC220V 110V DC24V 12V
DH48S-S digital display time relay is a kind of circular delay type time relay suitable for control circuit with operating supply voltage below and including 380V AC 50/60Hz or DC operating supply voltage of 220V, and it's made as time delay component to make or break circuit according to preset time. This product uses large integrated circuit as a processor and owns excellent EFT and ESD anti-interference performance.
| Model number | DH48S-S-1Z or DH48S-S-2Z |
| Supply voltage | 36, 110, 220 or 380 Vac, 50/60 Hz; 12Vac/Vdc, 24Vac/Vdc |
| Operating mode |
Setting examples:
00S01 mean 0.01s, 99M99 mean 99min99s, 99H99 mean 99h99min. The GATE contact can connect self-lock switch, the RESET contact can connect reset switch. DH48S-1Z: Set 05S25S, when power on, pass 5.25s, the relay switch on, and not switch off for the rest time. DH48S-2Z: Set 05S25S, when power on, pass 5.25s, the relay switch on, and not switch off for the rest time. DH48S-S: Set 05S05S, switch on for 5s, then switch off for 5s, then recycle. Set 00S-05S, switch on for 5s, then switch off for the reset time. |
| Tolerance | -15% ... 10% at AC and -10% ... 10% at DC of rated supply voltage |
| Power consumption | 2W max |
| Setting method | Dial switch |
| Indication method | 8-segment 4-digital display |
| External dimensions | 48x48x97.4 mm |
| Perforate dimensions | 45 1 0 x45 1 0 mm |
| Contact rating | 3A@250Vac, 5A@28Vdc |
| Repeat accuracy | ±0.3%, ±0.05 sec |
| Setting error | ±0.5%, ±0.05 sec |
| Termination | 8 pins |
| Mounting | Panel, din rail |
| Matched socket | PF083A, PF083A-E |
| Mechanical life | 1x10 6 |
| Electrical life | 1x10 5 |
| Operating temperature | 0 to 50 ℃ (32 to 122 ℉) |
| Operating humidity | 95% RH max, non-condensing |
Trihero is the leading manufacturer and exporter of Relays, sensors, controllers, and measuring instruments in China. We produce over 6,000 items which are marketed in over 100 countries, satisfying customer needs in various fields of industrial automation.
