Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
AD
-
Model Number:
-
35
-
Material:
-
stainless steel 304, 316 L, 321,, etc
-
Specifications:
-
DN10~DN300
-
Single wall thickness:
-
0.09~1.0
-
Temp:
-
-196~450
Quick Details
-
Technics:
-
hydroforming
-
Shape:
-
round
-
Head Code:
-
round
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
AD
-
Model Number:
-
35
-
Material:
-
stainless steel 304, 316 L, 321,, etc
-
Specifications:
-
DN10~DN300
-
Single wall thickness:
-
0.09~1.0
-
Temp:
-
-196~450

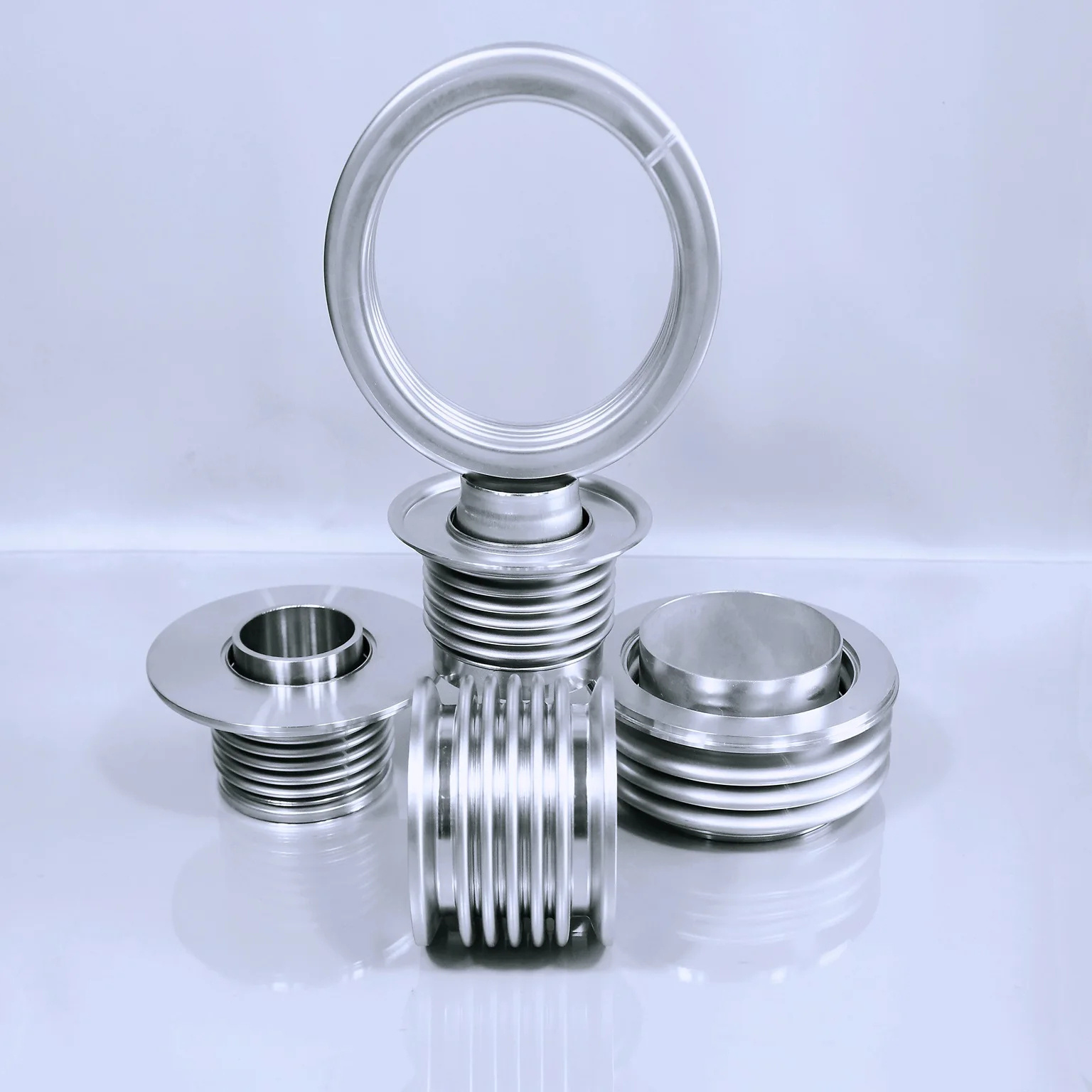

Our company is specialized in the production of corrugated metal bellows, the core team has nearly 30 years of bellow design and production experience, its design and craftsmanship take leading position in industry. Now it passed the certification of ISO9001:2008. we have all kinds of specification mold, material available; and we have a strong production capacity, delivery is prompt the company possess the stronger nonstandard design and mechanical capacity, we can produce nonstandard bellows weldment as your requirement.
Detailed product Description
The specific bellow parameters are as followings :( All data is record by electronic digital display caliper)
¤Normally (The scope of product specification )
Material: Stainless steel 304, 316L, 321,, etc
Specifications: DN10-DN300
Single wall thickness: 0.09-1.0(Can according to customer special requirement multilayer wall thickness)
Compression ratio: 10%-45 %( pressure: 0.25Mpa-25Mpa)
Temp:-196-450°C
Application display of bellows compensator (Detailed Product Description)
Detailed product Description
|
specifications |
I.D |
O.D |
Wall thickness |
Compression ratio |
Corrugated distance |
Existing material |
|
DN10 |
10 |
15 |
0.12 |
45 |
1.8 |
304 |
|
DN12 |
12 |
20 |
0.12 |
45 |
2 |
304 |
|
DN14 |
14 |
22 |
0.12 |
45 |
2.2 |
304 an d 316L |
|
DN15 |
15 |
23 |
0.15 |
45 |
2.2 |
316L |
|
DN16 |
16 |
25 |
0.15 |
45 |
2.3 |
304 |
|
DN18 |
18 |
28 |
0.12 |
45 |
2.6 |
304 |
|
0.15 |
316L |
|||||
|
DN22 |
22 |
32 |
0.15 |
45 |
3 |
304 an d 316L |
|
DN25 |
25 |
38 |
0.15 |
45 |
3 |
304 |
|
0.13 |
316L |
|||||
|
DN28 |
28 |
40 |
0.12 |
45 |
3.2 |
304 |
|
0.15 |
316L |
|||||
|
DN32 |
32 |
45 |
0.15 |
45 |
3.4 |
304 an d 316L |
|
DN35 |
35 |
50 |
0.15 |
45 |
3.5 |
304 an d 316L |
|
DN38 |
38 |
55 |
0.15 |
45 |
3.8 |
304 an d 316L |
|
DN40 |
40 |
60 |
0.2 |
45 |
3.8 |
304 |
|
DN42 |
42 |
60 |
0.15 |
45 |
4.4 |
304 |
|
DN45 |
45 |
65 |
0.15 |
45 |
4.5 |
304 |
|
DN48 |
48 |
66 |
0.2 |
45 |
4.5 |
316L |
|
DN50 |
50 |
70 |
0.2 |
45 |
5 |
304 an d 316L |
|
DN60 |
60 |
80 |
0.18 |
45 |
5.5 |
304 |
|
DN65 |
65 |
89 |
0.3 |
45 |
5.7 |
304 |
|
0.2 |
316L |
|||||
|
DN75 |
75 |
100 |
0.3 |
30 |
6 |
304 |
|
DN80 |
80 |
105 |
0.3 |
30 |
7 |
304 an d 316L |
|
DN90 |
90 |
115 |
0.3 |
30 |
6.5 |
304 |
