Quick Details
-
Dimension(L*W*H):
-
1.8*2.1*2.1m
-
Weight:
-
3 TON
-
Warranty:
-
1 Year
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
color:
-
blue, write, green and etc
-
Type:
-
rubber wristband moulding machine mobile cover making machine
-
Application:
-
rubber silicone products
-
use material:
-
rubber silicone bakelite
-
type:
-
automatic
-
heating:
-
electric heating
-
Control System:
-
Taiwan VIGOR
-
display:
-
Taiwan Weinview
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
India, Russia
-
Certification:
-
CE ISO9001
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Huacheng
-
Voltage:
-
380V/50HZ can custom
-
Dimension(L*W*H):
-
1.8*2.1*2.1m
-
Weight:
-
3 TON
-
Warranty:
-
1 Year
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
color:
-
blue, write, green and etc
-
Type:
-
rubber wristband moulding machine mobile cover making machine
-
Application:
-
rubber silicone products
-
use material:
-
rubber silicone bakelite
-
type:
-
automatic
-
heating:
-
electric heating
-
Control System:
-
Taiwan VIGOR
-
display:
-
Taiwan Weinview
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
India, Russia
-
Certification:
-
CE ISO9001
Product Description

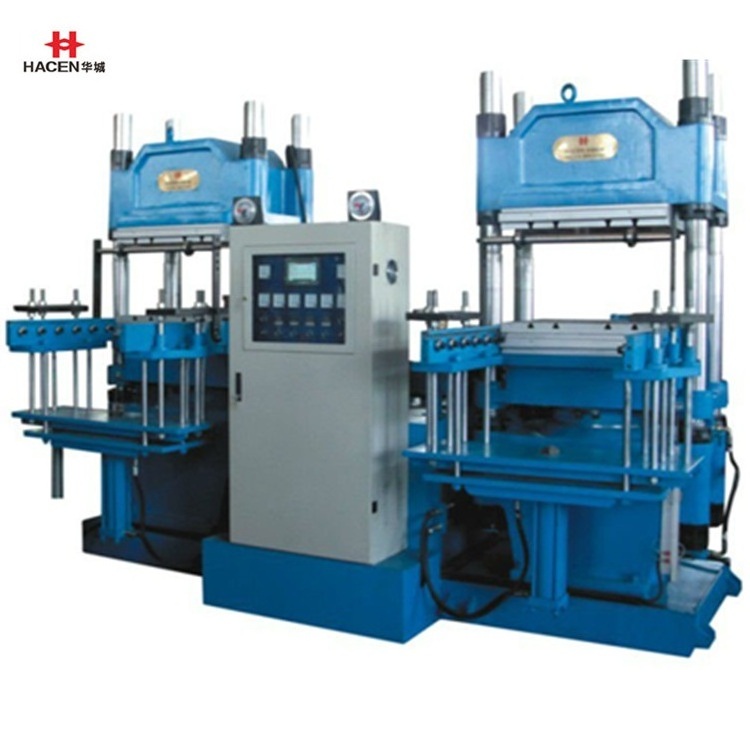

XLB-Y series rubber vulcanizing press machine apply to vulcanization molding of various rubber mold products and press molding of other thermosetting products.
Product Feature
◆Fast-open mold features high production efficiency and slow locking to protect the mold;
◆ Automatic move-in-and-out and ejecting units allows low labor intensity;
◆ Conventional valve and proportional valve are optional; advanced and rational oil-way configuration is energy saving;
◆ Electric system adopts PLC and touch screen man-machine interaction.
◆ 2RT/3RT/4RT for option;
◆ Single machine and double machine for option; Operated：
◆ Two choices fnr central mold-transfer and back toward mold-transfer
◆ Automatic move-in-and-out and ejecting units allows low labor intensity;
◆ Conventional valve and proportional valve are optional; advanced and rational oil-way configuration is energy saving;
◆ Electric system adopts PLC and touch screen man-machine interaction.
◆ 2RT/3RT/4RT for option;
◆ Single machine and double machine for option; Operated：
◆ Two choices fnr central mold-transfer and back toward mold-transfer
Detailed Images
Product Paramenters
|
Item
|
Unit
|
XLB-Y100
|
XLB-Y100B
|
XLB-Y100A
|
XLB-Y160
|
XLB-Y200
|
XLB-Y200
|
|
Mold-locking force
|
kn
|
1000
|
1000
|
1000
|
1600
|
2000
|
2000
|
|
Max. working pressure
|
Mpa
|
21
|
21
|
21
|
21
|
21
|
21
|
|
Clamp stroke
|
mm
|
300
|
300
|
300
|
300
|
250
|
250
|
|
Heat plate size
|
mm
|
420*420
|
450*450
|
500*500
|
520*540
|
520*540
|
600*600
|
|
Max. opening
|
mm
|
420
|
420
|
420
|
420
|
420
|
420
|
|
Motor power
|
Kw
|
4
|
4
|
4
|
5.5
|
5.5
|
5.5
|
|
Item
|
Unit
|
XLB-Y250
|
XLB-Y300
|
XLB-Y400A
|
XLB-Y400B
|
XLB-Y500
|
XLB-Y600
|
|
Mold-locking force
|
Kn
|
2500
|
3000
|
4000
|
4000
|
5000
|
6000
|
|
Max. working pressure
|
Mpa
|
21
|
21
|
21
|
21
|
21
|
21
|
|
Clamp stroke
|
mm
|
250
|
250
|
400
|
500
|
500
|
500
|
|
Heat plate size
|
mm
|
600*600
650*600
|
650*650
|
800*800
|
1000*1000
|
1000*
1000
|
1200
*1200
|
|
Max. opening
|
mm
|
420
|
420
|
700
|
700
|
700
|
800
|
|
Motor power
|
Kn
|
7.5
|
7.5
|
11
|
11
|
15
|
15
|
Recommend Products
Our Honor
Factory overview
FAQ
Q
: What’s requipments do you have?
A
: Our company specialized in Thermosetting material molding, manufacture rubber silicone molding machine, injection molding machine, vacuum press machine, transfer molding machyine, BMC injection molding machine, LSR injection molding machine.
Q
: How long has your company been established?
A
: Our company established in 1992.
Q
: What’s the warranty of your machine?
A
: About one year.
Q
: What’s the delivery time of your machine?
A
; 10-60 work days
Q
: Which countries have you exported?
A
: We have export to many ccountries, Russia, Ukraine, Turkey, Pakistan, South Afria, Egypt, Poland, Germany, Korea, USA, Brazil ,Peru, Mexico, Indonesia, India, Vietnam, Tailand...
Q
: How about the after-sale service?
A
: We provide them free training so that they can use and maintain the machine independently.
We will answer customer’s questions on technology in time. If needed, we will offer on-site guidance. We can provide free technical guidance if customers need new equipment.
Service
Pre-sale service:
We can provide the good technology and experience, to help the customer manufacture the good products and give the good suggestion.
In-sale service:
Detailed design of lay-out that is the position of procession.
Technological information of provided products.
Schedule about design, manufacturing and installation.
Working & producing progression
Training curse for the technician so that the installation is safe and standard.
After-sale service:
For customers buying our products, we provide them free training so that they can use and maintain the machine independently.
We can provide the good technology and experience, to help the customer manufacture the good products and give the good suggestion.
In-sale service:
Detailed design of lay-out that is the position of procession.
Technological information of provided products.
Schedule about design, manufacturing and installation.
Working & producing progression
Training curse for the technician so that the installation is safe and standard.
After-sale service:
For customers buying our products, we provide them free training so that they can use and maintain the machine independently.
