Quick Details
-
Light Source:
-
LED
-
Input Voltage(V):
-
85-265V/DC12V/DC24V
-
Lamp Luminous Flux(lm):
-
80
-
CRI (Ra):
-
70
-
Beam Angle(°):
-
360 horizontal beam angle
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
OEM
-
Serie:
-
Factory Quality Aviation Beacon LED Tower Obstruction Light
-
LED lifetime:
-
50,000 hrs
-
Horizontal divergence:
-
360°
-
Visual distance:
-
>3.6Km (AT=0.85)
-
Luminous intensity:
-
>10cd
-
light source:
-
LED
-
International standard:
-
ICAO Low Intensity
-
Application:
-
Tower, Building...
-
Keywords:
-
obstruction light
Quick Details
-
Warranty(Year):
-
3-Year
-
Color Temperature(CCT):
-
Blue, green,red,white
-
Lamp Body Material:
-
Aluminum Alloy
-
Light Source:
-
LED
-
Input Voltage(V):
-
85-265V/DC12V/DC24V
-
Lamp Luminous Flux(lm):
-
80
-
CRI (Ra):
-
70
-
Beam Angle(°):
-
360 horizontal beam angle
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
OEM
-
Serie:
-
Factory Quality Aviation Beacon LED Tower Obstruction Light
-
LED lifetime:
-
50,000 hrs
-
Horizontal divergence:
-
360°
-
Visual distance:
-
>3.6Km (AT=0.85)
-
Luminous intensity:
-
>10cd
-
light source:
-
LED
-
International standard:
-
ICAO Low Intensity
-
Application:
-
Tower, Building...
-
Keywords:
-
obstruction light

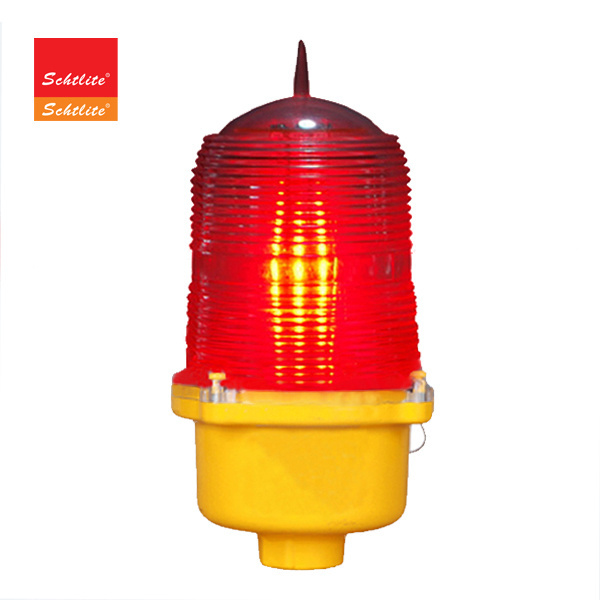

SHEILD is the name for the aviation obstruction light still made of PC diffuser,
It is featured:
1. flashing fuction optional as your favor to be switched on or off by yourselves during installation.
2. photosensor switched on or off too as your like.
3. Candela 10CD or 32CD Type A or Type B optional as ordering .
G3/4″ mounted type designed for pipe installation. Die casting aluminium body and prismatic anti-shock PC diffuser.
Outlook color yellow as its standard.
|
Beam 360 degree side |
|
|||||||
|
Item No. |
Series |
Lamp |
Type |
Power |
Driver |
Candela |
Votage |
|
|
OBS5137SHD/PC10 |
SHEILD.S |
LED |
OSRAM |
3W |
included |
10CD |
100-240V 12V/24V |
|
|
OBS5137SHD/PC32 |
SHEILD.S |
LED |
OSRAM |
3W |
included |
32CD |
100-240V 12V/24V |
|
|
|
|
Body size-mm |
Carton size-cm |
|||||
|
Item No. |
Series |
A |
B |
C |
L |
W |
H |
Q'ty/CTN |
|
OBS5137SHD/PC10 |
SHEILD.S 1 |
137 |
137 |
218 |
41 |
38 |
59 |
8 |
|
OBS5137SHD/PC32 |
SHEILD.S 1 |
137 |
137 |
218 |
41 |
38 |
59 |
8 |
